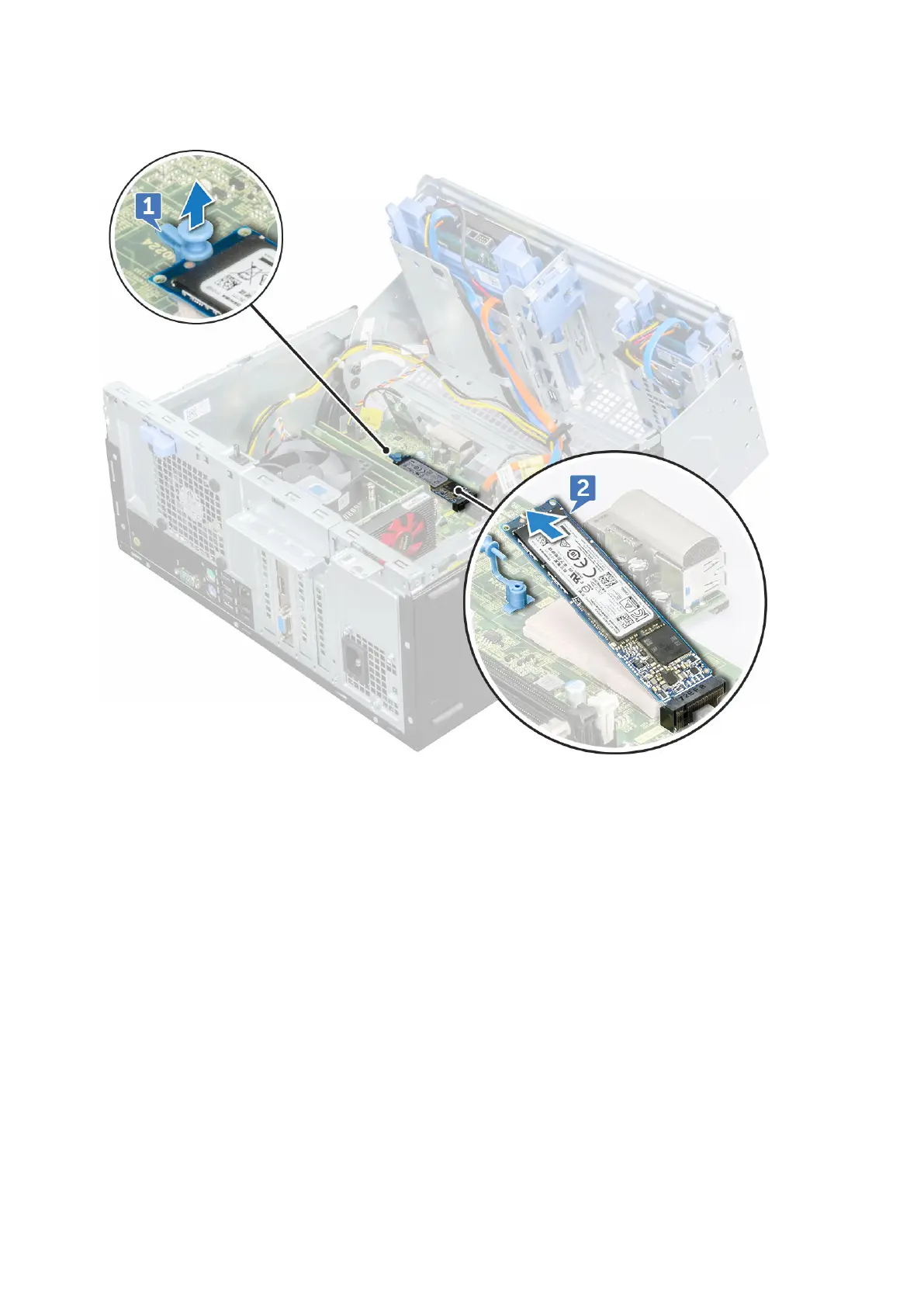

a. Pull the blue plastic tab that secures the M.2 PCIe SSD to the system board [1].
b. Slide the M.2 PCIe SSD from the connector on the system board [2].
Installing optional M.2 PCIe SSD
1. Insert the M.2 PCIe SSD to the connector.
2. Press the blue plastic tab to secure the M.2 PCIe SSD.
3. Close the front panel door.
4. Install the:
a. Front bezel
b. Side Cover
5. Follow the procedure in After working inside your computer.
SD card
Removing SD card reader
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. Side Cover
b. Front bezel
Field service information
31
