Dell OptiPlex 5050 Small Form Factor User Manual

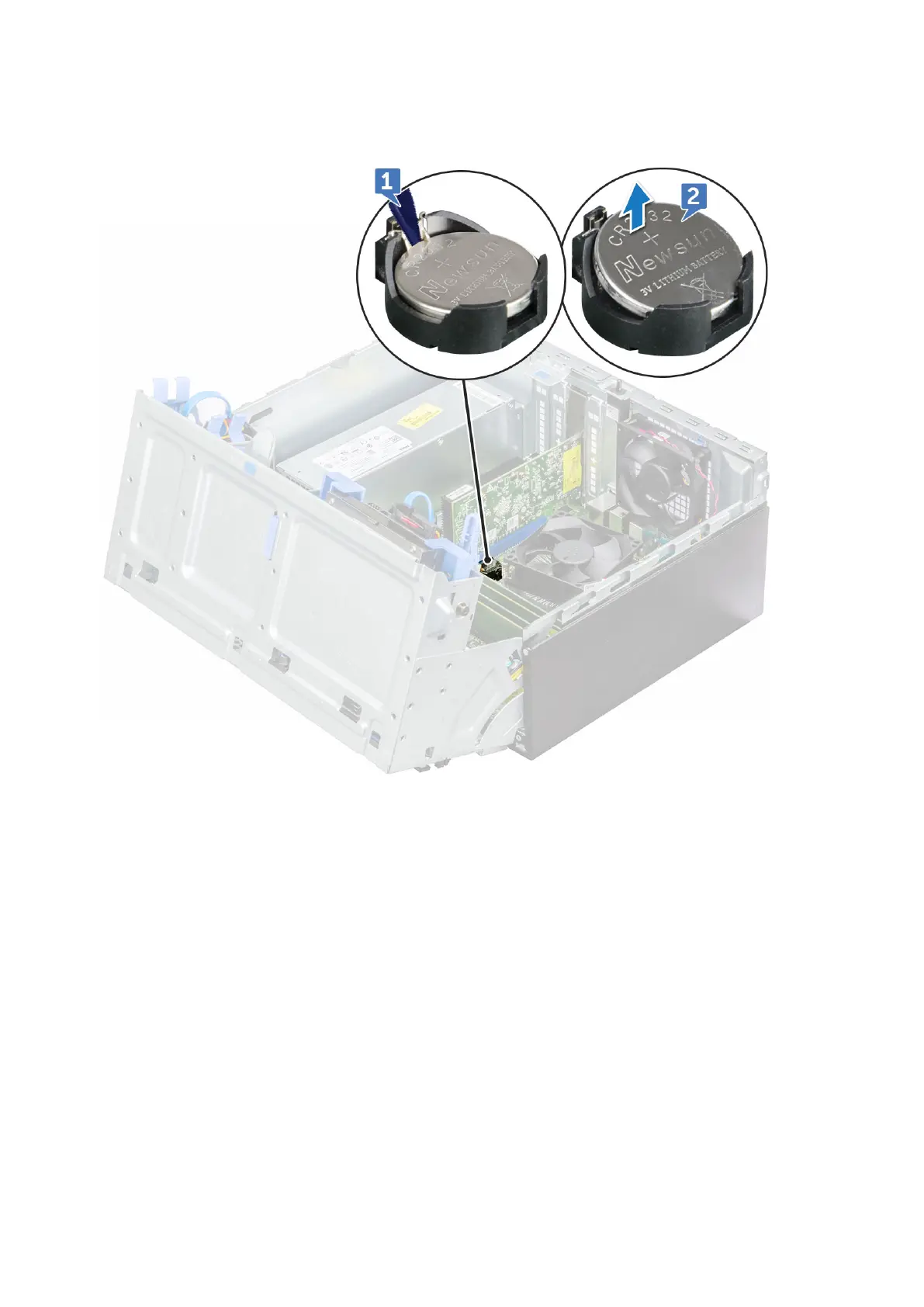

4. To remove the coin cell battery:
a. Using a plastic scribe press the release latch until the coin cell battery pops out [1].
b. Remove the coin cell battery from the connector on the system board [2].
Installing coin cell battery
1. Hold the coin cell battery with the "+" sign facing up and slide it under the securing tabs at the positive side of the
connector.
2. Press the battery into the connector until it locks into place.
3. Close the front panel door.
4. Install the:
a. Expansion card
b. Front bezel
c. Side Cover
5. Follow the procedure in After working inside your computer.
Heat sink assembly
Removing heat sink assembly
1. Follow the procedure in Before working inside your computer.
42
Field service information
