Dell OptiPlex 5050 Small Form Factor User Manual

Power switch
Removing power switch
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. Side Cover
b. Front bezel
3. Open the Front panel door.

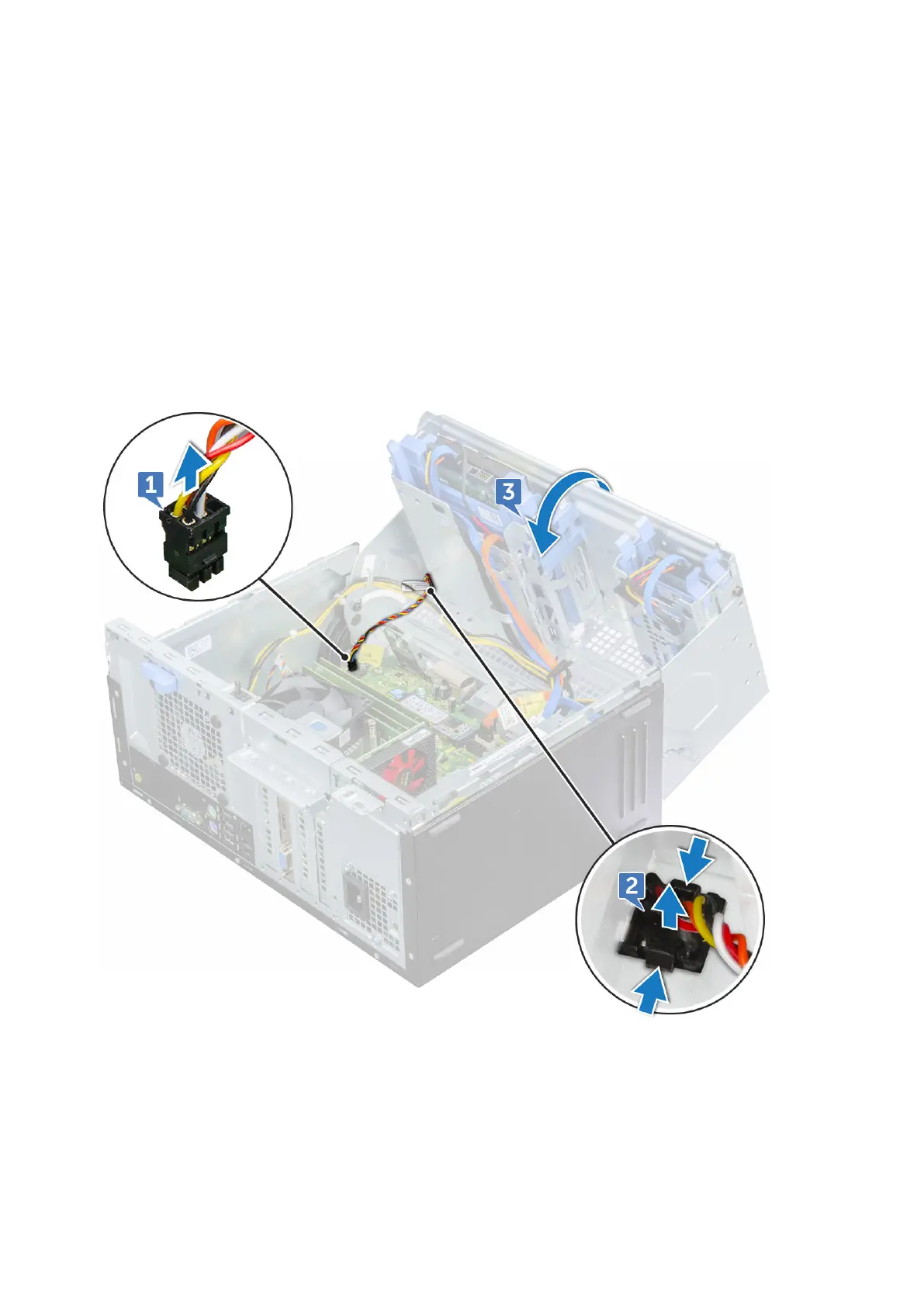

4. To release the power switch:
a. Disconnect the power switch cable from the system board [1].
b. By using plastic scribe remove the power switch cable through the retention clip [2].
c. Press the release tabs using a plastic scribe and slide the power switch out from the front of the computer [3].
d. Close the front panel door [4].
5. Pull the power switch out from the computer.
38
