Power supply unit
Removing power supply unit – PSU
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. Side Cover
b. Front bezel
3. Open the Front panel door.
4. To release the PSU:

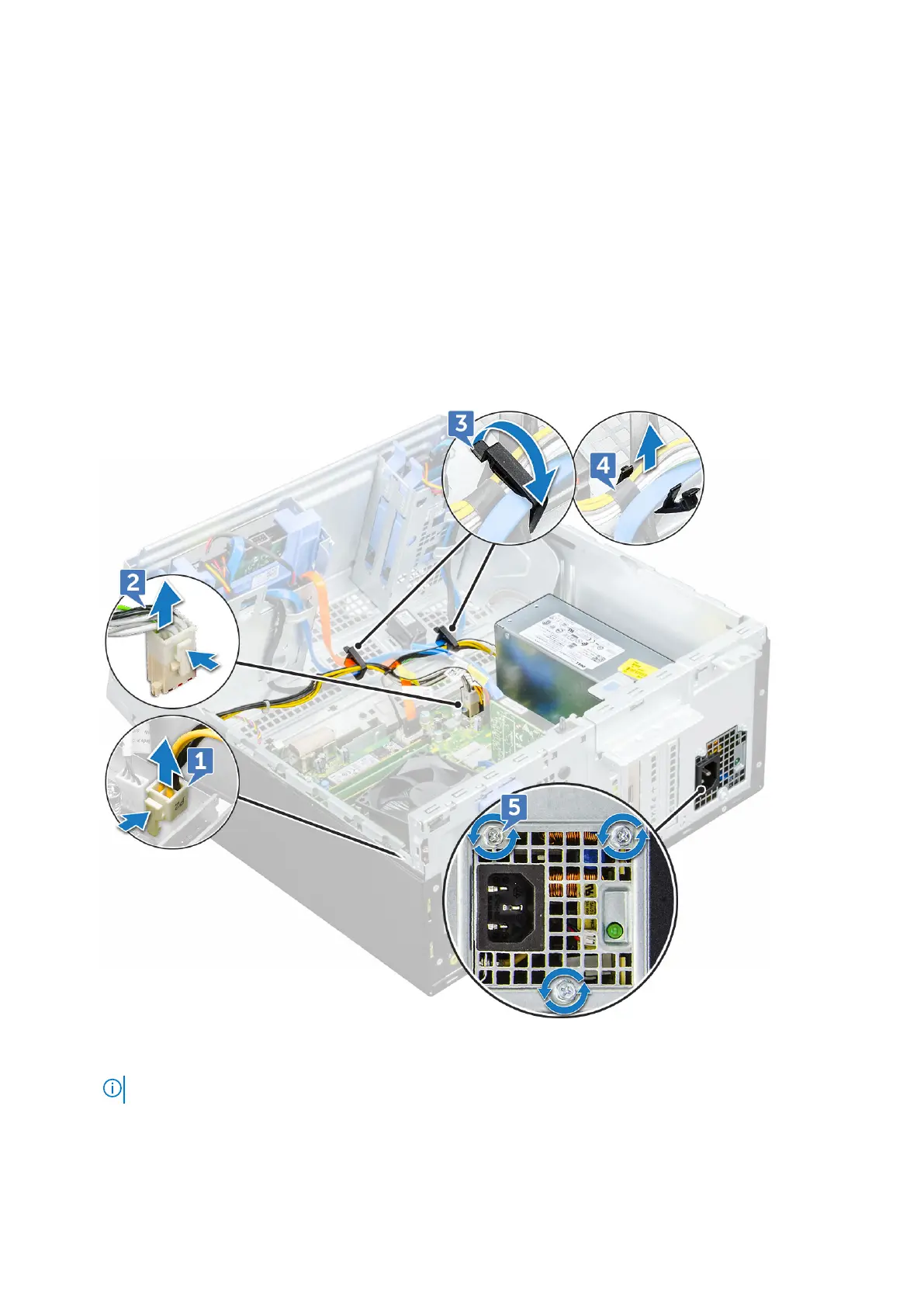

a. Disconnect the PSU cables from the connectors on the system board [1, 2].
b. Pull the clips to release the cables from the cable holders [3].
c. Un-route the PSU cables from the cable holders [4].
d. Remove the screws( 6+/-1) that secure the PSU to the computer [5].
5. To remove the PSU:
a. Press the release tab [1].
NOTE: Release tab is at the base of the PSU
b. Slide and lift the PSU away from the computer [2].
