To configure PVLANs:
1
Click Switching > VLAN > Private VLAN in the tree view to display the
Private VLAN: Summary page.

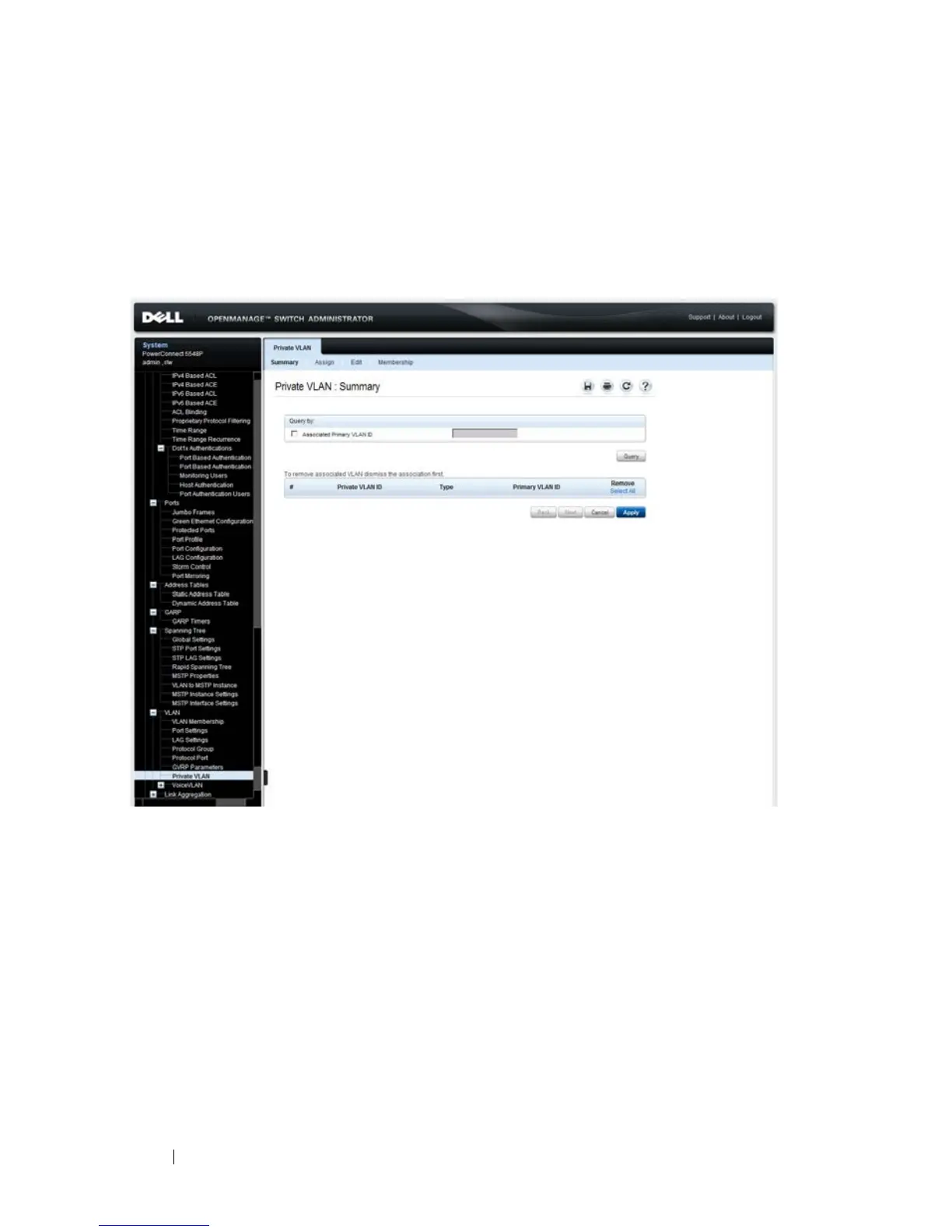

Figure 14-8. Private VLAN: Summary
The previously-defined private VLANs are displayed.
2 To query by Associated Primary VLAN ID , check that field, enter a VLAN
ID, and click
Query . The associated VLANs are displayed.
3 To define a private VLAN, click Assign, and enter the fields:
–
Private VLAN ID — Select a VLAN to be assigned.
–
Private VLAN Type — Select one of the possible options:
•
Primary — Traffic from promiscuous ports flow through this type
of VLAN. This is for the internet or shared servers.
•
Isolated —Traffic from isolated ports flow through this type of
VLAN.
