Dell PowerConnect 55xx Systems User Guide 617
FILE LOCATION: C:\Users\gina\Desktop\Checkout_new\Maintenance Projects\Dell
Contax\CxUGStatistics.fm
DELL CONFIDENTIAL – PRELIMINARY 9/11/12 - FOR PROOF ONLY
Etherlike Statistics
To display interface error statistics:
1
Click Statistics/RMON > Table Views > Etherlike Statistics in the tree
view to display the
Etherlike Statistics page.

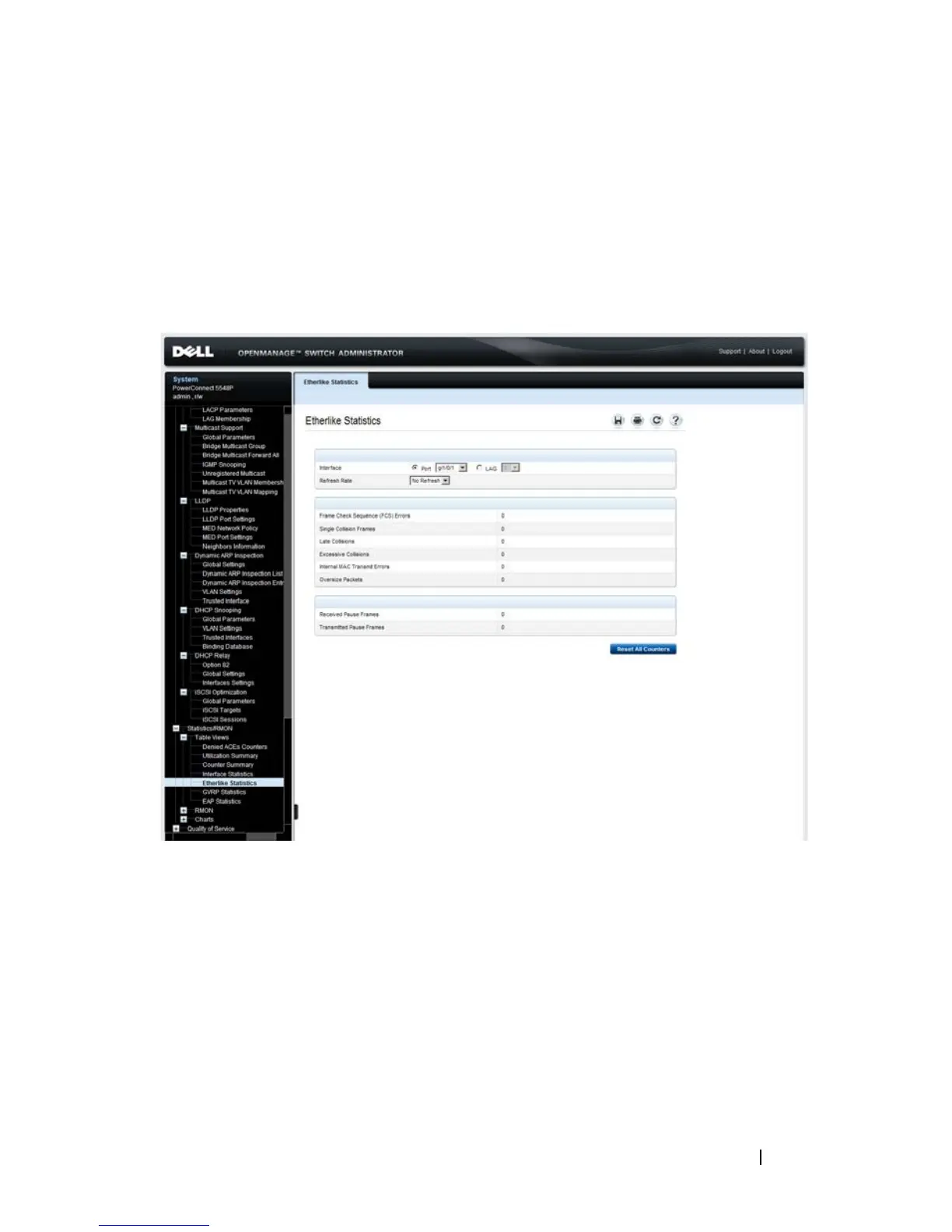

Figure 21-5. Etherlike Statistics
2 Select a port/LAG.
The following fields are displayed:
–
Frame Check Sequence (FCS) Errors — Number of frames received
that are an integral number of octets in length but do not pass the
FCS check.
–
Single Collision Frames — Number of frames that are involved in a
single collision, and are subsequently transmitted successfully.
–
Late Collisions — Number of collisions detected after the first 512
bits of data.
