Dell PowerEdge XR4000r User Manual

Table 11. PSU specifications (continued)
PSU Class Heat
dissipation
(maximum
) (BTU/hr)
Frequency
(Hz)
Voltage AC DC Current (A)
High line
200–240 V
Low line
100–120 V
5250 BTU/
hr
NA
240 V DC NA NA 1400 W 6.6 A
1100 W
Mixed
Mode
Titaniu
m
4265 BTU/
hr
50/60 Hz
100 - 240 V
AC
NA NA NA 12 A - 6 A
4265 BTU/
hr
NA
240 V DC NA NA 1100 W 5.2 A
1100 W
DC
NA 4265 BTU/
hr
NA
-48 - ( -60) V NA NA 1100 W 27 A
NOTE: This system is also designed to connect to the IT power systems with a phase-to-phase voltage not exceeding 240
V.
NOTE: Heat dissipation is calculated using the PSU wattage rating.
NOTE: When selecting or upgrading the system configuration, to ensure optimum power utilization, verify the system
power consumption with the Enterprise Infrastructure Planning Tool available at Dell.com/calc.
Power module assembly
The Dell PowerEdge XR4000r a power module assembly which consists of two power distribution board (PDB's) and are
connected to each other so either or both power supplies can power the whole chassis. The power distribution board (PDB) at
the bottom also has chassis manager board to manage the chassis and the optional witness sled. The witness sled fan module is
mounted on the PDB which helps in cooling the witness sled. It also has two power interpose board (PIB) which provide power
to the sleds.

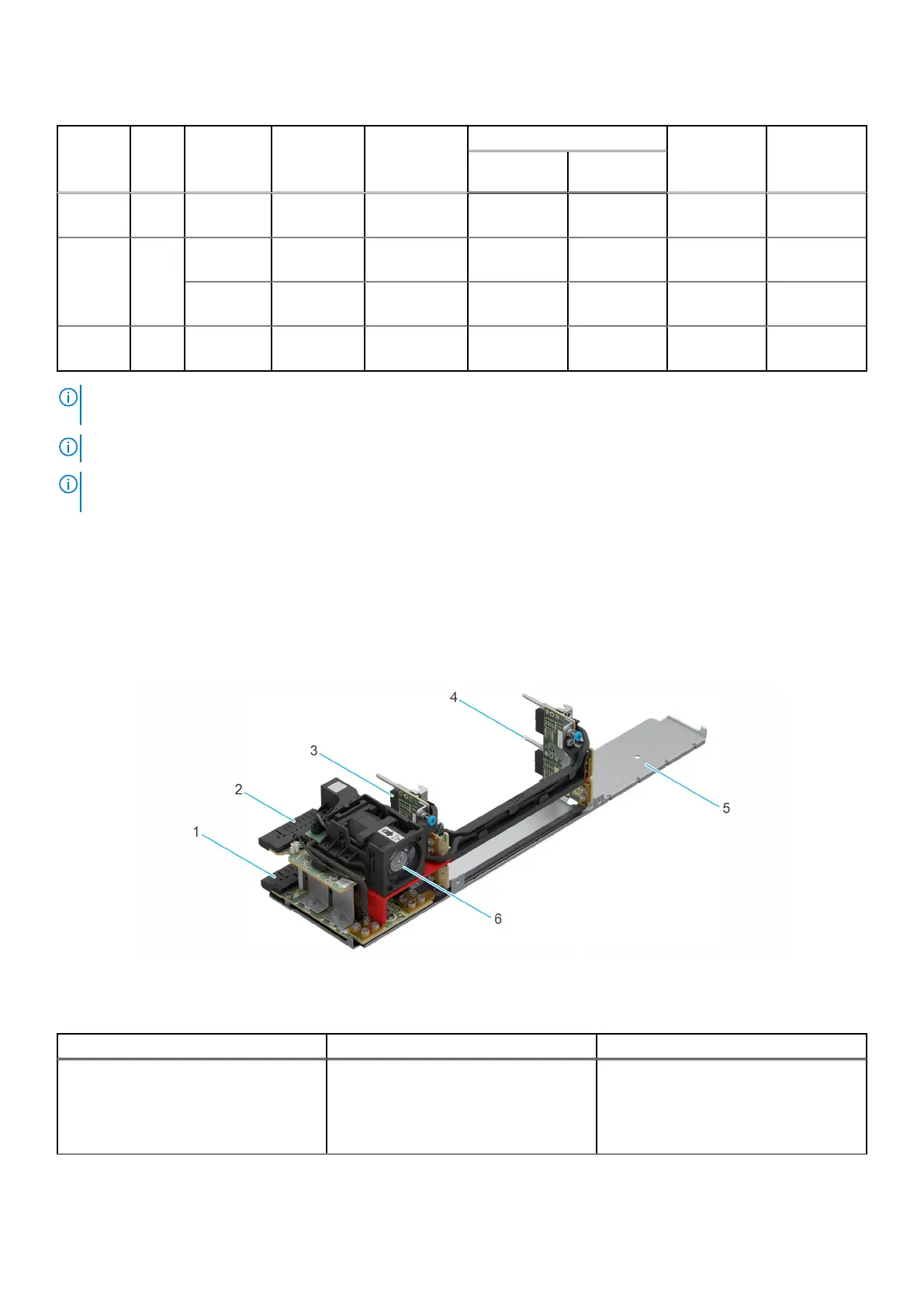

Figure 10. Power module assembly specificstions
Table 12. Power module assembly
Item Component Description
1 Power distribution board 2/ Chassis
Manager (PDB2/CM)
This is the power distribution board
which provides power to the chassis
components. The PSU 2 slot is located
on the PDB 2. Chassis Manager (CM) is
also integrated on this board.
Technical specifications 15
