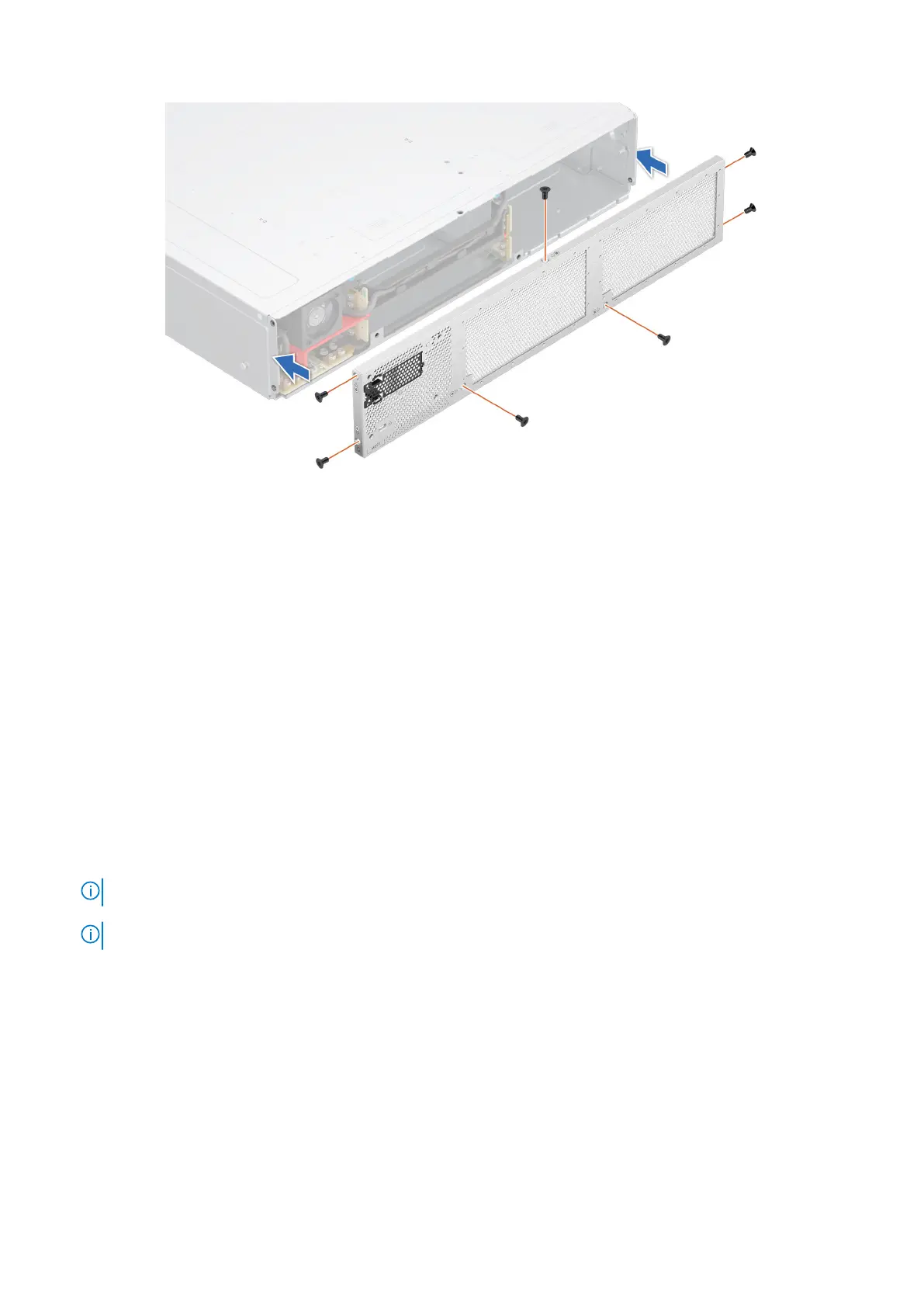

Figure 23. Installing the rear cover
Power module assembly
Removing power module assembly
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Remove the rear cover.
3. Remove the sleds.
4. Remove the witness sled.
5. Remove the power supply units.
Steps
1. Using a Phillips 2 screwdriver, loosen the two captive screws.
2. Pull the power tray along with the power module assembly (PDB) from the chassis.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.
NOTE: Support the power tray with both hands while sliding it out of the chassis.
Installing and removing system components 35
