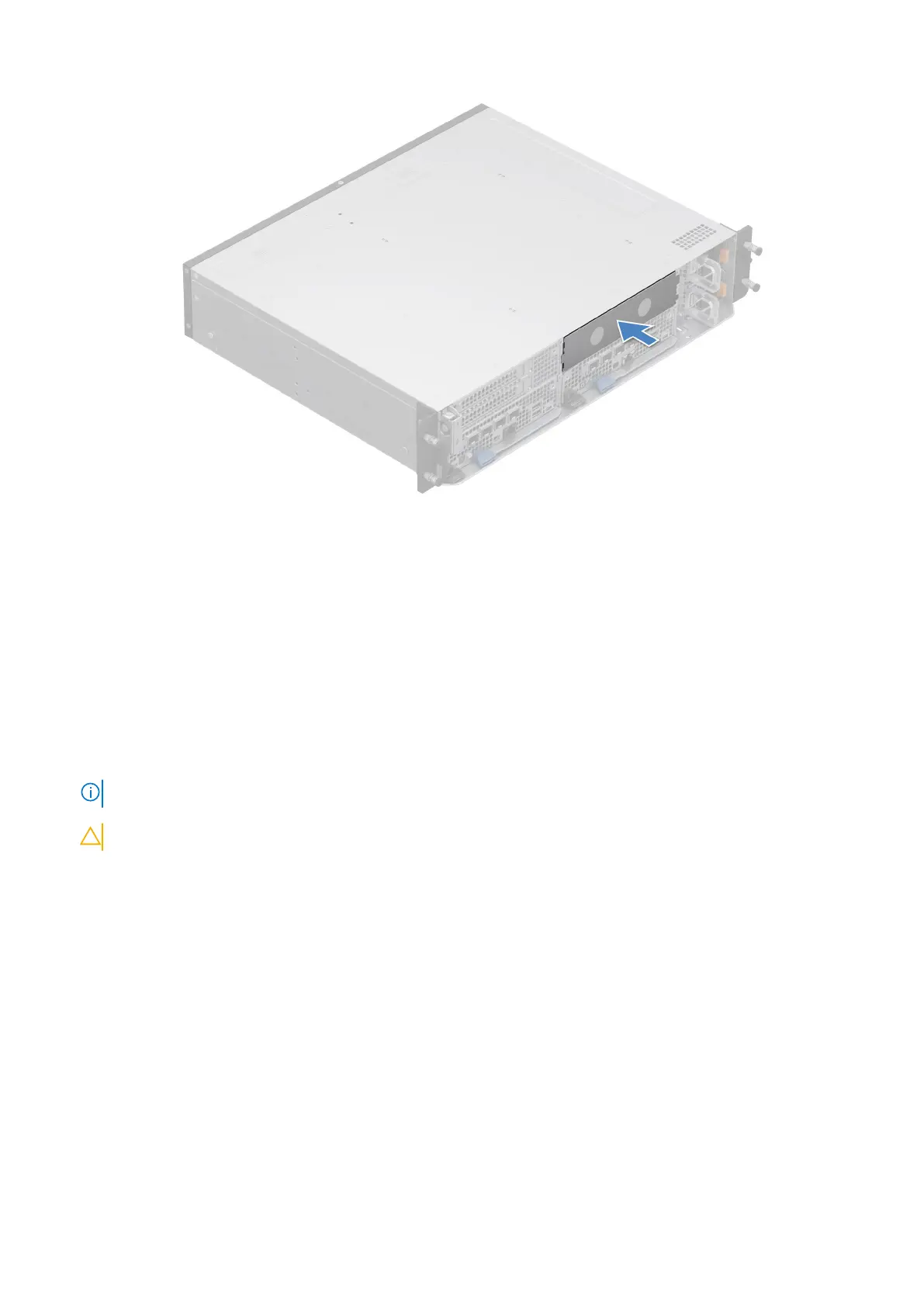

Figure 17. Installing a sled blank
Removing a sled
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Remove the front bezel, if applicable.
Steps
1. Pull the blue lever on the sled to release the sled handle.
2. Holding the sled handle, slide the sled out of the enclosure.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.
CAUTION: Support the system with both hands while sliding it out of the enclosure.
Installing and removing system components 31
