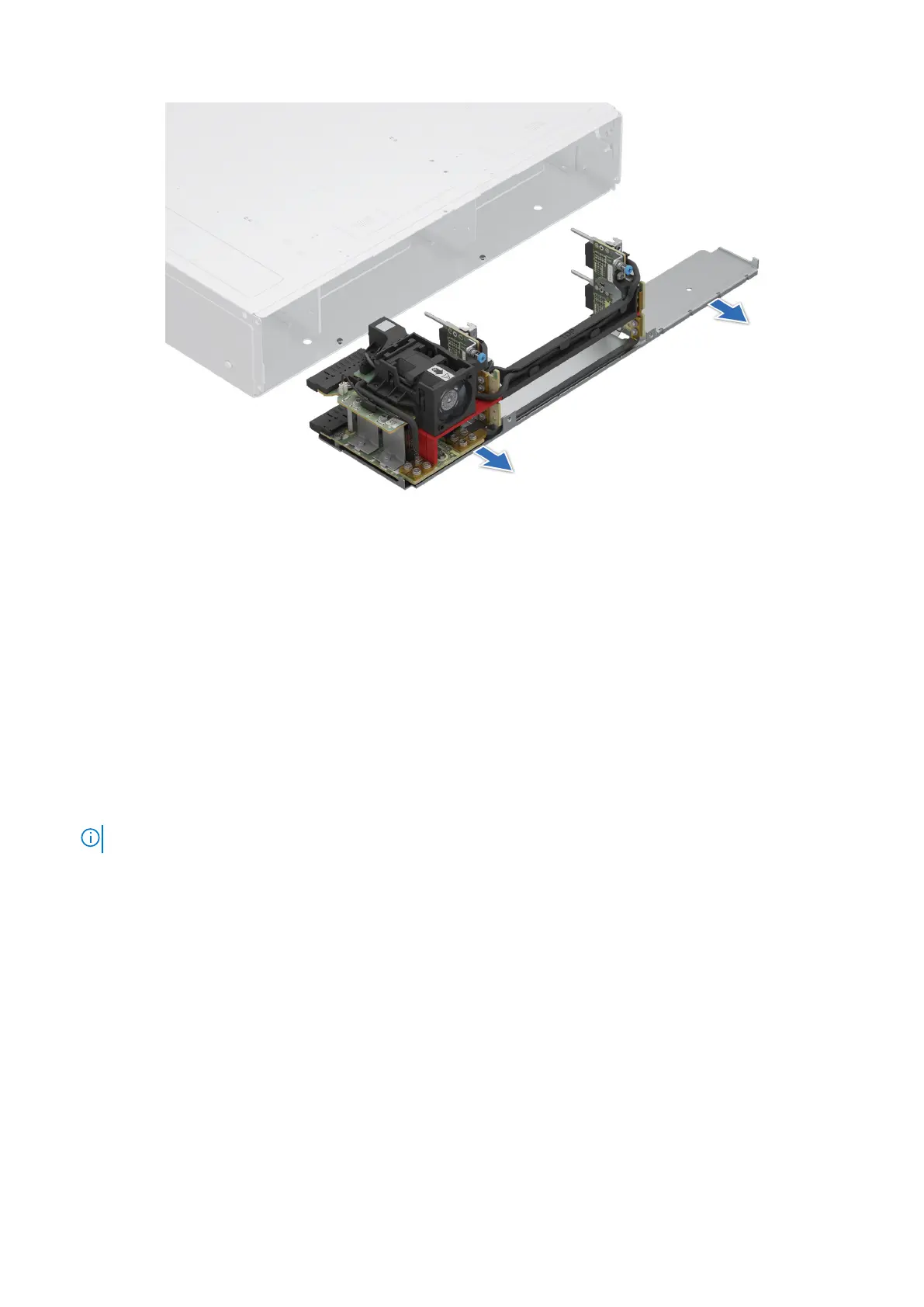

Figure 24. Removing power module assembly
Next steps
Replace power module assembly.
Installing the power module assembly
Prerequisites
Follow the safety guidelines listed in the Safety instructions.
Steps
1. Align and insert the power tray along with the power module assembly (PDB) into the chassis.
2. Using the Phillips 2 screwdriver, tighten the two captive screws to secure power tray in to the rear of the chassis.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.
36 Installing and removing system components
