Delta AS00SCM-A User Manual

Chapter 6 Temperature Measurement Module AS04/06RTD
6- 5
6_
Number Name Description
OFF: the module is operating normally.
Blink: a minor error exists in the module.
Analog-to-Digital
Conversion
Indicator
Conversion status
Blinking: conversion is in process.
OFF: conversion has stopped.
3
Removable
Terminal Block
The inputs are connected to transducers.
The outputs are connected to loads to be driven.
4
Arrangement of the
Input/Output
Yerminals
Arrangement of the terminals
5 Clip For removing the terminal block
6 DIN Rail Clip Secures the module onto the DIN rail
7
Module Connecting
Set
Connects the modules
8 Ground Clip

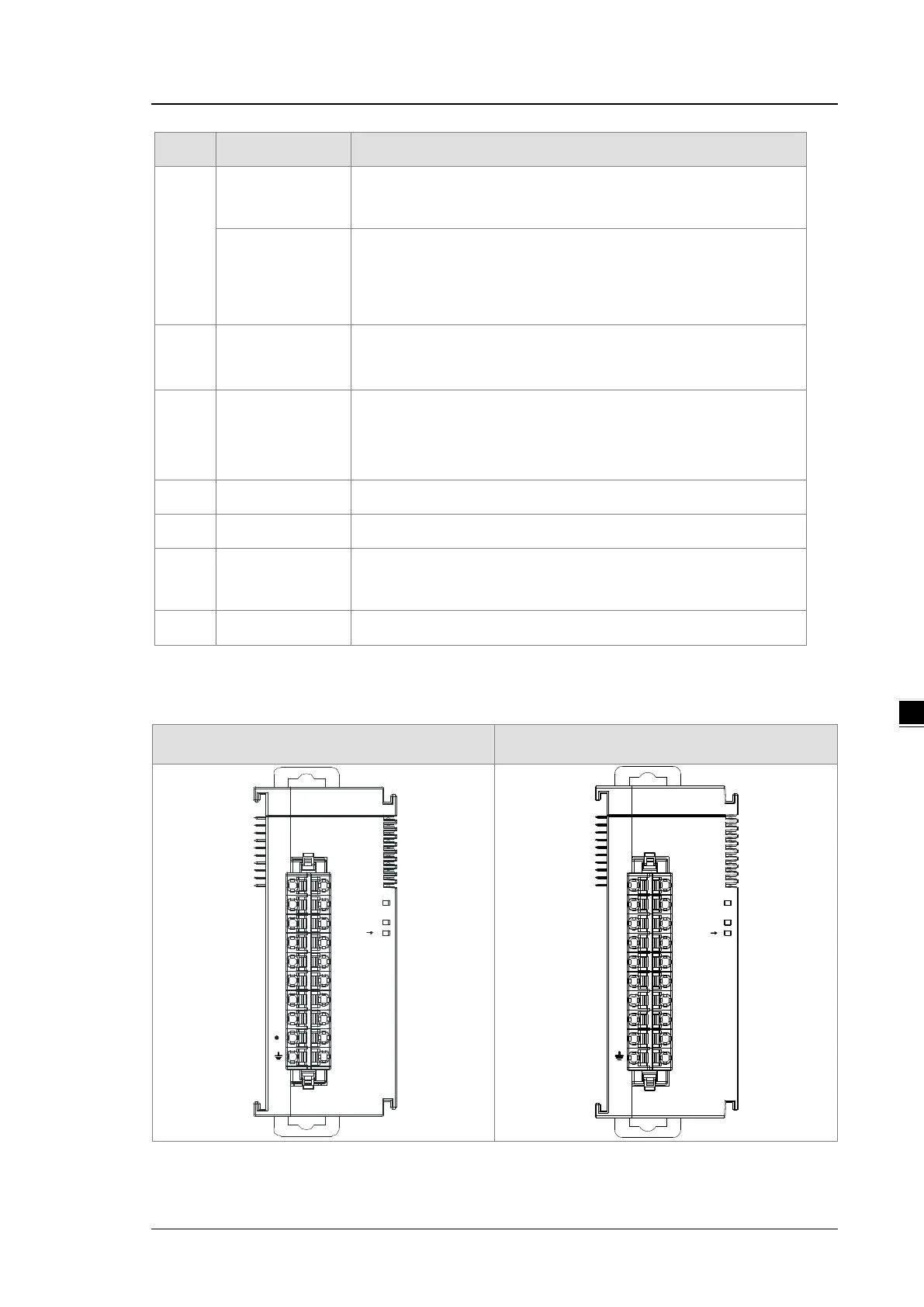

6.2.3 Arrangement of Terminals
AS04RTD-A AS06RTD-A
L1+ L1-
S LD I4-
0V
24V
L2+
S LD
S LD
L4+
L3+
S LD I3
-
L4-
L3-
I2-
I1-
L2-
0 4R TD
PWR
ERR
A D
P WR
A D
E RR
06RTD
SLD
I 56-
L6+
L5+
L4+
L3+
SLD
L2+
L1+
L6-
L5-
I34-
L4-
0V
24V
L3-
I12 -
L2-
L1
-
