Denon AVR-1513 Service Manual

74
C2017
C2021
C2018
C2013
C2014
C2009
C2001
C2003
C2004
C2005
C2006
C2007
C2008
CN201
R2002
R2003
R2004
R2005
R2006
R2007 R2008
R2001
D2005
D2007
D2001 D2002
D2003 D2004
D2009
IC203
IC201 IC202
D2008
D2006
R2038
C2002
CN202
J2021
J2019
J2007
J2010
J2001
J2014
J2023
J2015
J2022
J2017
J2003
J2005
J2016
J2004
J2008
J2002
J2012
J2018
J2011
J2009
J2024
J2026
J2013
J2025
J2020
KIA278R05PI
NJM7812FA NJM7912FA
CUP12424Z_A
REGULATOR PART

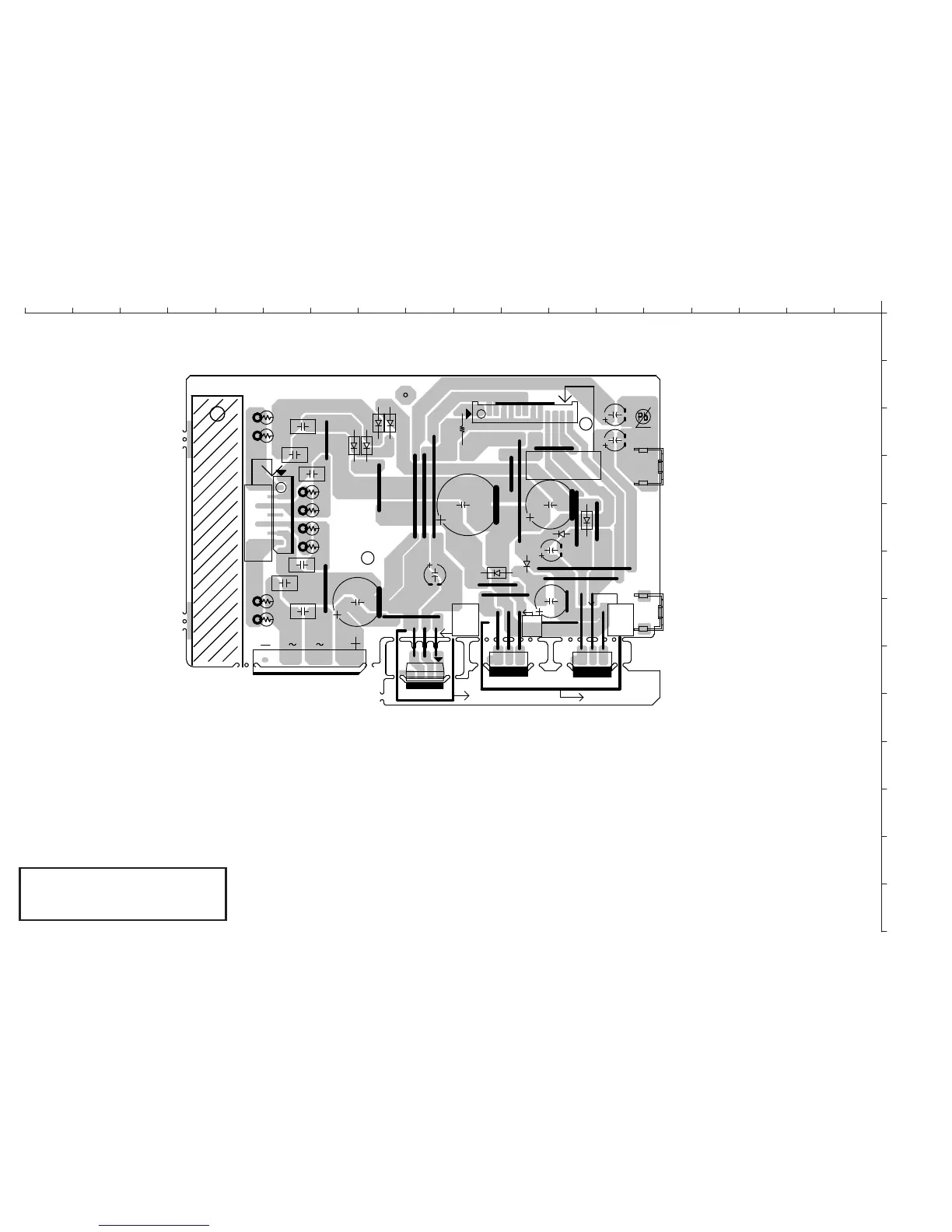

POWER PCB
LUG21
B'D NO CUT B'D CUT ONLY
BOTTOM SIDE
BOTTOM SIDE
BOTTOM SIDE
BRACKET
3 .-12V 2 .IN
1 .GND
3 .+12V
1 .IN
2 .GND
2 .+5V 3 .GND
1 .IN
BK205
BK204
BK203
CUP12424Z-2
7.S3_AC
6.DGND
5.S3_AC
4.N.C
3.S2_AC
2.S2_GND
1.S2_AC
13.+12V 12.RLY_GND
11.PRE_GND 10.-12V
9.DGND 8.DGND 7.+5VD 6.+5VD 5.DGND 4.DGND 3.+5VH 2.+5VH
1.VGND
REGULATOR
(COMPONENT SIDE)
181716151413121110987654321
M
L
K
J
I
H
G
F
E
D
C
B
A
鉛フリー半田
半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。
Lead-free Solder
When soldering, use the Lead-free Solder (Sn-Ag-Cu).

Denon AVR-1513 Specifications

General

Receiver type	-
Audio output channels	5.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Power output per channel (1KHz@6 Ohm)	110 W
Power output per channel (20-20KHz@8 Ohm)	75 W
HDMI in	4
Composite video in	2
Digital audio optical in	1
Connectivity technology	Wired
Ethernet LAN	No
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Radio Data System (RDS)	Yes
Preset stations quantity	56
Supported video modes	1080p, 720p
Analog signal format system	NTSC, PAL
Display	LCD
Product color	Black
Audio decoders	Dolby Pro Logic II, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS-HD
Apple docking compatibility	Not supported
Graphical user interface (GUI) language	English
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	319 mm
Width	434 mm
Height	151 mm
Weight	7800 g
