Denon AVR-2106 Operating Instructions

ENGLISH
ENGLISH
Easy Setup and Operation Easy Setup and Operation
10

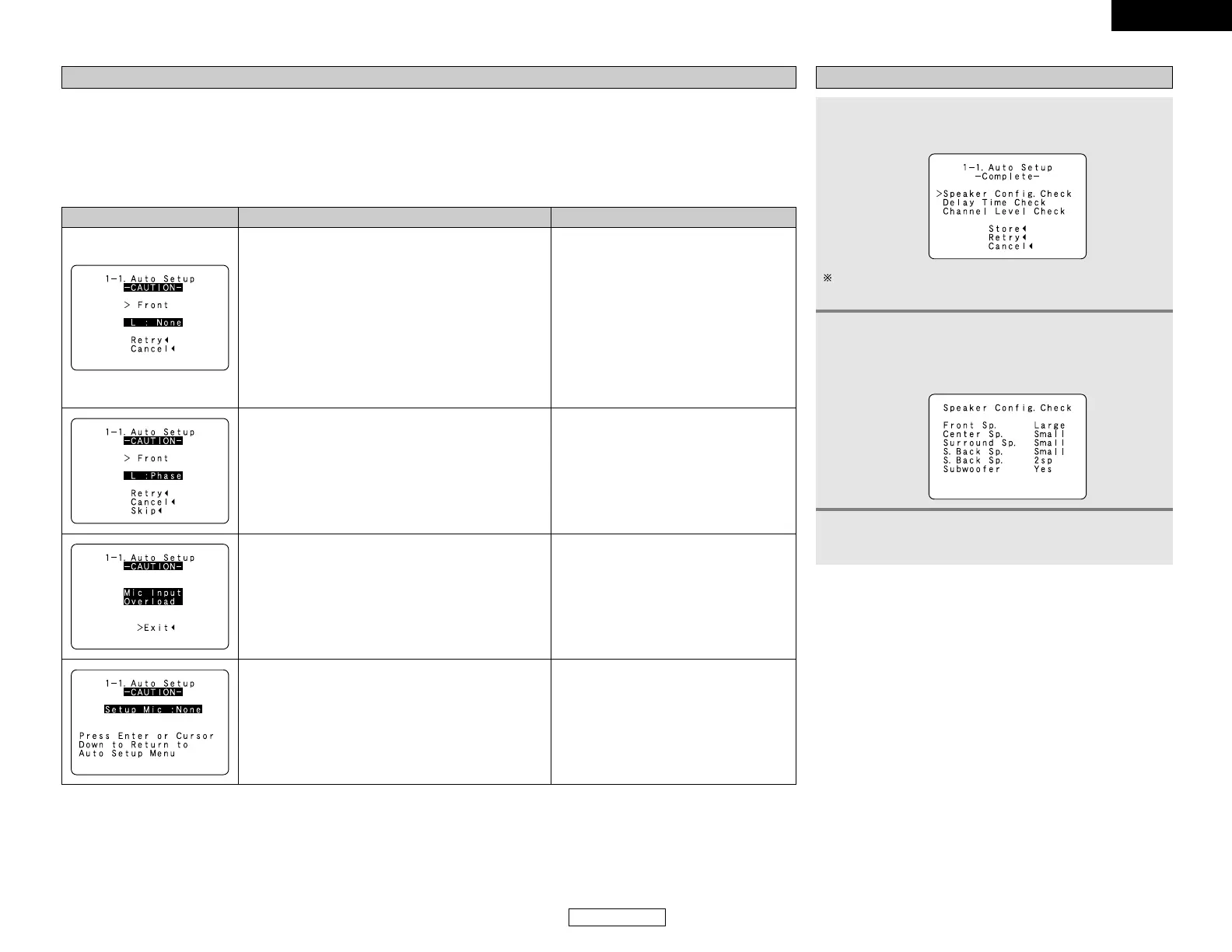

About error messages
• These error screens may be displayed when performing Auto Setup measurement and the automatic measurements can not be
completed because of the speaker arrangement, measurement environment, or other factors. Please check the following matters,
reset the pertinent items, and measure again.
• When there is too much noise in the room, the speakers may not be detected properly. Should this happen, perform the
measurements when the noise level is low, or switch off the power of the equipment that is producing the noise for the duration
of the measurements.
MeasuresCauseScreen example
q This screen will be displayed when the speakers
required for producing suitable reproduction have
not been detected.
• The front L or front R speaker was not properly
detected.
• Only one channel of the surround speakers was
detected.
• Sound was output from the R channel when only
one surround back speaker was connected.
• The surround back speaker was detected, but the
surround speaker was not detected.
• Check that the pertinent speakers are
properly connected.
w This screen will be displayed when the speaker
polarity is connected in reverse.
• Check the polarity of the pertinent
speakers. For some speakers, this
screen may be displayed even though
the speakers are properly connected. If
so, select “Skip
0 ”.
e This screen will be displayed when accurate
measurements cannot be made due to the input
level of the microphone being too high.
• Set up the speakers so that their position
is farther away from the listening
position.
• Lower the volume of the subwoofer
speaker.
r This screen will be displayed when the
measurement microphone is not connected.
• Connect the measurement microphone
to the microphone connector.
Check of the measurement results
1
Press the CURSOR
DD
or
HH
button to select an
item, then press the ENTER button.
2
Press the ENTER button.
• The verification screen appears.
Example: Speaker Config. Check
3
Press the ENTER button again once you have
checked the results.
The measurement results of each item can be checked
here.

Denon AVR-2106 Specifications

Audio Specifications

front rated output	90 W + 90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
center rated output	90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
surround rated output	90 W + 90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
surround back rated output	90 W + 90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
dynamic power	120 W x 2 ch (8 Ω/ohms)
analog input sensitivity	200 mV / 47 kΩ/kohms
frequency response	10 Hz ~ 100 kHz: +1, –3 dB (DIRECT mode)
analog distortion	0.008 % (20 Hz ~ 20 kHz) (DIRECT mode)
phono input sensitivity	2.5 mV
phono RIAA deviation	±1 dB (20 Hz to 20 kHz)
phono S/N	74 dB (A weighting, with 5 mV input)
phono rated output	150 mV / 7 V
phono distortion factor	0.03 % (1 kHz, 3 V)

Video Specifications

standard video input/output level	1 Vp-p, 75 Ω/ohms
standard video frequency response	5 Hz ~ 10 MHz — +1, –3 dB
S-Video input/output level	Y (brightness) signal — 1 Vp-p, 75 Ω/ohms
S-Video frequency response	5 Hz ~ 10 MHz — +1, –3 dB
color component video input/output level	Y (brightness) signal — 1 Vp-p, 75 Ω/ohms
color component video frequency response	DC ~ 100 MHz — +0, –3 dB

Tuner Specifications

receiving range	87.50 MHz ~ 108.00 MHz 522 kHz ~ 1611 kHz
usable sensitivity	1.0 µV (11.2 dBf) 18 µV
50 dB quieting sensitivity	MONO 1.6 µV (15.3 dBf)
S/N MONO	77 dB (IHF-A weighted)
total harmonic distortion MONO	0.15 % (1 kHz)
total harmonic distortion STEREO	0.3 % (1 kHz)

General Specifications

power supply	AC 230 V, 50 Hz
power consumption	450 W
maximum external dimensions	434 (W) x 171 (H) x 417 (D) mm
mass	12.8 kg

Remote Control Specifications

batteries	R6P/AA Type (two batteries)
external dimensions	55 (W) x 225 (H) x 34.5 (D) mm
mass	165 g (including batteries)
