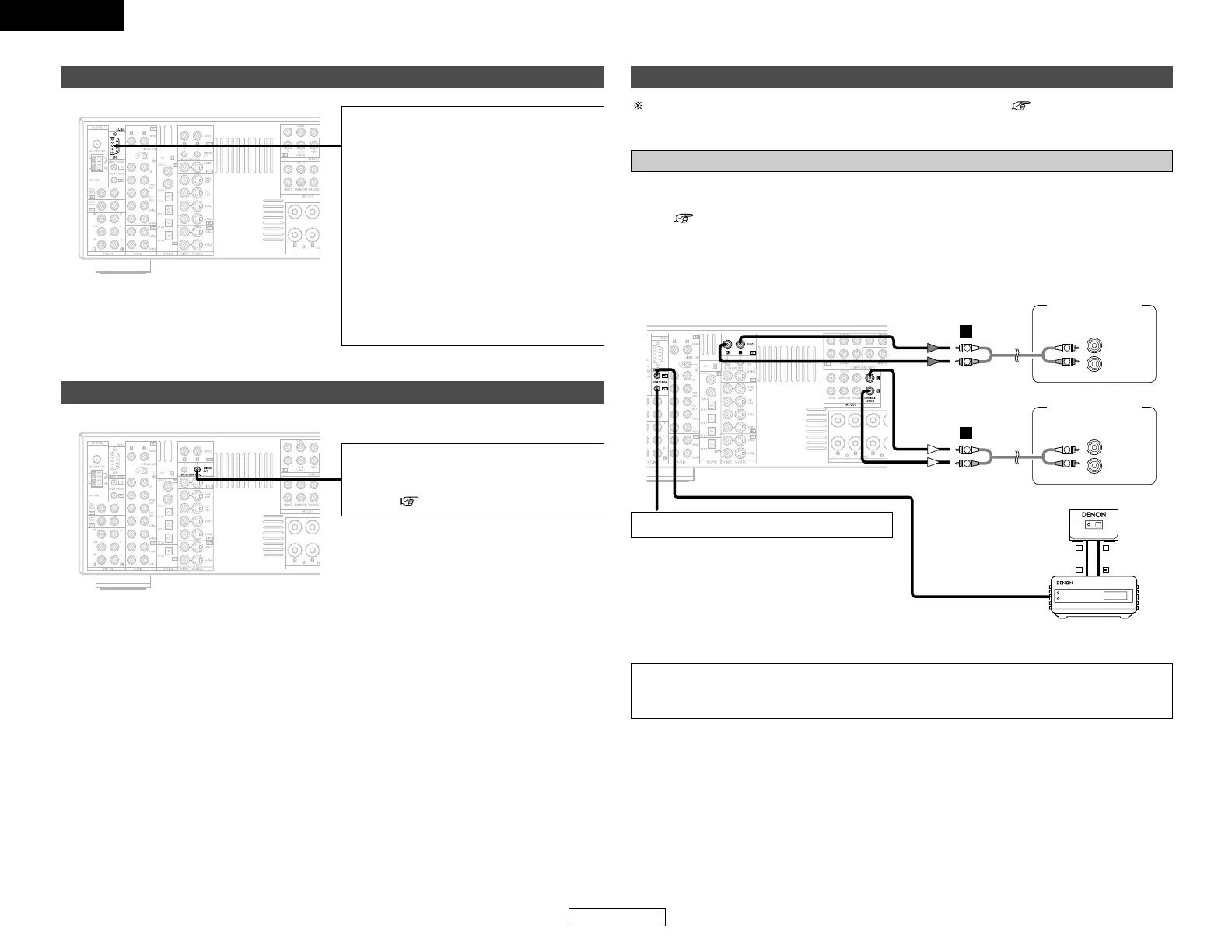

Connecting Other Sources Connecting Other Sources
17
Connecting the TRIGGER OUT terminal
Turn the DC 12V voltage on and off for the
individual functions and surround modes.
For details, see “Setting the Trigger Out
Setup” ( page 46).
For instructions on operations using the MULTI ZONE functions ( page 37~39).
Connecting the MULTI ZONE terminals
• If another power amplifier or pre-main (integrated) amplifier is connected, the ZONE2 out
(variable/fixed level) terminals can be used to play a different program source in ZONE2 the same
time ( page 37, 38).
• When a sold separately room-to-room remote control unit (DENON RC-616, 617 or 618) is wired
and connected between the MAIN ZONE and ZONE2, the remote-controllable devices in the
MAIN ZONE can be controlled from ZONE2 using the remote control unit.
ZONE2 out connections
NOTE:
• For instructions on installation and operation of separately sold devices, refer to the devices’
operating instructions.
Extension terminals for future use.
Connecting the RS-232C terminal
These terminals are used for an external
controller.
Perform the following operation before
using an external controller connected to the
RS-232C terminal:
1. Press the ON/STANDBY button on the
main unit and set the unit to the
operating mode.
2. Perform the operation to turn off the
power from the external control.
3. Check that the product has been set to
the standby mode.
After checking the above, check the
connections of the external controller.
Operation is possible.
