Denon AVR-2106 Operating Instructions

ENGLISH
11
Easy Setup and Operation
ENGLISH
Playing a DVD with surround sound
1
Disconnect the microphone from the unit.
2
Select the input source to be played.
3
Select the play (surround) mode.
4
5
Adjust the volume.
Start DVD playback.
Store:
Store the checked measurement values.
All parameters are stored.
Retry:
Perform the measurement again.
Measurement is repeated.
4
Press the CURSOR
DD
or
HH
button to select from
the following three items based on the
measurement results, then press the CURSOR
FF
button.
Cancel:
Cancel the checked measurement values.

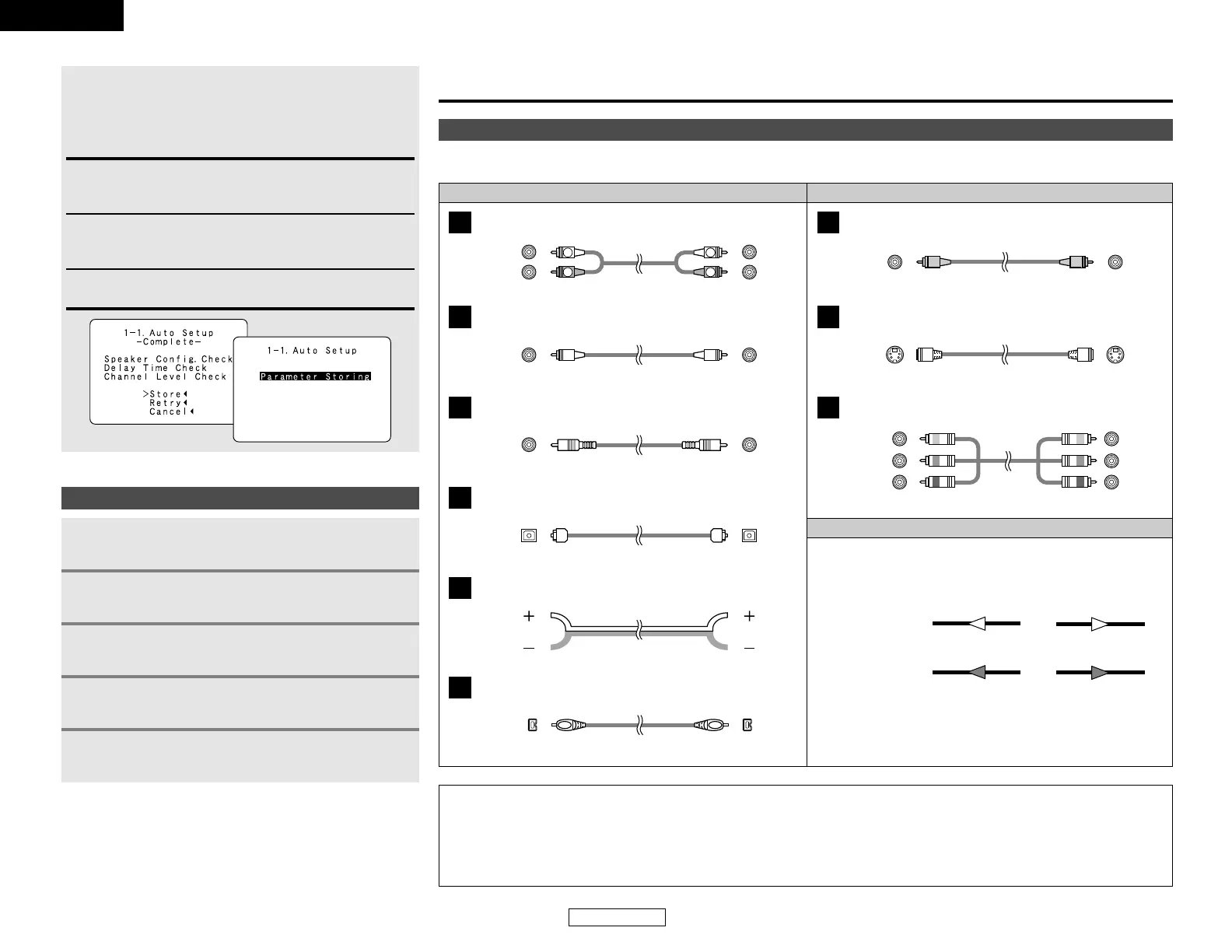

Cable indications
Signal direction
The hookup diagrams on the subsequent pages assume the use of the following optional connection cables (not supplied).
Video cableAudio cable
NOTE:
• Do not plug in the power supply cord until all connections have been completed.
• When making connections, also refer to the operating instructions of the other components.
• Be sure to connect the left and right channels properly (left with left, right with right).
• Note that binding pin-plug cables together with power supply cords or placing them near a power transformer will result in hum
or other noise.
Analog terminal (Stereo)
A
R
L
R
L
(Orange)
Pin-plug cable
Analog terminal (Monaural, for subwoofer)
B
Pin-plug cable
Digital terminal (Coaxial)
C
Coaxial cable (75 Ω/ohm pin-plug cable)
Digital terminal (Optical)
D
Optical cable (Optical fiber cable)
Speaker terminal
E
Speaker cable
Video terminal
G
Video cable (75 Ω/ohm video pin-plug cable)
S-Video terminal
H
S-Video cable
(Yellow)
Audio signal
Video signal
(White)
(Red)
Component video terminal
I
Component video cable
(Y)
(P
B/CB)
(P
R
/CR)
(Green)
(Blue)
(Red)
IN OUT OUT IN
IN OUT OUT IN
Connecting Other Sources
XM terminal
F
XM cable

Denon AVR-2106 Specifications

Audio Specifications

front rated output	90 W + 90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
center rated output	90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
surround rated output	90 W + 90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
surround back rated output	90 W + 90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
dynamic power	120 W x 2 ch (8 Ω/ohms)
analog input sensitivity	200 mV / 47 kΩ/kohms
frequency response	10 Hz ~ 100 kHz: +1, –3 dB (DIRECT mode)
analog distortion	0.008 % (20 Hz ~ 20 kHz) (DIRECT mode)
phono input sensitivity	2.5 mV
phono RIAA deviation	±1 dB (20 Hz to 20 kHz)
phono S/N	74 dB (A weighting, with 5 mV input)
phono rated output	150 mV / 7 V
phono distortion factor	0.03 % (1 kHz, 3 V)

Video Specifications

standard video input/output level	1 Vp-p, 75 Ω/ohms
standard video frequency response	5 Hz ~ 10 MHz — +1, –3 dB
S-Video input/output level	Y (brightness) signal — 1 Vp-p, 75 Ω/ohms
S-Video frequency response	5 Hz ~ 10 MHz — +1, –3 dB
color component video input/output level	Y (brightness) signal — 1 Vp-p, 75 Ω/ohms
color component video frequency response	DC ~ 100 MHz — +0, –3 dB

Tuner Specifications

receiving range	87.50 MHz ~ 108.00 MHz 522 kHz ~ 1611 kHz
usable sensitivity	1.0 µV (11.2 dBf) 18 µV
50 dB quieting sensitivity	MONO 1.6 µV (15.3 dBf)
S/N MONO	77 dB (IHF-A weighted)
total harmonic distortion MONO	0.15 % (1 kHz)
total harmonic distortion STEREO	0.3 % (1 kHz)

General Specifications

power supply	AC 230 V, 50 Hz
power consumption	450 W
maximum external dimensions	434 (W) x 171 (H) x 417 (D) mm
mass	12.8 kg

Remote Control Specifications

batteries	R6P/AA Type (two batteries)
external dimensions	55 (W) x 225 (H) x 34.5 (D) mm
mass	165 g (including batteries)
