Denon AVR-2106 Operating Instructions

ENGLISH
52

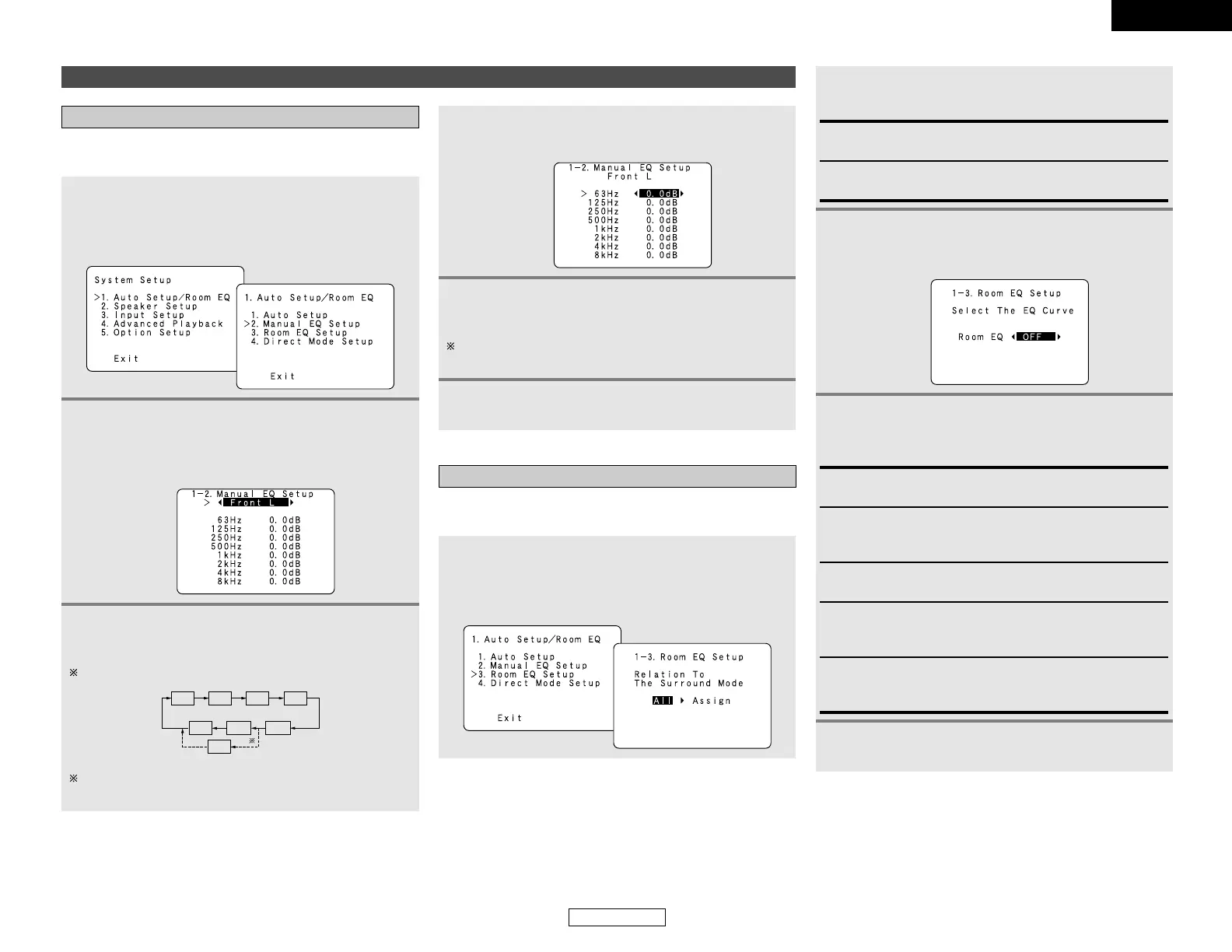

Advanced Setup – Part 2 Advanced Setup – Part 2
ENGLISH
1
Press the CURSOR
DD
or
HH
button to select
“Auto Setup/Room EQ” at the “System Setup”
menu, then press the ENTER button.
• The “Auto Setup/Room EQ” menu appears.
Setting the Manual EQ Setup
Others Setup
Adjust the tone of the various speakers except subwoofer
speaker while listening to the sound (music).
2
Press the CURSOR
DD
or
HH
button to select
“Manual EQ Setup”, then press the ENTER
button.
• The “Manual EQ Setup” screen appears.
4
Press the CURSOR
DD
or
HH
button to select the
frequency.
6
Press the ENTER button to enter the setting.
• The “Auto Setup/Room EQ” menu appears.
3
Press the CURSOR
FF
or
GG
button to select the
speaker to be set.
The display changes as follows.
FL
1sp
FR
C
SL
SBL
SBR
SB
SR
When the surround back speaker setting is set to “1sp” at
“Speaker Configuration”, this is set to “SB”.
5
Press the CURSOR
FF
or
GG
button to to adjust
the gain level.
Each frequency can be adjusted the range from –6 dB to +6
dB in 0.5 dB step.
1
Press the CURSOR
DD
or
HH
button to select
“Room EQ Setup” at the “Auto Setup/Room
EQ” menu, then press the ENTER button.
• The “Room EQ Setup” screen appears.
Setting the Room EQ Setup
Select the setting of an Equalizer that has been set with “Auto
Setup” or “Manual EQ”.
3
-1
When “All” is selected:
Press the ENTER button.
• The “Select the EQ Curve” screen appears.
2
Press the CURSOR
FF
or
GG
button to select “All”
or “Assign”.
All:
The Equalizer to all surround mode is set as once.
Assign:
The Equalizer to each surround mode is to set individually.
3
-2
When “All” is selected:
Press the CURSOR
FF
or
GG
button to select the
equalizer setting.
OFF:
The Equalizer is not used.
Flat:
Adjust the frequency response of all speakers flat.
Normal:
Adjust the frequency response of all speaker suitable for
general surround system.
Manual:
Selects the setting value that was set in the Manual EQ
setup.
Front:
Adjusts the characteristics of each speaker to the
characteristics of the front speakers.
4
Press the ENTER button to enter the setting.
• The “Auto Setup/Room EQ” menu appears.

Denon AVR-2106 Specifications

Audio Specifications

front rated output	90 W + 90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
center rated output	90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
surround rated output	90 W + 90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
surround back rated output	90 W + 90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
dynamic power	120 W x 2 ch (8 Ω/ohms)
analog input sensitivity	200 mV / 47 kΩ/kohms
frequency response	10 Hz ~ 100 kHz: +1, –3 dB (DIRECT mode)
analog distortion	0.008 % (20 Hz ~ 20 kHz) (DIRECT mode)
phono input sensitivity	2.5 mV
phono RIAA deviation	±1 dB (20 Hz to 20 kHz)
phono S/N	74 dB (A weighting, with 5 mV input)
phono rated output	150 mV / 7 V
phono distortion factor	0.03 % (1 kHz, 3 V)

Video Specifications

standard video input/output level	1 Vp-p, 75 Ω/ohms
standard video frequency response	5 Hz ~ 10 MHz — +1, –3 dB
S-Video input/output level	Y (brightness) signal — 1 Vp-p, 75 Ω/ohms
S-Video frequency response	5 Hz ~ 10 MHz — +1, –3 dB
color component video input/output level	Y (brightness) signal — 1 Vp-p, 75 Ω/ohms
color component video frequency response	DC ~ 100 MHz — +0, –3 dB

Tuner Specifications

receiving range	87.50 MHz ~ 108.00 MHz 522 kHz ~ 1611 kHz
usable sensitivity	1.0 µV (11.2 dBf) 18 µV
50 dB quieting sensitivity	MONO 1.6 µV (15.3 dBf)
S/N MONO	77 dB (IHF-A weighted)
total harmonic distortion MONO	0.15 % (1 kHz)
total harmonic distortion STEREO	0.3 % (1 kHz)

General Specifications

power supply	AC 230 V, 50 Hz
power consumption	450 W
maximum external dimensions	434 (W) x 171 (H) x 417 (D) mm
mass	12.8 kg

Remote Control Specifications

batteries	R6P/AA Type (two batteries)
external dimensions	55 (W) x 225 (H) x 34.5 (D) mm
mass	165 g (including batteries)
