Denon AVR-2106 Operating Instructions

ENGLISH
ENGLISH
25

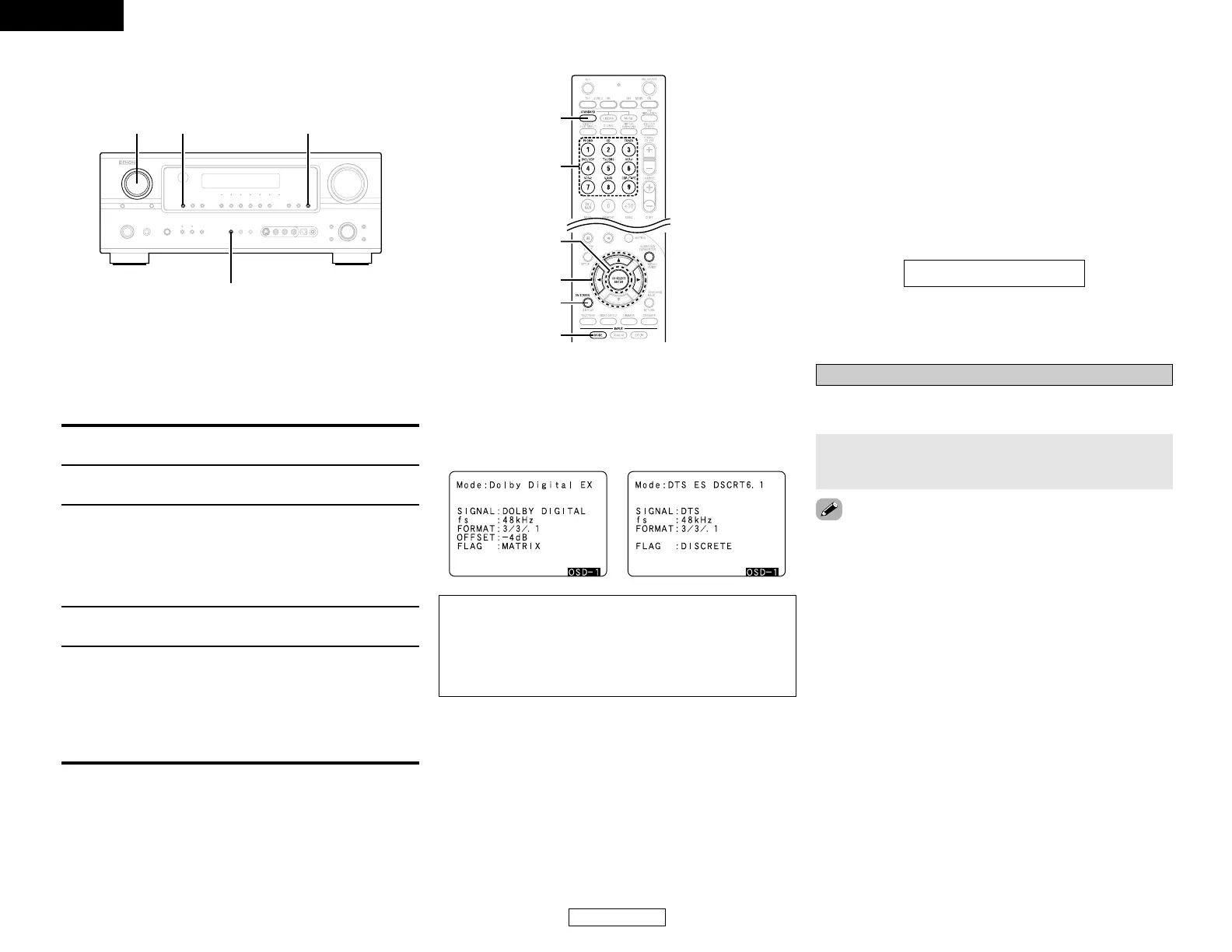

Basic Operation Basic Operation
• In addition, screen information is displayed in the following
order when the ON SCREEN button is pressed repeatedly:
OSD-1 Input signal
OSD-2 Input/output
OSD-3 Auto surround mode
OSD-4~10 Tuner preset stations
NOTE:
• OSD-3:
This is displayed when the auto surround mode is set to
“ON” and the input mode is set to “Auto”.
It is not displayed when the input mode is set to “Analog”
or “EXT. IN”.
2 Checking the input signal
The input signal can be checked by pressing the remote control
unit’s ON SCREEN button.
SIGNAL:
Displays the type of signal (DTS, DOLBY DIGITAL, PCM, etc.).
fs:
Displays the input signal’s sampling frequency.
FORMAT:
Displays the input signal’s number of channels.
“Number of front channels/Number of surround channels/ LFE
on/off”.
“SURROUND” is displayed for 2-channel signal sources
recorded in Dolby Surround.
OFFSET:
Displays the dialog normalization offset value.
FLAG:
Displays the special identification signal recorded in the input
signal.
“MATRIX” is displayed when matrix processing is conducted
on the surround back channel, “DISCRETE” is displayed when
discrete processing is conducted.
Not displayed if an identification signal has not been recorded.
Night mode
When listening at night or at lower volumes, the night mode
improves listenability.
Press and hold the NIGHT button for several seconds
to enter the night mode.
• Canceling night mode:
Press and hold the NIGHT button again.
• The night mode only works when playing program sources
recorded in Dolby Digital or DTS.
2 Dialog normalization
The dialog normalization function is activated automatically when
playing Dolby Digital program sources.
Dialog normalization is a basic function of Dolby Digital which
automatically normalizes the dialog level (standard level) of the
signals which are recorded at different levels for different
program sources, such as DVD, DTV and other future formats
that will use Dolby Digital.
These contents can be verified with the STATUS or ON SCREEN
buttons.
Display
OFFSET - 4dB
The number indicates the normalization level when the
currently playing program is normalized to the standard level.
STANDARD/NIGHT
FUNCTION STATUSINPUT MODE
STANDARD
CURSOR
ON SCREEN
INPUT MODE
ENTER
FUNCTION

Denon AVR-2106 Specifications

Audio Specifications

front rated output	90 W + 90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
center rated output	90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
surround rated output	90 W + 90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
surround back rated output	90 W + 90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
dynamic power	120 W x 2 ch (8 Ω/ohms)
analog input sensitivity	200 mV / 47 kΩ/kohms
frequency response	10 Hz ~ 100 kHz: +1, –3 dB (DIRECT mode)
analog distortion	0.008 % (20 Hz ~ 20 kHz) (DIRECT mode)
phono input sensitivity	2.5 mV
phono RIAA deviation	±1 dB (20 Hz to 20 kHz)
phono S/N	74 dB (A weighting, with 5 mV input)
phono rated output	150 mV / 7 V
phono distortion factor	0.03 % (1 kHz, 3 V)

Video Specifications

standard video input/output level	1 Vp-p, 75 Ω/ohms
standard video frequency response	5 Hz ~ 10 MHz — +1, –3 dB
S-Video input/output level	Y (brightness) signal — 1 Vp-p, 75 Ω/ohms
S-Video frequency response	5 Hz ~ 10 MHz — +1, –3 dB
color component video input/output level	Y (brightness) signal — 1 Vp-p, 75 Ω/ohms
color component video frequency response	DC ~ 100 MHz — +0, –3 dB

Tuner Specifications

receiving range	87.50 MHz ~ 108.00 MHz 522 kHz ~ 1611 kHz
usable sensitivity	1.0 µV (11.2 dBf) 18 µV
50 dB quieting sensitivity	MONO 1.6 µV (15.3 dBf)
S/N MONO	77 dB (IHF-A weighted)
total harmonic distortion MONO	0.15 % (1 kHz)
total harmonic distortion STEREO	0.3 % (1 kHz)

General Specifications

power supply	AC 230 V, 50 Hz
power consumption	450 W
maximum external dimensions	434 (W) x 171 (H) x 417 (D) mm
mass	12.8 kg

Remote Control Specifications

batteries	R6P/AA Type (two batteries)
external dimensions	55 (W) x 225 (H) x 34.5 (D) mm
mass	165 g (including batteries)
