Denon AVR-2106 Operating Instructions

ENGLISH
53

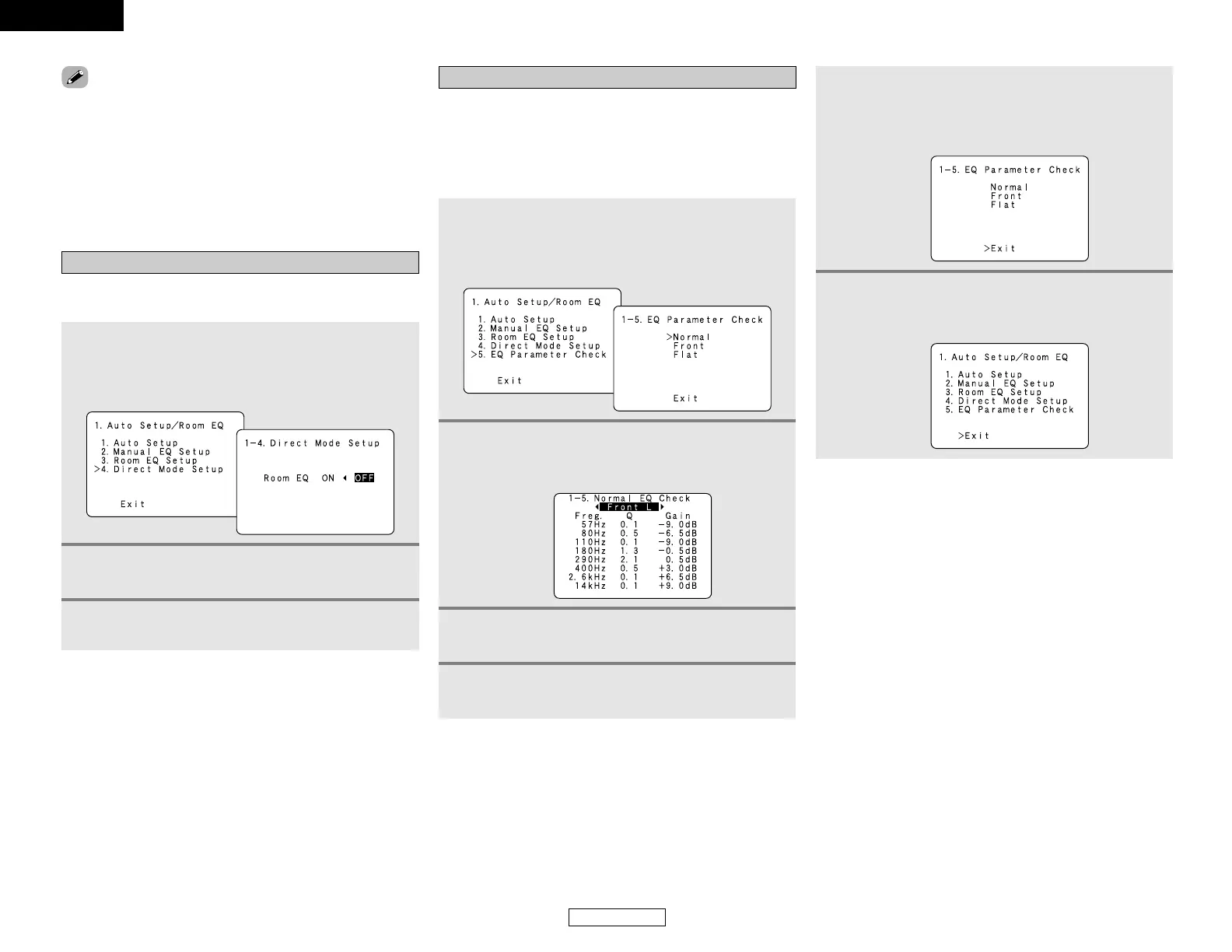

Advanced Setup – Part 2 Advanced Setup – Part 2
ENGLISH
• The Equalizer setting of “Normal”, “Flat” and “Front” can be
selected after performing the Auto Setup.
• When the speaker set as “None” with the Auto Setup is
change to on manually, the equalizer of “Normal”, “Front” and
“Flat” cannot be used.
• The Equalizer setting can be selected by SURROUND
PARAMETER button.
• When headphone is connected, the Room EQ cannot be used.
1
Press the CURSOR
DD
or
HH
button to select
“Direct Mode Setup” at the “Auto Setup/Room
EQ” menu, then press the ENTER button.
• The “Direct Mode Setup” screen appears.
Setting the Direct Mode Setup
Perform the ON/OFF setting of Room EQ when the surround
mode is “Direct” or “Pure Direct”.
2
Press the CURSOR
FF
or
GG
button to select “ON”
or “OFF”.
3
Press the ENTER button to enter the setting.
• The “Auto Setup/Room EQ” menu appears.
1
Press the CURSOR
DD
or
HH
button to select “EQ
Parameter Check” at the “Auto Setup/ Room
EQ” menu, then press the ENTER button.
• The “EQ Parameter Check” screen appears.
Check the EQ parameter
• The frequency characteristic of each speaker is rectified and
the tone of the speaker is unified.
• The EQ parameters that were set in Auto Setup can be
checked.
• This item is automatically displayed, after the measurement
result of the “Auto Setup/Room EQ” is decided.
2
Press the CURSOR
DD
or
HH
button to select the
equalizer curve, then press the ENTER button.
• The parameter screen appears.
3
Press the CURSOR
FF
or
GG
button to select the
speaker channel.
4
Press the ENTER button to enter the setting.
5
If the check ends, press the CURSOR
DD
or
HH
button to select “Exit”, then press the ENTER
button.
• The “Auto Setup/Room EQ” menu appears.
6
Press the CURSOR
DD
or
HH
button to select
“Exit”, then press the ENTER button.
• The “System Setup” menu appears.

Denon AVR-2106 Specifications

Audio Specifications

front rated output	90 W + 90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
center rated output	90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
surround rated output	90 W + 90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
surround back rated output	90 W + 90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
dynamic power	120 W x 2 ch (8 Ω/ohms)
analog input sensitivity	200 mV / 47 kΩ/kohms
frequency response	10 Hz ~ 100 kHz: +1, –3 dB (DIRECT mode)
analog distortion	0.008 % (20 Hz ~ 20 kHz) (DIRECT mode)
phono input sensitivity	2.5 mV
phono RIAA deviation	±1 dB (20 Hz to 20 kHz)
phono S/N	74 dB (A weighting, with 5 mV input)
phono rated output	150 mV / 7 V
phono distortion factor	0.03 % (1 kHz, 3 V)

Video Specifications

standard video input/output level	1 Vp-p, 75 Ω/ohms
standard video frequency response	5 Hz ~ 10 MHz — +1, –3 dB
S-Video input/output level	Y (brightness) signal — 1 Vp-p, 75 Ω/ohms
S-Video frequency response	5 Hz ~ 10 MHz — +1, –3 dB
color component video input/output level	Y (brightness) signal — 1 Vp-p, 75 Ω/ohms
color component video frequency response	DC ~ 100 MHz — +0, –3 dB

Tuner Specifications

receiving range	87.50 MHz ~ 108.00 MHz 522 kHz ~ 1611 kHz
usable sensitivity	1.0 µV (11.2 dBf) 18 µV
50 dB quieting sensitivity	MONO 1.6 µV (15.3 dBf)
S/N MONO	77 dB (IHF-A weighted)
total harmonic distortion MONO	0.15 % (1 kHz)
total harmonic distortion STEREO	0.3 % (1 kHz)

General Specifications

power supply	AC 230 V, 50 Hz
power consumption	450 W
maximum external dimensions	434 (W) x 171 (H) x 417 (D) mm
mass	12.8 kg

Remote Control Specifications

batteries	R6P/AA Type (two batteries)
external dimensions	55 (W) x 225 (H) x 34.5 (D) mm
mass	165 g (including batteries)
