Speaker Connections
w q
w q
w q
w q w q w q w q
w q
*/
w q
(L)
(R)
(L) (R) (L) (R)
(R)
(L)

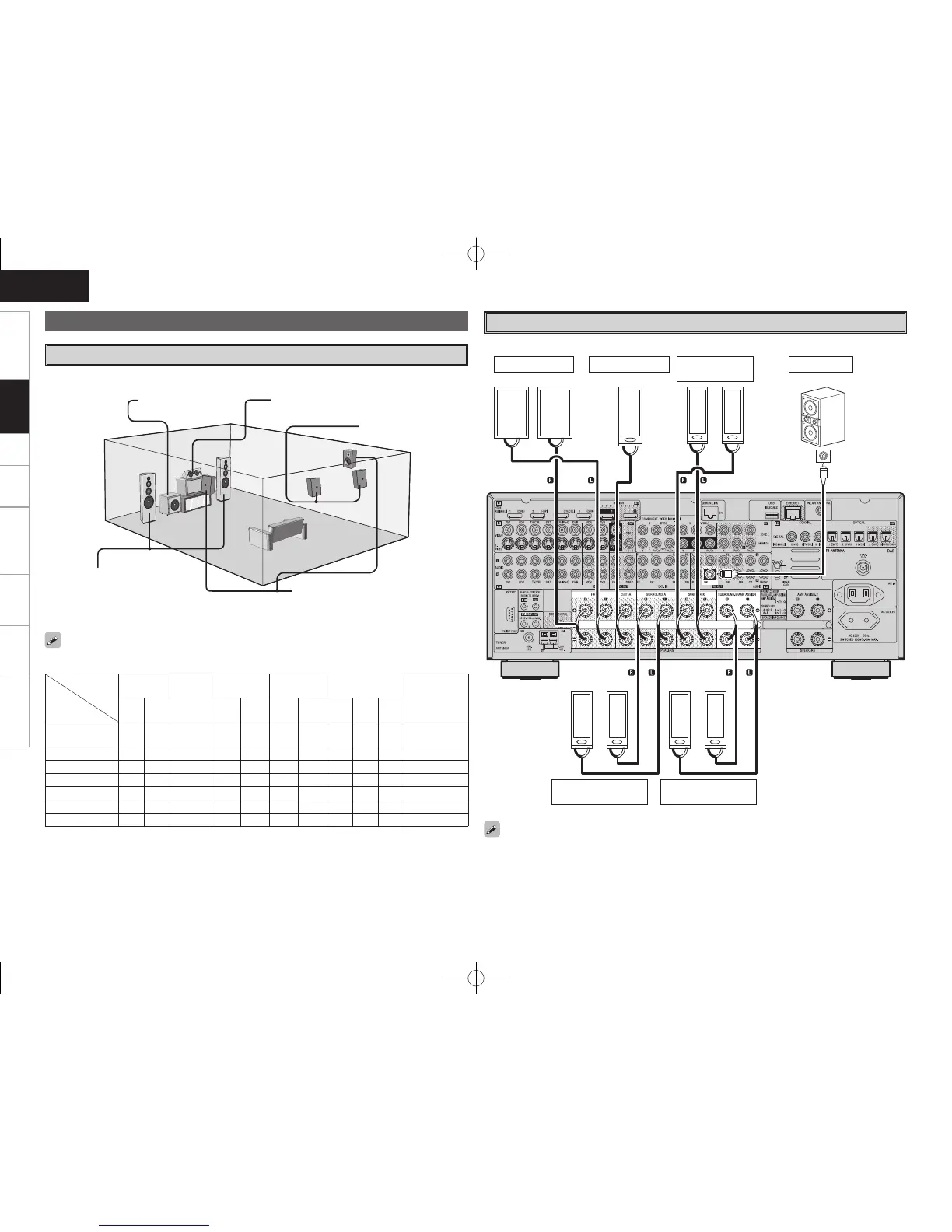

The illustration below shows a basic example of installation of the amplifier combined with 8 speakers and
a monitor.
Speaker Installation
Subwoofer Center speaker
Surround speakers
Front speakers
Place the front speakers to the
sides of the monitor or screen and
as flush with the screen surface as
possible.
The table below shows a typical speaker configuration for the AVR-4308.
Surround back speakers
FRONT
CENTER
SURROUND
A
SURROUND
B
SURROUND
BACK
SUBWOOFER
L R L R L R L R
1
only
7.1-channels
(Surround A+B)
S S S S S S S S S
–
S
7.1-channels
S S S S S
– –
S S
–
S
6.1-channels
S S S S S
– – – –
S S
5.1-channels
S S S S S
– – – – –
S
3.1-channels
S S S
– – – – – – –
S
2.1-channels
S S
– – – – – – – –
S
2-channels
S S
– – – – – – – – –
Speaker Connections
Example: 7.1-channels (Surround A+B)
Front speakers
Surround back
speakers
Center speaker Subwoofer
Subwoofer
with built-in
amplifier
Surround speakers
A
Surround speakers
B
When using just one surround back speaker, connect it to the left channel (SBL).
b L : Left
R : Right
Connections
