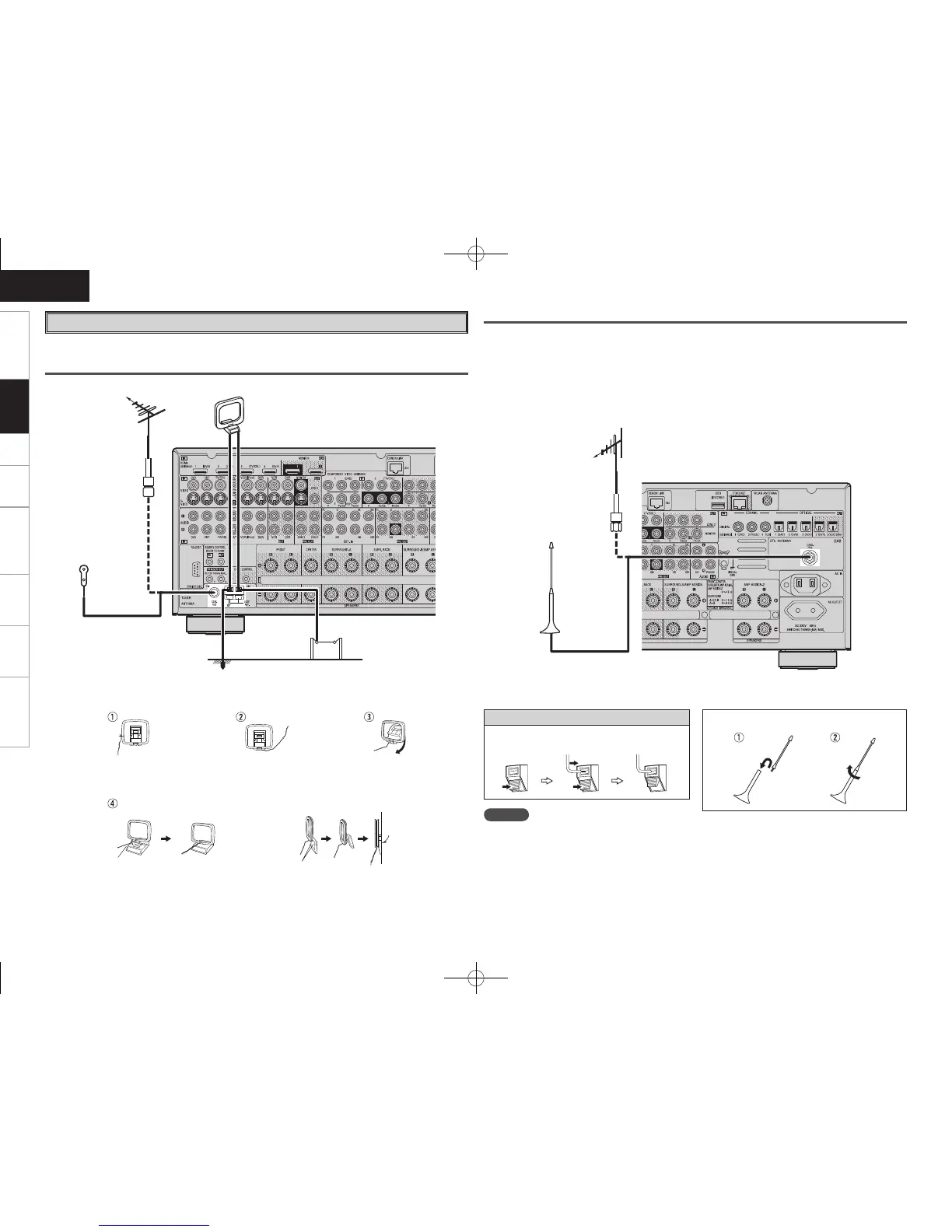

Antenna terminals
An FM antenna cable plug can be connected directly.
AM/FM
Direction of broadcasting station
AM loop antenna
(supplied)
FM antenna
75 Ω/ohms
Coaxial cable
FM indoor antenna
(supplied)
Ground
AM outdoor antenna
AM loop antenna assembly
Remove the vinyl tie and take
out the connection line.
Connect to the AM
antenna terminals.
Bend in the reverse direction.
a. With the antenna on top of
any stable surface.
Mount
b. With the antenna attached
to a wall.
Installation hole Mount on wall, etc.
DAB
DAB outdoor antenna
DAB indoor antenna
(supplied)
Connection of AM antennas
1. Push the
lever.
2. Insert the
conductor.
3. Return the
lever.
NOTE
• Do not connect two FM antennas
simultaneously.
• Even if an external AM antenna is used, do not
disconnect the AM loop antenna.
• Make sure the AM loop antenna lead terminals do
not touch metal parts of the panel.
Connecting an DAB outdoor antenna
If good reception cannot be achieved with the included DAB indoor antenna, use an DAB outdoor antenna.
Connect an F male type connector to the coaxial cable and connect the antenna to the DAB COAX 75
Ω/ohms terminal.
Installing the DAB indoor antenna
q DAB station reception (vpage 54).
w Use “Tuning Aid” to set position at which reception sensitivity is optimum (vpage 42).
DAB indoor antenna assembly
Mount the antenna’s screw to the stand.
Connections
