2. UPDATE FIRMWARE
(1) Connect the update terminal of AV receiver with the "WRITING KIT".
(2) Set the switch of "WRITING KIT". (Refer to the table below.)
DSPBOOT CE EPM CNVSS
H
H L H
(3) Press the
X
button to turn the power on of AV receiver.
(4) Set the switch of "WRITING KIT". (Refer to the table below.)
DSPBOOT CE EPM CNVSS
H
H H H
(5) Press the "RESET" switch of "WRITING KIT".

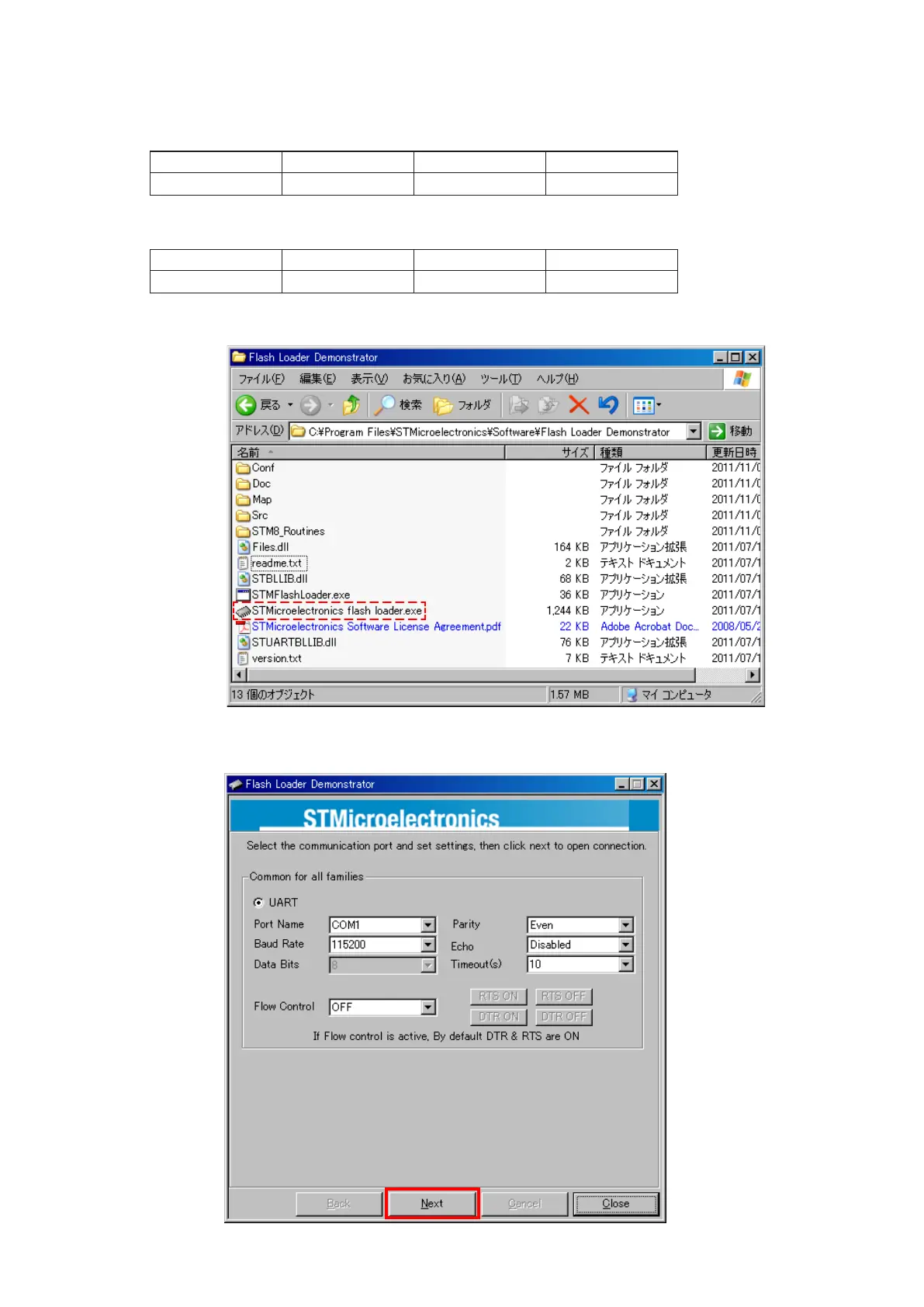

(6) Run the "STMicroelectronics ash loader.exe" on program le.
(7) Click the “Next” button 3 times.
Click the “Next” button for 1st time.

Denon AVR-X500 Specifications

General

Receiver type	-
Frequency range	10 - 100000 Hz
Pre-out channels	1 SW
Speaker selector	No
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	98 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	140 W
Power output per channel (20-20KHz@8 Ohm)	75 W
HDMI in	4
Audio (L/R) in	3
Composite video in	2
Ethernet LAN (RJ-45) ports	0
Number of HDMI outputs	1
Connectivity technology	Wired
Speakers connectivity type	Clamp terminals
Multichannel pre out connectivity	RCA
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Product color	Black
Audio decoders	Dolby Digital EX, Dolby Pro Logic IIx, Dolby TrueHD, DTS 96/24, DTS-ES, DTS-HD Master Audio
Apple docking compatibility	Not supported
Number of products included	1 pc(s)
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	330 W
Cables included	AC

Weight and Dimensions

Depth	319 mm
Width	434 mm
Height	151 mm
Weight	7900 g
