TECHNICALSPECIFICATIONS
n
Audio Section
• Poweramplier
Rated output :
Front :
75W+75W(8Ω,20Hz–20kHzwith0.08%T.H.D.)
110W+110W(6Ω,1kHzwith0.7%T.H.D.)
130W+130W(6Ω, JEITA)
Center :
75W(8Ω,20Hz–20kHzwith0.08%T.H.D.)
110W(6Ω,1kHzwith0.7%T.H.D.)
130W(6Ω,JEITA)
Surround:
75W+75W(8Ω,20Hz–20kHzwith0.08%T.H.D.)
110W+110W(6Ω,1kHzwith0.7%T.H.D.)
130W+130W(6Ω,JEITA)
Output connectors :6–16Ω
• Analog
Input sensitivity/Input impedance :
200mV/47kΩ
Frequency response:10Hz–100kHz—+1,–3dB(DIRECTmode)
S/N :98dB(IHF–Aweighted,DIRECTmode)
n
Video section
• Standard video connectors
Input/output level and impedance :
1Vp-p,75Ω
Frequency response:5Hz–10MHz—0,–3dB
n
Tuner section
[FM](Note:μVat75Ω,0dBf=1x10
–15
W)
Receiving Range (forE3/E3B):
[FM]
87.5MHz–107.9MHz [AM]520kHz–1710kHz
Receiving Range (forE2,E1C):
[FM]
87.5MHz–108.0MHz [AM]522kHz–1611kHz
Usable Sensitivity :
[FM]
1.2μV(12.8dBf) [AM]18μV
50 dB Quieting Sensitivity :
[FM]
MONO2.8μV(20.2dBf)
S/N (IHF-A) :
[FM]
MONO70dB(IHF–Aweighted,DIRECTmode)
STEREO67dB(IHF–Aweighted,DIRECTmode)
TotalharmonicDistortion(at1kHz):
[FM]MONO0.7%
STEREO1.0%
n
General
Powersupply:(forE3/E3B): AC120V,60Hz
 (forE2/E1) : AC230V,50Hz/60Hz
(forE1C) : AC220V,50Hz
Powerconsumption:330W
0.3W(Standby)

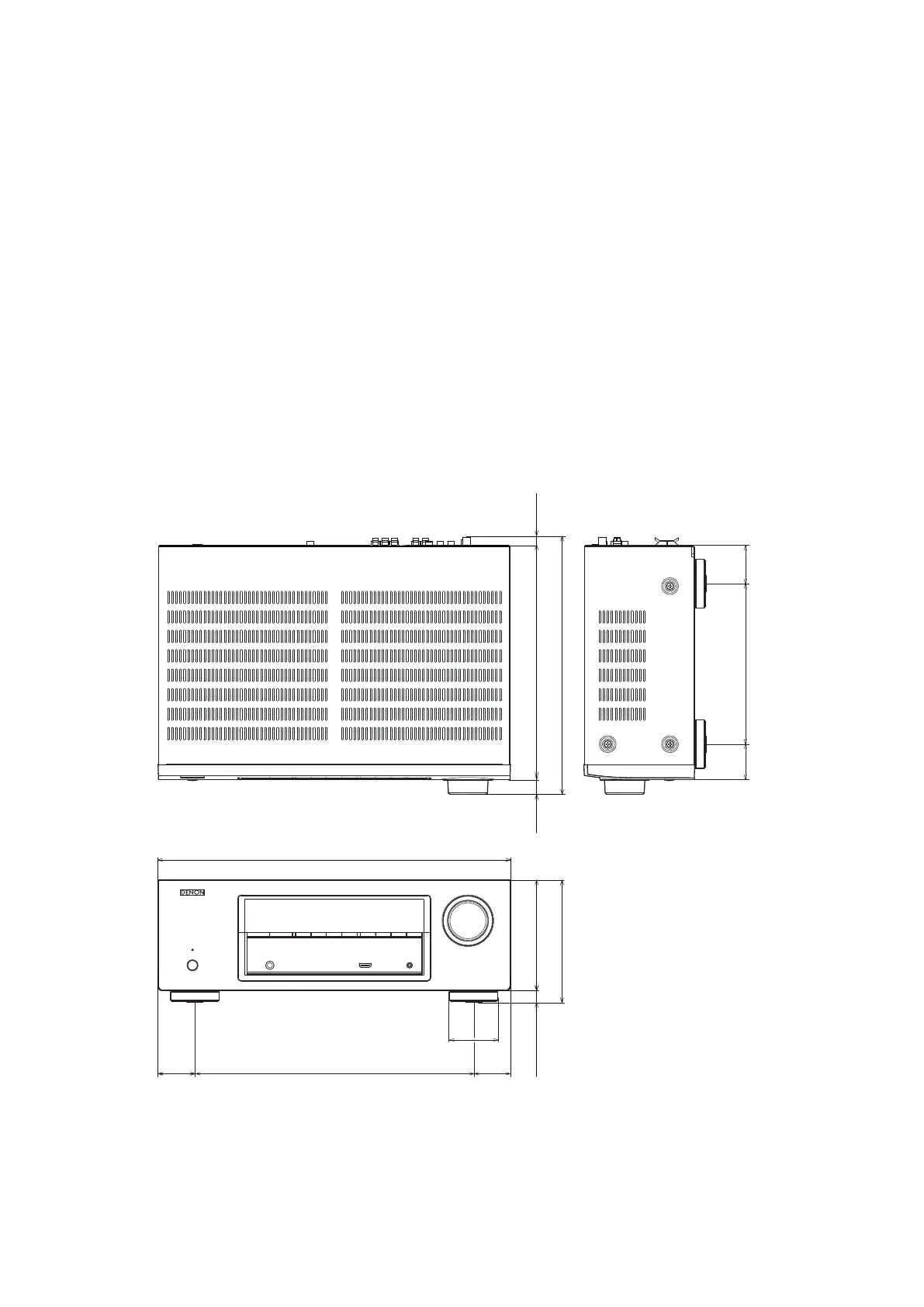

DIMENSION
15/32 (12.0)
11 23/64 (288.5)
12 9/16 (319.0)
1 27/32
(47.0)
7 51/64 (198.0)
1 23/32
(43.5)
47/64 (18.5)
17 3/32 (434.0)
5 23/64 (136.0) 5 15/16 (151.0)
2 23/64
(60.0)
1 49/64
(45.0)
19/32 (15.0)
13 35/64 (344.0)
1 49/64
(45.0)
Unit : in. (mm)
Weight : 17 lbs 7 oz (7.9 kg)

Denon AVR-X500 Specifications

General

Receiver type	-
Frequency range	10 - 100000 Hz
Pre-out channels	1 SW
Speaker selector	No
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	98 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	140 W
Power output per channel (20-20KHz@8 Ohm)	75 W
HDMI in	4
Audio (L/R) in	3
Composite video in	2
Ethernet LAN (RJ-45) ports	0
Number of HDMI outputs	1
Connectivity technology	Wired
Speakers connectivity type	Clamp terminals
Multichannel pre out connectivity	RCA
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Product color	Black
Audio decoders	Dolby Digital EX, Dolby Pro Logic IIx, Dolby TrueHD, DTS 96/24, DTS-ES, DTS-HD Master Audio
Apple docking compatibility	Not supported
Number of products included	1 pc(s)
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	330 W
Cables included	AC

Weight and Dimensions

Depth	319 mm
Width	434 mm
Height	151 mm
Weight	7900 g
