Denon AVR-X500 Service Manual

104

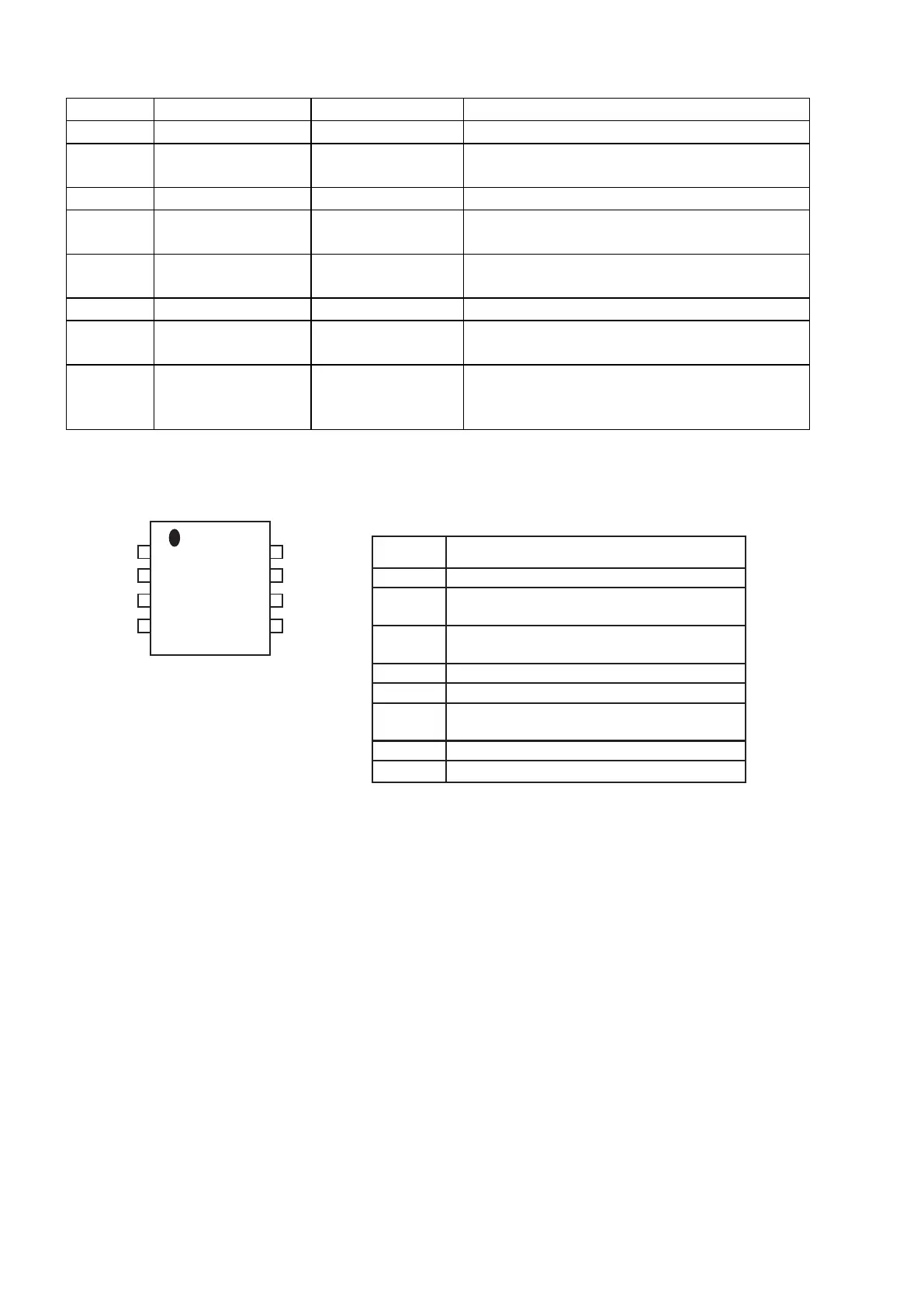

MX25L8006EM2I-12G (DIGITAL : IC14, IC82)
ADV7623 Hardware Manual
Rev. 0 – March 2010 23 Confidential NDA required
Location Mnemonic Type Description
B in the HDMI interface.
138 RXB_1+ HDMI Input Digital input channel 1 true of port B in the
HDMI interface.
139 TVDD Power Receiver terminator supply voltage (3.3 V)
140 RXB_2- HDMI Input Digital input channel 2 complement of port
B in the HDMI interface.
141 RXB_2+ HDMI Input Digital input channel 2 true of port B in the
HDMI interface.
142 HP_CTRLC Digital Output Hot Plug Detect for port C.
143 5V_DETC Digital Input 5 V detect pin for port C in the HDMI
interface.
144 DDCC_SDA Digital I/O HDCP slave serial clock port C.
DDCC_SDA is a 3.3 V input/output that is
5 V tolerant.
CS#
1
2
3
4
8
7
6
5
SO/SIO1
WP#
GND
VCC
HOLD#
SCLK
SI/SIO0
SYMBOL
CS#
SI/SIO0
SO/SIO1
SCLK
WP#
HOLD#
VCC
GND
Chip Select
Serial Data Input (for 1 x I/O)/ Serial Data
Input & Output (for Dual Output mode)
Serial Data Output (for 1 x I/O)/ Serial Data
Output (for Dual Output mode)
Clock Input
Write protection
+ 3.3V Power Supply
Ground
Hold, to pause the device without
deselecting the device
DESCRIPTION
PIN DESCRIPTION

Denon AVR-X500 Specifications

General

Receiver type	-
Frequency range	10 - 100000 Hz
Pre-out channels	1 SW
Speaker selector	No
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	98 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	140 W
Power output per channel (20-20KHz@8 Ohm)	75 W
HDMI in	4
Audio (L/R) in	3
Composite video in	2
Ethernet LAN (RJ-45) ports	0
Number of HDMI outputs	1
Connectivity technology	Wired
Speakers connectivity type	Clamp terminals
Multichannel pre out connectivity	RCA
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Product color	Black
Audio decoders	Dolby Digital EX, Dolby Pro Logic IIx, Dolby TrueHD, DTS 96/24, DTS-ES, DTS-HD Master Audio
Apple docking compatibility	Not supported
Number of products included	1 pc(s)
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	330 W
Cables included	AC

Weight and Dimensions

Depth	319 mm
Width	434 mm
Height	151 mm
Weight	7900 g
