Denon DCD-F109 Service Manual

18

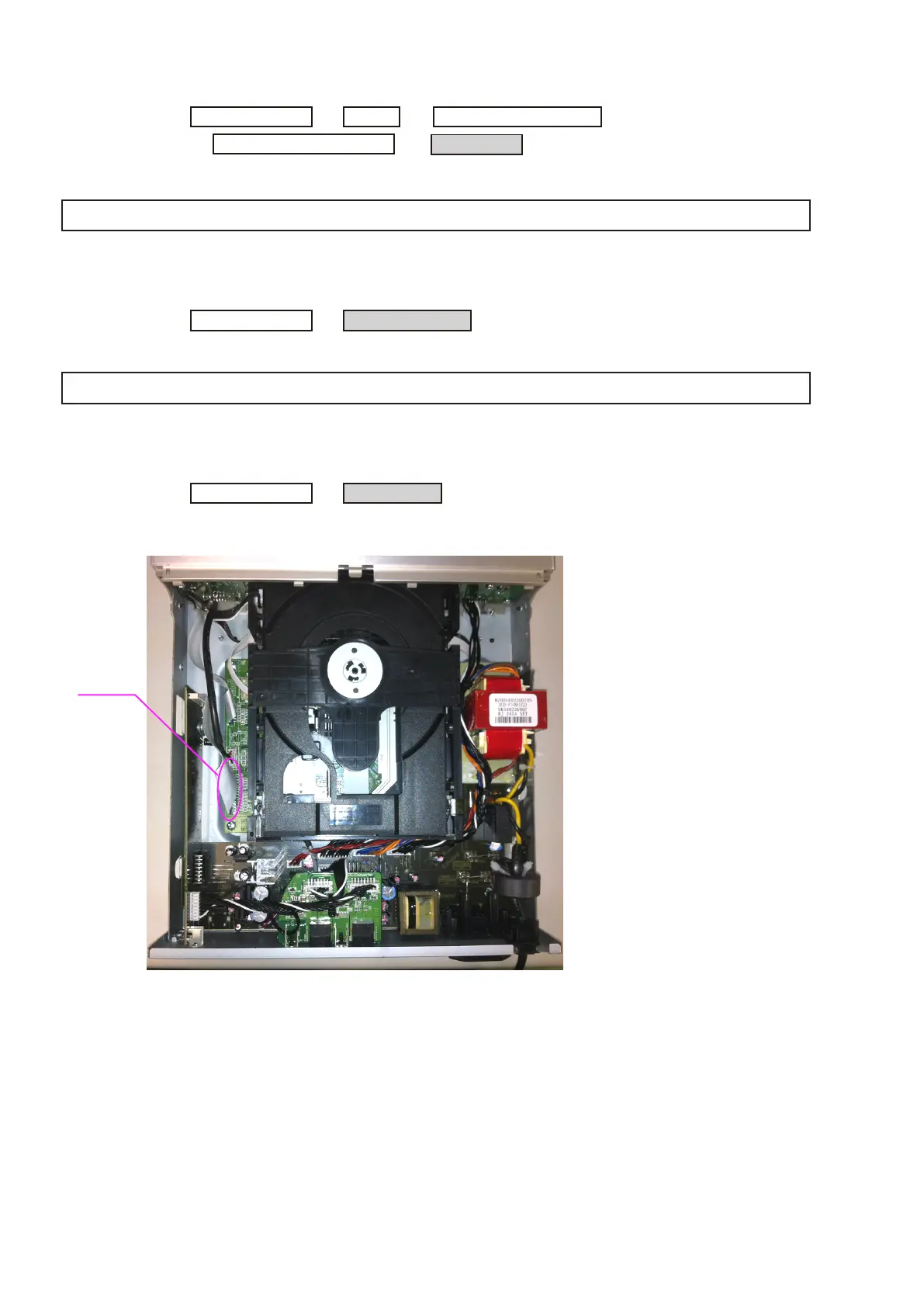

4. MAIN PCB
5. POWER TRANS
6. AUDIO PCB
(1) Disconnect the connector wire and FFC.
DOOR FRONT PANEL ASSY
→
CABINET TOP
→
CD MECHANISM ASSY
→
MAIN PCB
→
Proceeding :

Please refer to "EXPLODED VIEW" for the disassembly method of MAIN PCB.
CABINET TOP
POWER TRANS
→
Proceeding :

Please refer to "EXPLODED VIEW" for the disassembly method of POWER TRANS.
CABINET TOP
AUDIO PCB
→
Proceeding :

FFC(CX11)

Denon DCD-F109 Specifications

General

Audio formats supported	MP3, WMA
CD-RW playback	Yes
CD changer	No
Device type	HiFi CD player
Product color	Black
USB 2.0 ports quantity	1

Weight and Dimensions

Depth	264 mm
Width	250 mm
Height	82 mm
Weight	2800 g
