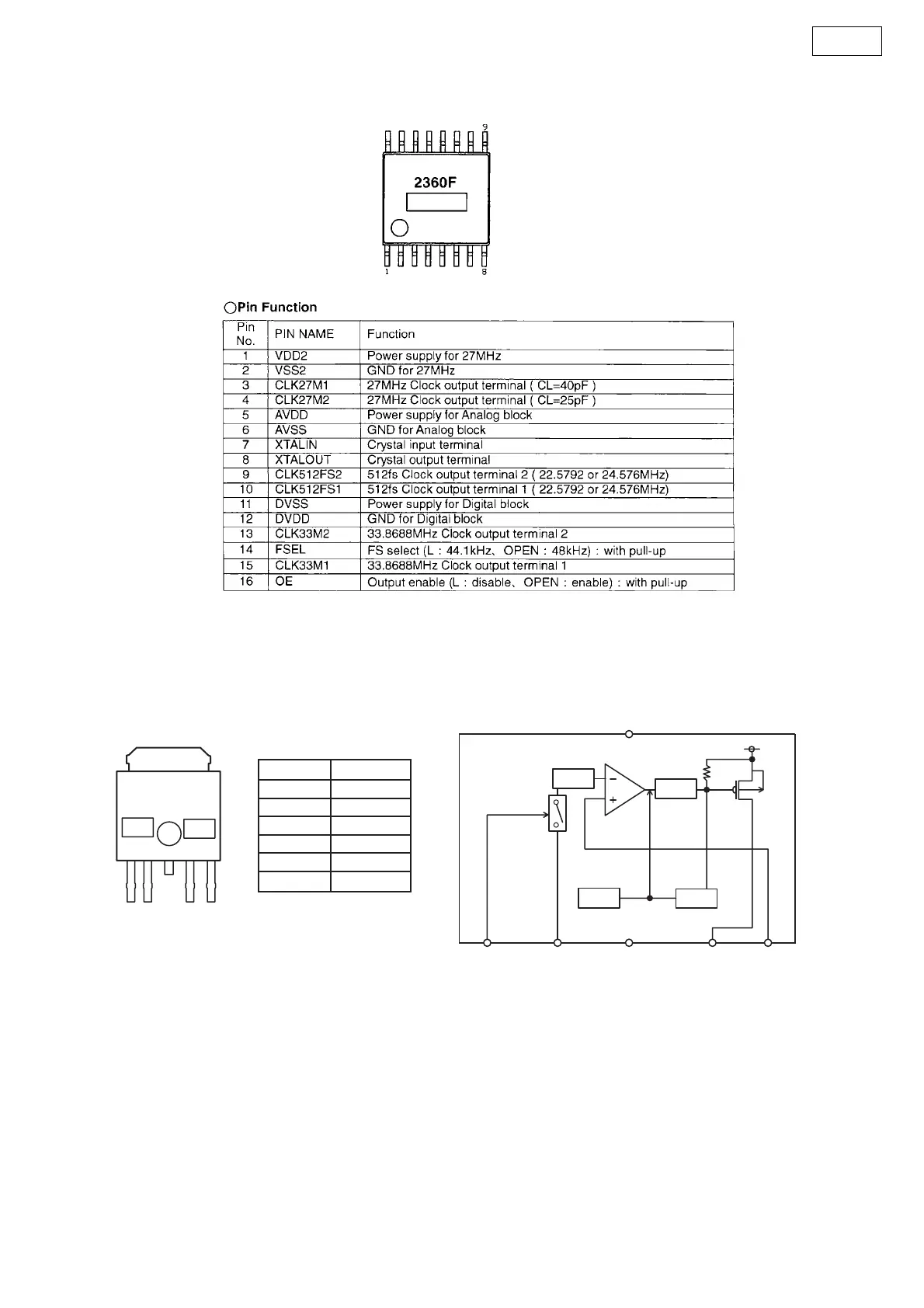

60
S-102
BU2360FV (IC109: 1U-3836)
BD7820 (IC111, IC707: 1U-3836)
FIN
12 3 4 5
BLOCK DIAGRAM
Vref
TSD
OCP
Driver
GND (FIN)
CTL (1PIN)
Vcc (2PIN) OUT (4PIN)
ADJ (5PIN)
N. C. (3PIN)
Pin No. Pin Name
1
2
3
4
5
FIN
CTL
Vcc
N.C.
OUT
ADJ
GND
