DENT Instruments PowerScout 3 HD User Manual

44
DENT Instruments
PowerScout HD
Meter Installation

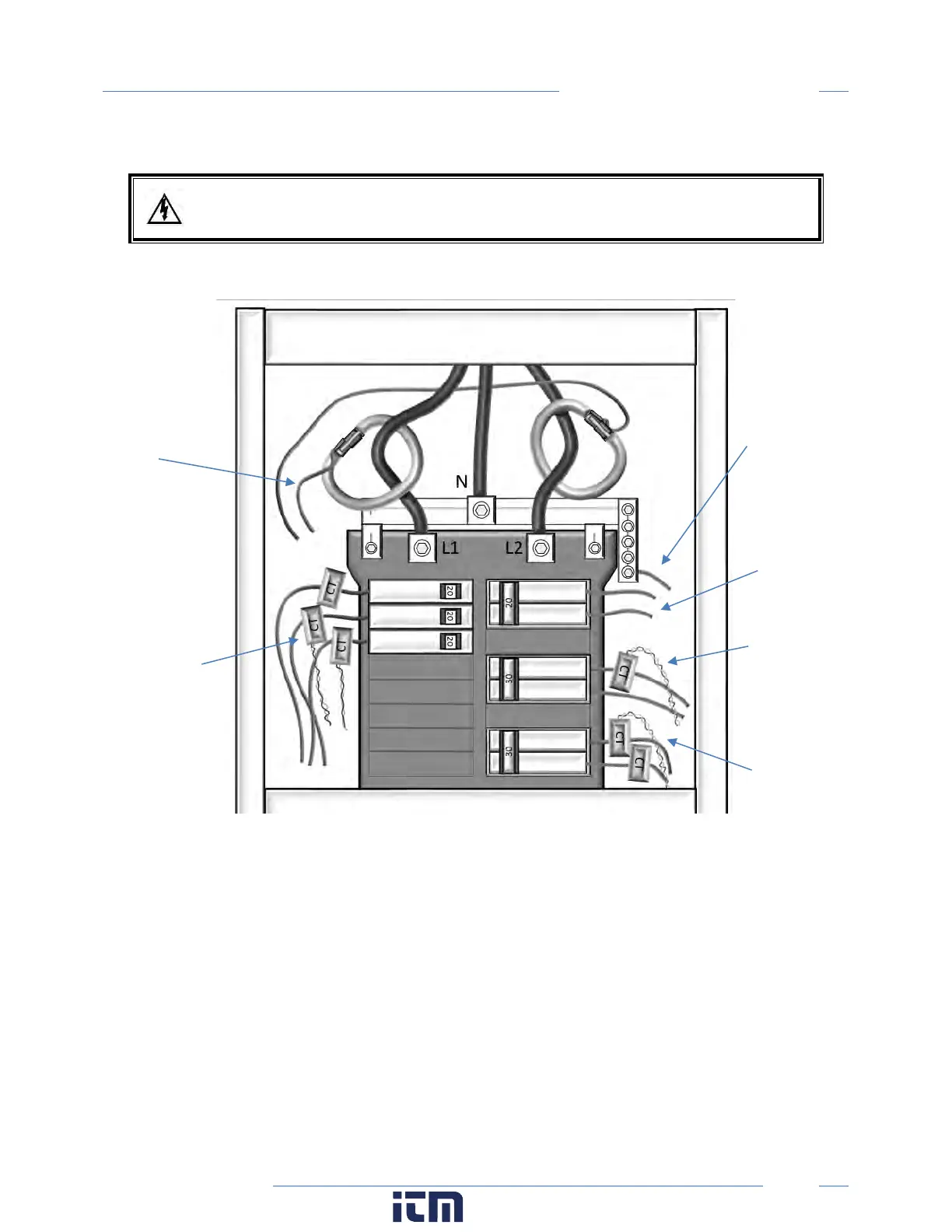

Wiring the PSHD Meter in a 3-wire, Split ɸ Service Panel
High voltage MAY BE PRESENT. Risk of electric shock. Life threatening voltages may be
present. Qualified personnel only.
Illustrating the intended wiring configuration for each of the Service Types
available in the Service drop-down list under “Meter Setup”
EXAMPLE LOADS:
Single Phase L1-N or L2-N 110 VAC: Lighting, Appliance, Living Zone
Single Phase L1–L2 220 VAC: Water Heater or other equipment with no Neutral wire
Split Phase L1–L2 220 VAC: Service Entrance, Dryers, or equipment with Neutral wire
3-Wire, 1 Phase
Used on MAINS
L1-N, L2-N
(RōCoil CTs Shown)
Single Phase
110 VAC Plug Loads
L1-N or L2-N
(Split Core CTs Shown)
Single Phase
220 VAC Load
L1-L2
Meter is powered
from L1 to L2 on
the VIN1 Connector
(Label as PowerScout
Disconnect)
Connect the
Neutral wire to
VIN 1, N terminal
on the PSHD meter
3-Wire, 1 Phase
Split Load
L1-N, L2-N
