DENT Instruments
PowerScout HD
Meter Installation
Wiring CTs to PS3HD Meters

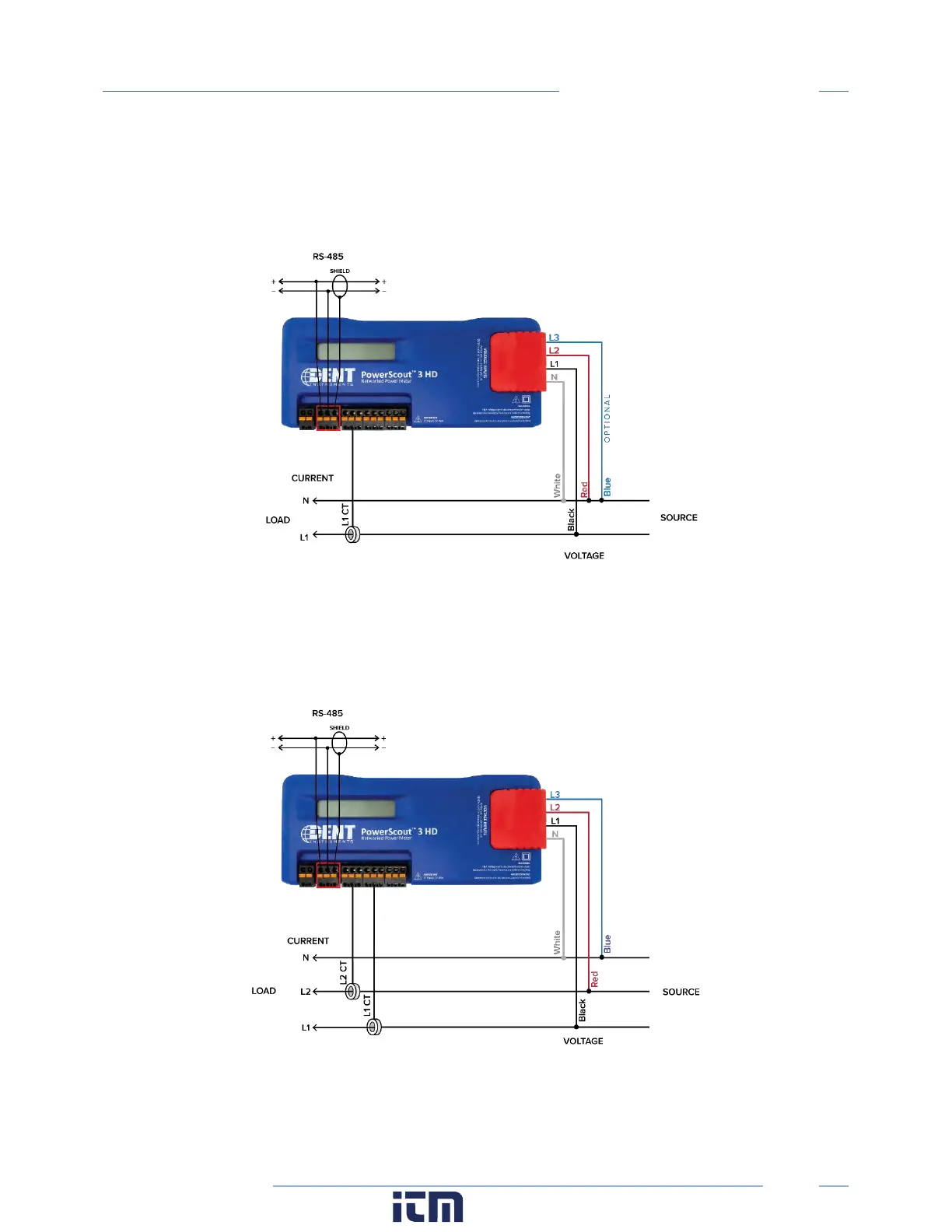

The images below represent CT and voltage connections between the PowerScout 3 HD and the most
common service types. For specific wiring questions outside the scope of this document, contact DENT
technical support.
Two Wire Single Phase
Three Wire Single Phase
