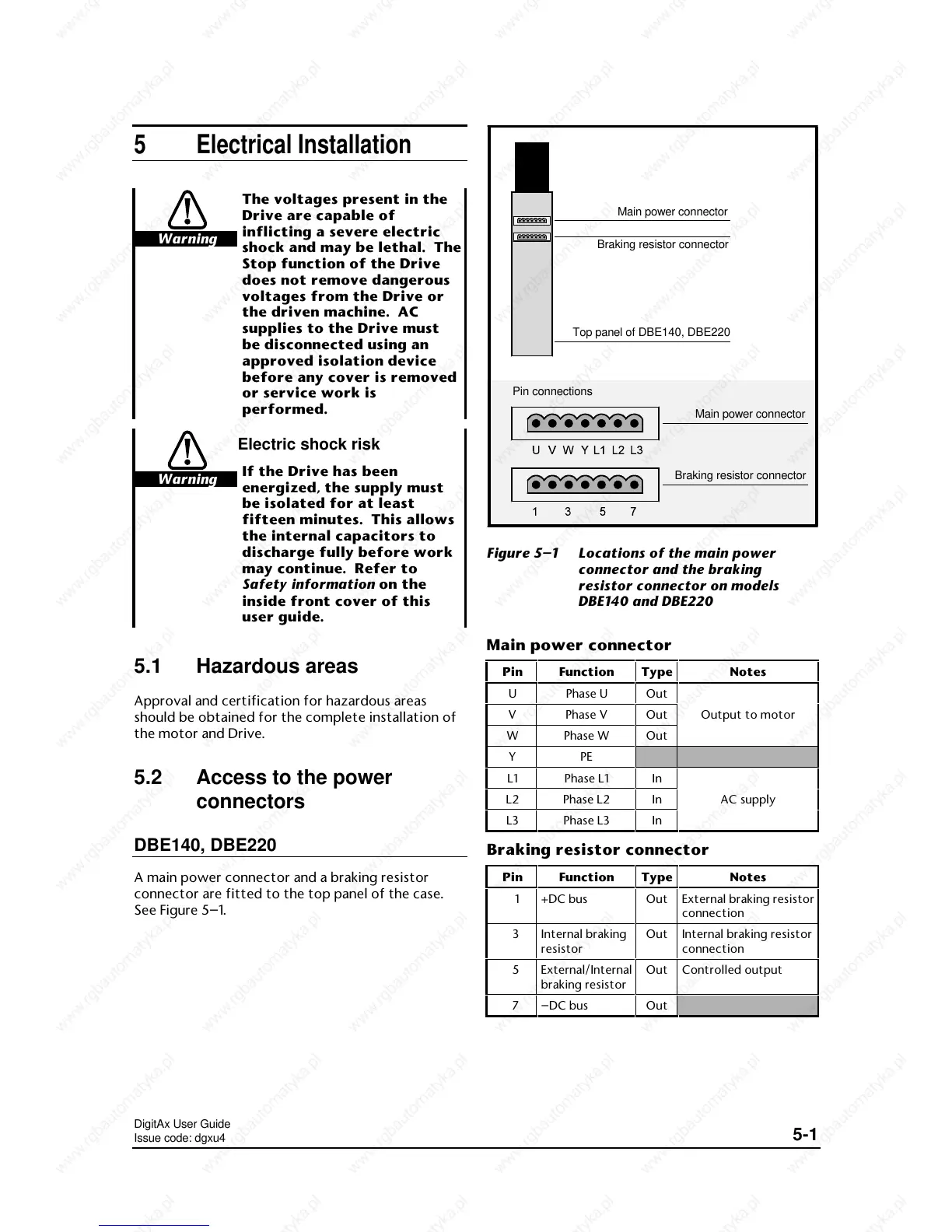

5-1
5 Electrical Installation
Warning
The voltages present in the
Drive are capable of
inflicting a severe electric
shock and may be lethal. The
Stop function of the Drive
does not remove dangerous
voltages from the Drive or
the driven machine. AC
supplies to the Drive must
be disconnected using an
approved isolation device
before any cover is removed
or service work is
performed.
Warning
Electric shock risk
If the Drive has been
energized, the supply must
be isolated for at least
fifteen minutes. This allows
the internal capacitors to
discharge fully before work
may continue. Refer to
Safety information on the
inside front cover of this
user guide.
5.1 Hazardous areas
Approval and certification for hazardous areas
should be obtained for the complete installation of
the motor and Drive.
5.2 Access to the power
connectors
DBE140, DBE220
A main power connector and a braking resistor
connector are fitted to the top panel of the case.
See Figure 5–1.
Main power connector
Braking resistor connector
Top panel of DBE140, DBE220
Main power connector
Braking resistor connector
Pin connections
Figure 5–1 Locations of the main power
connector and the braking
resistor connector on models
DBE140 and DBE220
Main power connector
Pin Function
Type
Notes
U Phase U
Out
V Phase V
Out
Output to motor
W Phase W
Out
YPE
L1 Phase L1
In
L2 Phase L2
In
AC supply
L3 Phase L3
In
Braking resistor connector
Pin Function
Type
Notes
1 +DC bus
Out
External braking resistor
connection
3 Internal braking
resistor
Out
Internal braking resistor
connection
5 External/Internal
braking resistor
Out
Controlled output
7 –DC bus
Out
