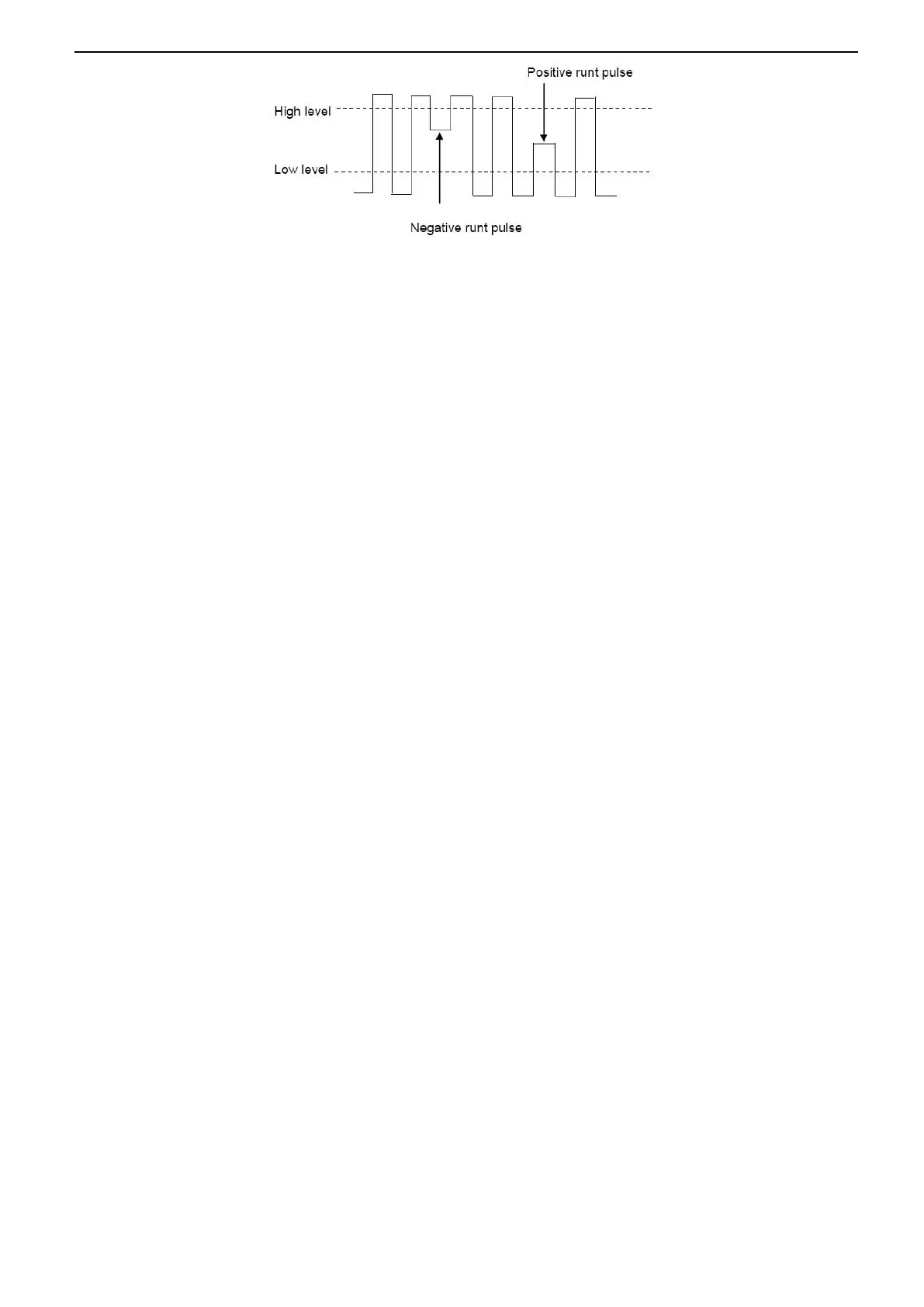

A positive under Amp pulse across through a lower threshold but not an upper threshold.
A negative under Amp pulse across through an upper threshold but not a lower threshold.
To trigger on under Amp pulse:
1. Press the [Trig Menu] button on the front panel to enter the Trigger system function menu.
2. Press the Type softkey, then turn the Multifunctional Knob to select Under Amp and push down the knob to confirm.
3. Press the Source softkey, turn the Multifunctional Knob to select CH1~CH2 as the trigger source.
4. Press the Polarity softkey to select Positive or Negative pulse to trigger.
5. Press the When softkey, turn the Multifunctional Knob to select the desired condition (<, >, != or =).
6. Press the Width softkey, and then turn the Multifunctional Knob to select the desired value.
7. Press the Level softkey to select Upper(V1) or Lower(V2) trigger level, and turn the Multifunctional Knob to set the
position, make the Under Amp pulse to be captured between the two levels.
8. Press the Mode softkey, turn V0 to select the trigger mode (auto, normal), and press V0 to confirm.
Auto: When the oscilloscope meets the trigger condition, it completes a trigger acquisition once; when the trigger condition
is not met, it can run the acquisition waveform freely.
Normal: When the oscilloscope meets the trigger condition, the input waveform is displayed; when the trigger condition is
not met, the original waveform is displayed.
9. Press the Holdoff softkey and turn V0 to set the time that the oscilloscope waits before a trigger to the next trigger, so that
complex waveforms are displayed stably.
2.7.10. UART Trigger
Set UART trigger:
1. Press the [Trig Menu] button on the front panel to enter the Trigger system function menu.
2. Press the Type softkey, then turn the Multifunctional Knob to select UART and push down the knob to confirm.
3. Press the Source softkey, turn the Multifunctional Knob to select CH1~CH2 as the trigger source.
4. Set the following parameters:
Idle Level: Set the idle level High or Low to match your device under test.
Baud: Press the Baud Rate softkey, then press the Multifunctional Knob and select a baud rate to match the
signal in your device under test. If the desired baud rate is not listed, select Custom on the Baud softkey, and then
