CAN Decode interpretation:

1. The decode data is displayed in hexadecimal;

2. The decoded data is at the bottom of the waveform interface. The color of “frame ID” is displayed purple, the “Data” is

blue, the “CRC” is purple;

3. When there are "?" or "adjust the time base", you need to adjust the time base to see the decoding results.

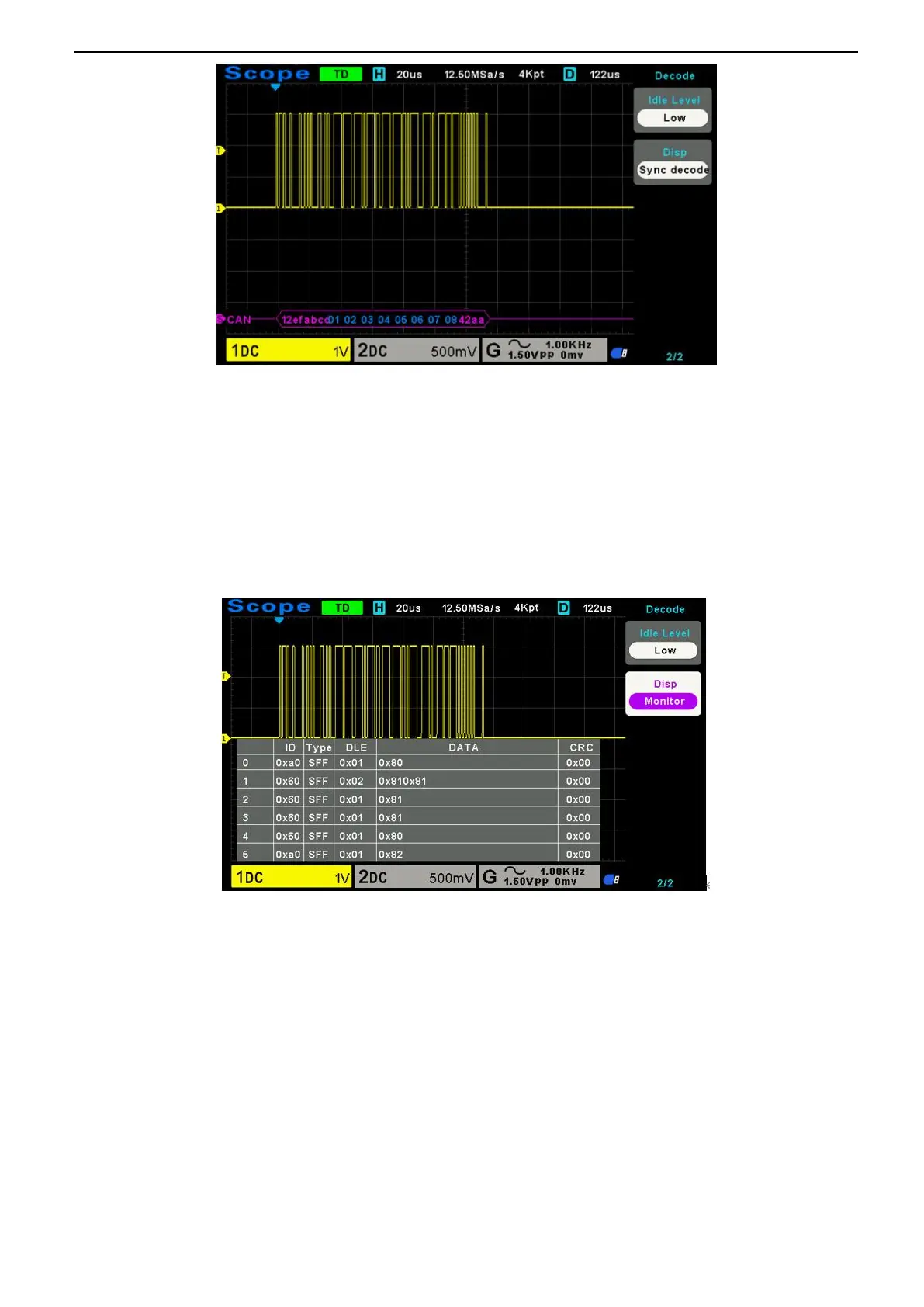

CAN text interface is shown as below:

ID: The ID value of the current frame, displayed as hexadecimal;

Type: Frame type. “SFF”- Standard data frame, “SRF”- Standard remote frame, “EFF”- Extended data frame, “ERF”-

Extended remote frame;

DLE: Data bytes of current frame;

Data: The data of current frame;

CRC：The CRC check code of current frame.

2.8.4. SPI Decode

SPI decode settings：SCL: CH2; SDA: CH1; Slope: Rising; Data Width: 8; Overtime: 8.37us.
