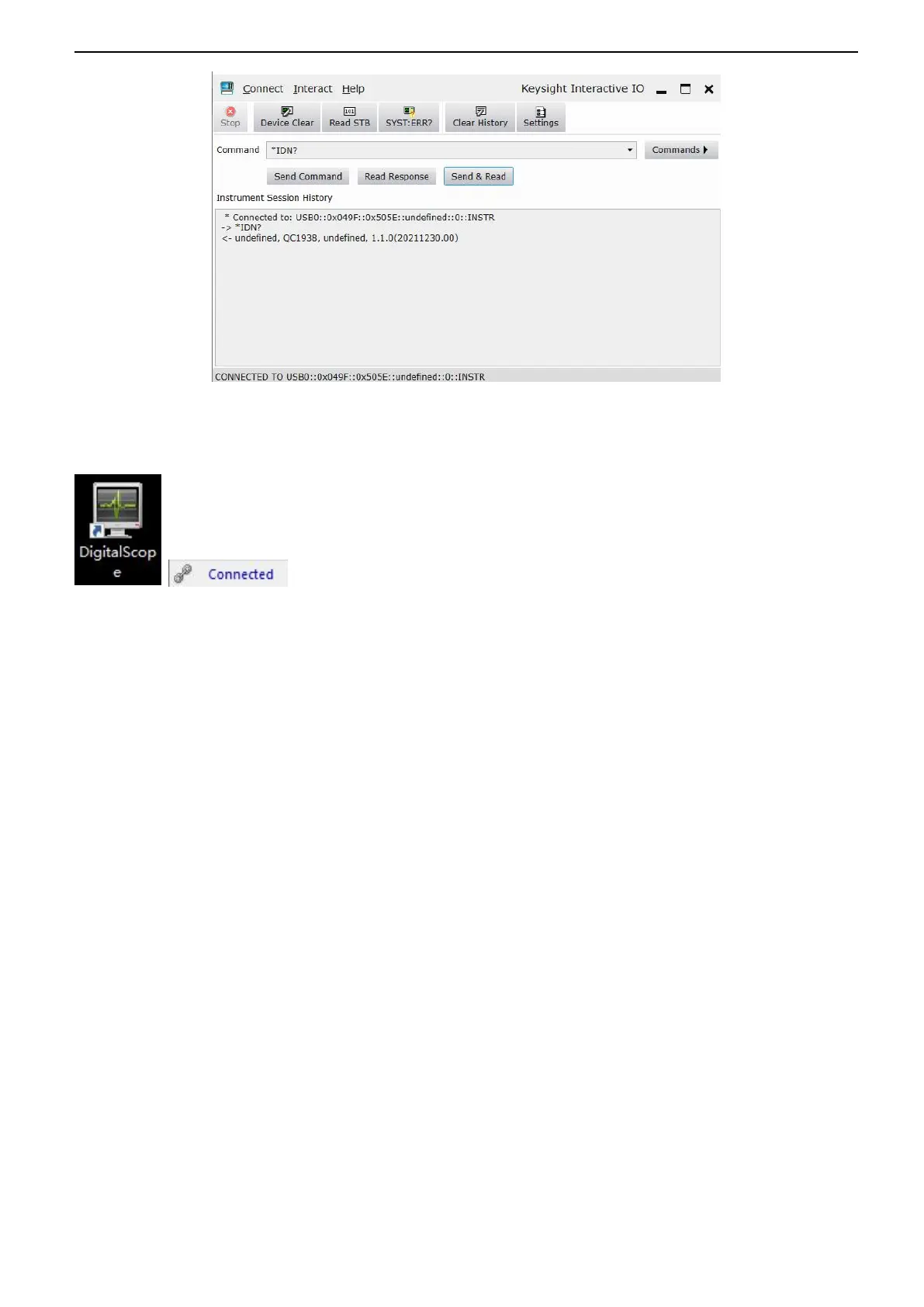

Double-click to open the host computer software, and "Connected" is displayed in the lower left corner of the interface. At
this point, the host computer has been connected.
5. Troubleshooting
1. If the oscilloscope does not start up at power on, follow these steps:
1) Check the power cord to verify it has been connected properly;
2) Check the power on/off button to ensure it has been pushed;
3) Then restart the oscilloscope.
Contact your local digitech distributor or directly keep touch with digitech Technical Support department if the oscilloscope
still can not be turned on normally.
2. If there is no display of waveform on the screen when the oscilloscope is turned on, follow these steps:
1) Check the probe to assure its proper connection to the input BNC;
2) Check the channel switch (CH1~CH2 menu buttons) to make sure it has been turned on;
3) Check the input signal to verify it has been connected to the probe correctly;
4) Affirm that all measured circuits have signals to output;
5) Turn up the magnitude for DC signals with large magnitude;
6) In addition, you may press the Auto Measure button to perform an automatic detection of signals at first.
Contact
digitech
Technical Support department in time if there is still no display of waveform.
3. If the waveform of the input signal is distorted seriously, follow these steps:
