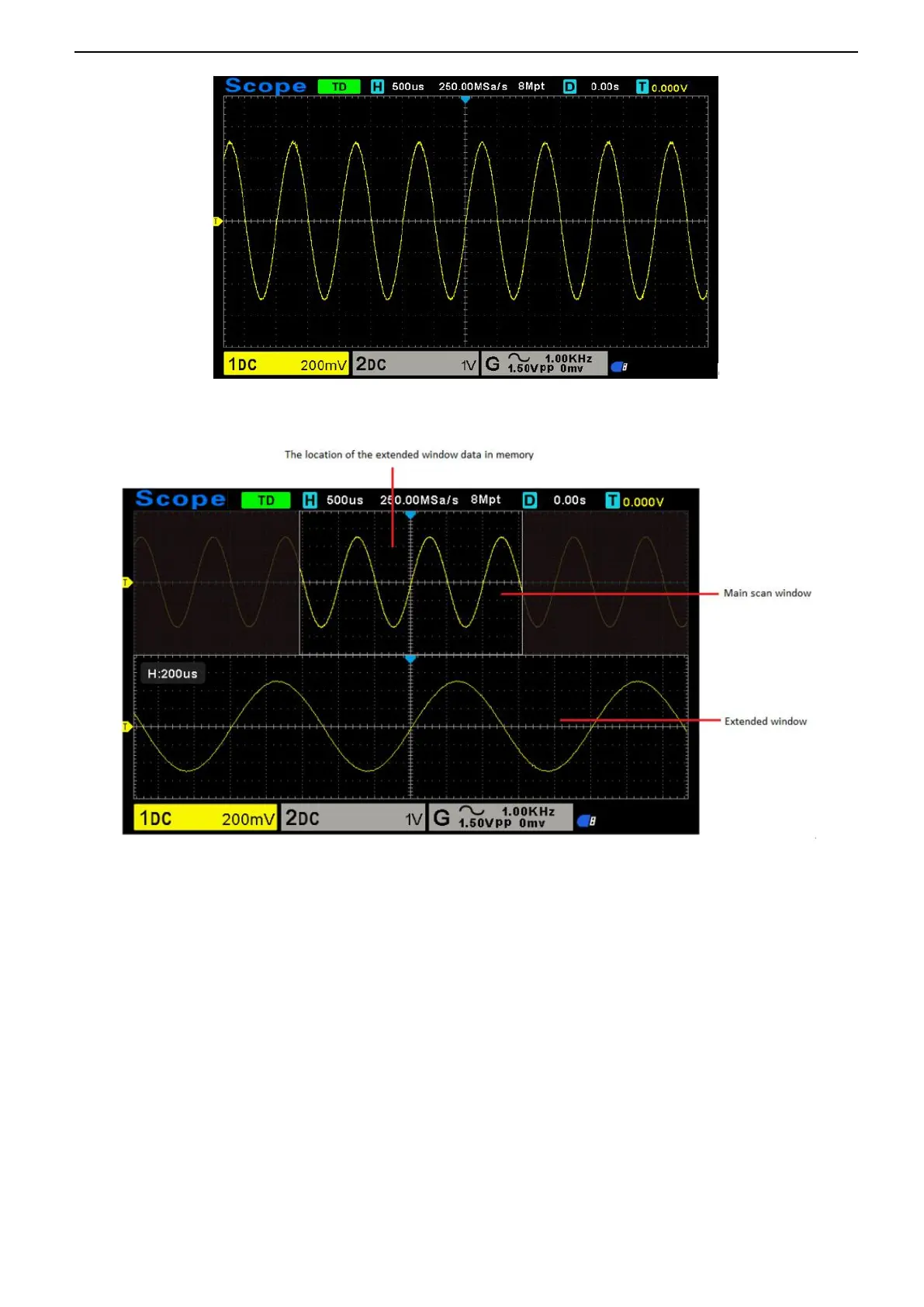

Dual-window Mode
3. Waveform Generator
The oscilloscope is equipped with waveform generator function, with one channel of arbitrary waveform output. User can
edit the arbitrary waveform or choose the regular waveform such as Sine, Ramp, Square, Exponent, Noise, DC and Arb
waveform.
3.1. Set Wave Type and Parameters
1. Press the [Wave Gen] button on the front panel to open the arbitrary waveform generator function.
2. Press the Wave softkey; then turn the Multifunctional Knob to select the desired waveform and push down the knob to
confirm. Press the Wave Type softkey continually can also select the waveform type.
3. Press the Frequency softkey to set frequency, press this key repeatedly to set the Period or Frequency/Period fine, and
To Next Page
