Dish Network Receiver User Manual

Chapter 2
Page 24
Receiver Description and Installation
• Arrows/Select—Use the ARROWS and SELECT the same way as the
ARROW and
Select buttons on Remote Control 1.
•
Power—Press the POWER button to turn the TV1 programming on or off
to the nearby TV.
IR Sensor
The INFRARED (IR) SENSOR receives IR signals from Remote Control 1.

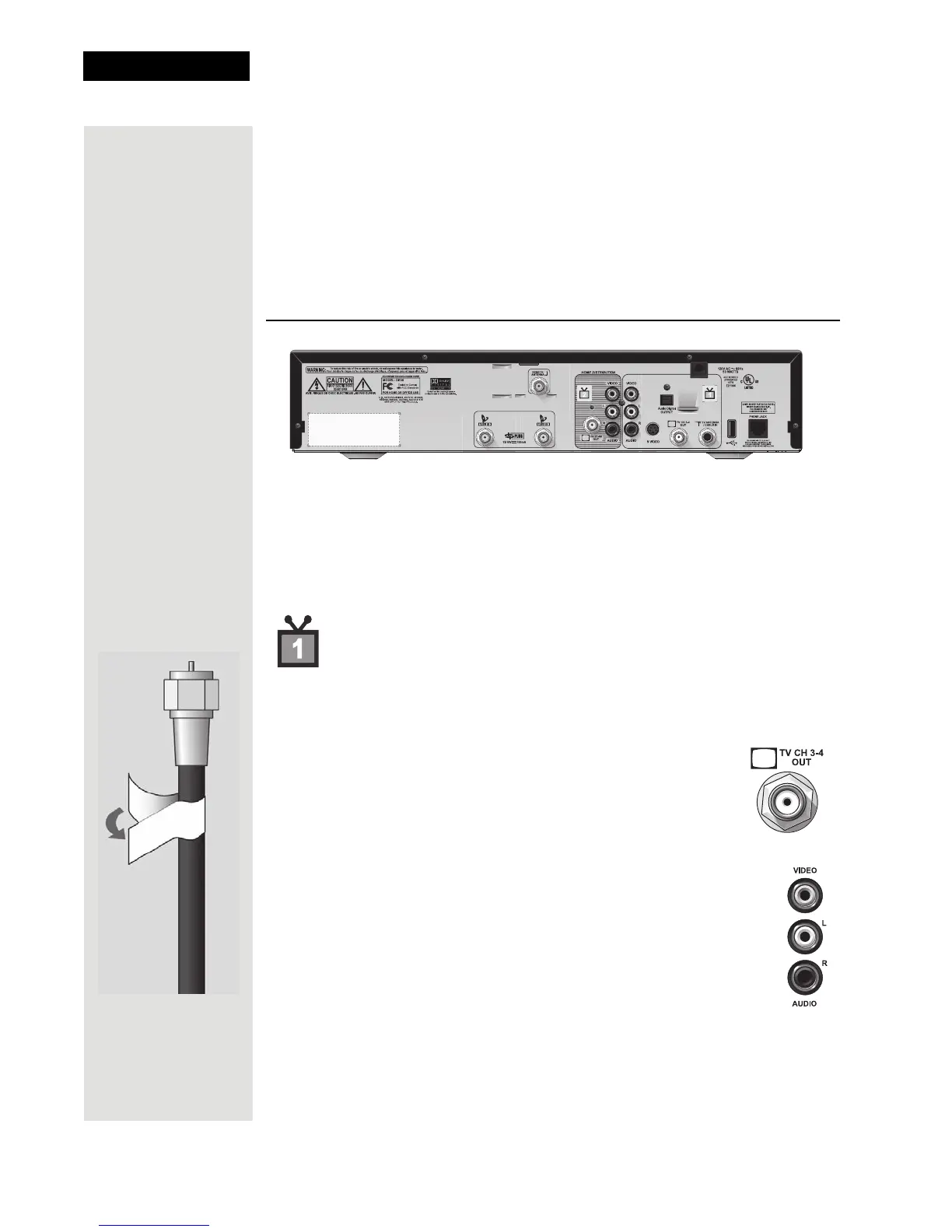

Receiver Back Panel
The receiver connections on the back panel are placed in three groups:
•
TV1 Connections—Use these connections with the nearby TV.
•
TV2 Connections—Use these connections with the remote TV(s).
•
Other Connections—Use these connections with the dish antenna, UHF
antenna, and phone line.
TV1 Connections
The following connections provide TV1 menus and programming to the nearby
TV.
Tip: The six coaxial
connections on the
back of your
receiver are color
coded to make the
connectors easy to
identify. Inside the
front cover of this
guide are stickers
that are color
coded the same
way as the coaxial
connections. See
the installation
instructions
starting on page 29
for information on
how to use the
stickers that go on
the coaxial cables.
TV CH 3–4 Out
The TV CH 3–4 connection provides good quality video and
mono (non-stereo) audio to your nearby TV. Use a coaxial
cable to make the connection. The
TV CH 3–4 connection is
color coded white.
RCA Out
The RCA audio/video outputs provide high quality picture and stereo
sound to your nearby TV (if your TV has these connections). Use an
RCA-type cable assembly to make the connection. If the TV has
only one input for this type of audio, connect it to the right (R) phono
(RCA) audio output on the receiver.
