Duplo DBM-120 Service Manual

1-8 11C-M12M0-0004-0

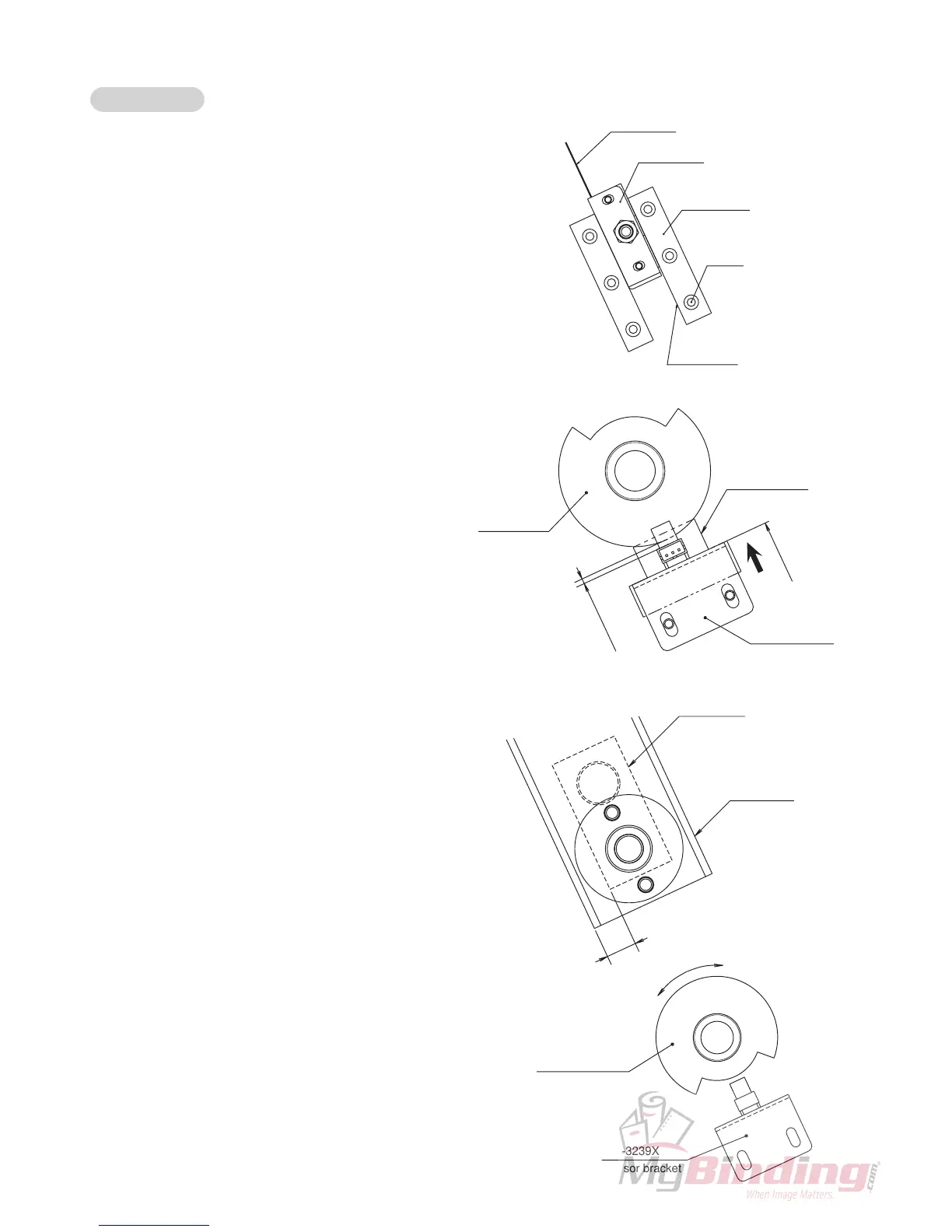

1-5. Folding Knife/Folding Roller Mechanism
Adjustments
(1) Adjusting the sliding part of the knife base
Adjust the guide so that the knife base moves over
the sliding part smoothly without shaking.
Knife
11C-3004X
Knife base
11C-3006X
Sliding part
Screw
Guide
92W-1047X
(2) Adjusting the height of the home sensor of the
folding knife
Touch the sensor bracket against the edge of the
square hole of the frame F and fix it.
(3) Adjusting the home position of the folding knife
To stop the folding knife at the lower limit position,
adjust so that the arm and crank unit are parallel,
and adjust the position of the round plate unit.
∗ In the “Parts Catalog”, the crank unit is part of
the shaft unit (11C-3019X).
Sensor bracket
99J-3239X
Touch
Round plate
unit
99J-3226X
About 1 mm
Square hole of
frame F
Round plate unit
99J-3226X
Sensor bracket
99J-3239X
Parallel
Crank unit
11C-3021X
Arm
99J-3214X
