1-3
11C-M12M0-0004-0

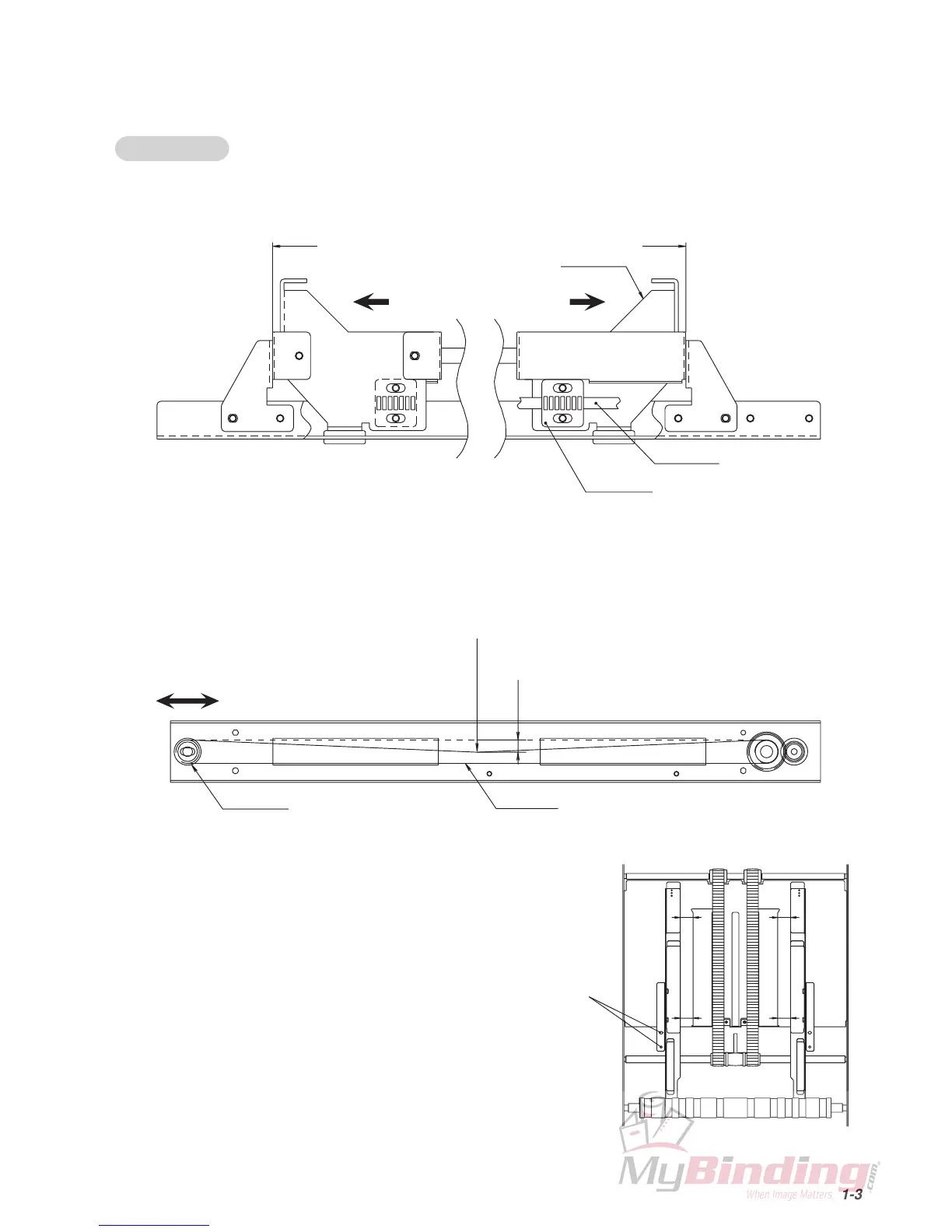

1-3. Side Jogger Mechanism
The timing belt moves forward and backward from the rotating movements of the stepping motor.
The jog plate pushes in the paper.
Adjustments
(1) Fixing the STS belt and bracket
With the bracket touches against the two sides, fix the plate and STS belt.
(2) Adjusting the tension of the STS belt
Adjust the position of the pulley unit so that the belt slacks by 10 mm when a pressure of 0.98 N (100 gf) is
applied.
(3) Adjusting the parallelity of the jog plate
Adjust the distance (difference between A and A'
and that between B and B') between the groove of
the guide plate and jog plate to below 0.5 mm.
Bracket
11C-1635X
Touch
Plate
11C-1637X
STS belt
014-10386
Touch
A
A'
B
B'
Attaching screws
0.98 N (100 gf)
014-10386
11C-1656X
STS belt
Pulley unit
10 mm
