1-4
11C-M12M0-0004-0
1-4. Stapler/Clincher Mechanism
The stapler unit staples the paper while the crank shaft makes one round by the DC motor, and at the same time, the
cam drives the clincher to bend the staple flat.
Adjustments

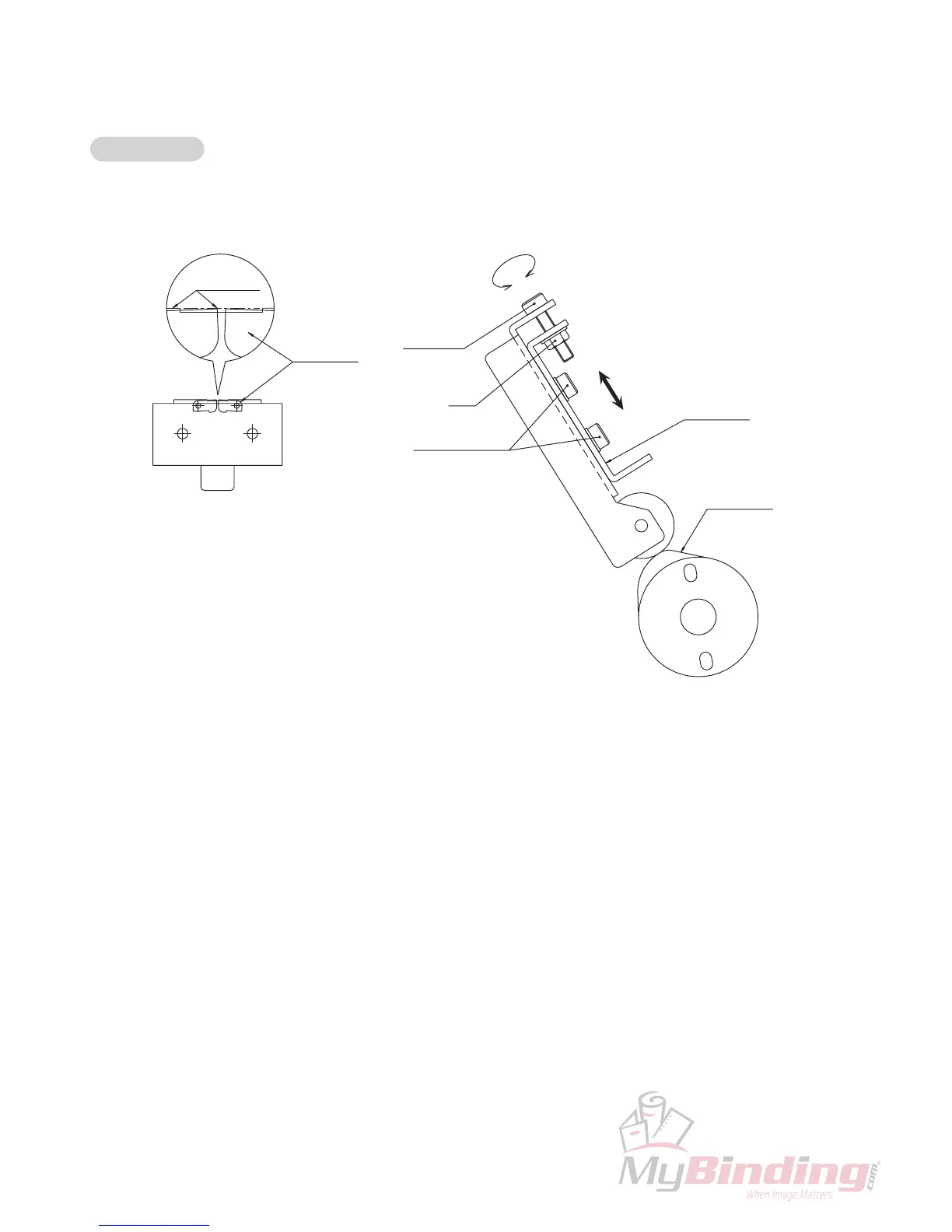

(1) Adjusting the height of the clincher
When the cam is at the top dead point, adjust so that the upper surface of the clinch plate and tip of the clincher
are of the same level.
Clinch plate
11C-2335X
CFR4 × 20
FN4
(Apply screwlock)
CFR4 × 8, W4
Cam
11C-2051X
11C-2308X
Clincher
Even ± 0.2
To Next Page
