8 Installation
Prior to working on the unit or in case of danger, disconnect it from the mains.
8.1 Connect the hoses and lay correctly
Install the hoses so they are as short as possible and with sufficient incline.
Downstream of separation units, a positive suction head of 150 mm must be maintained in order
to prevent backflow.
❯
Cut the hoses to the required length.
❯
Screw hose sleeves onto the hose ends.
❯
Connect the hoses to the DürrConnect connections and secure them with hose clips.
❯
Connect the hoses on the inlet and outlet sides.

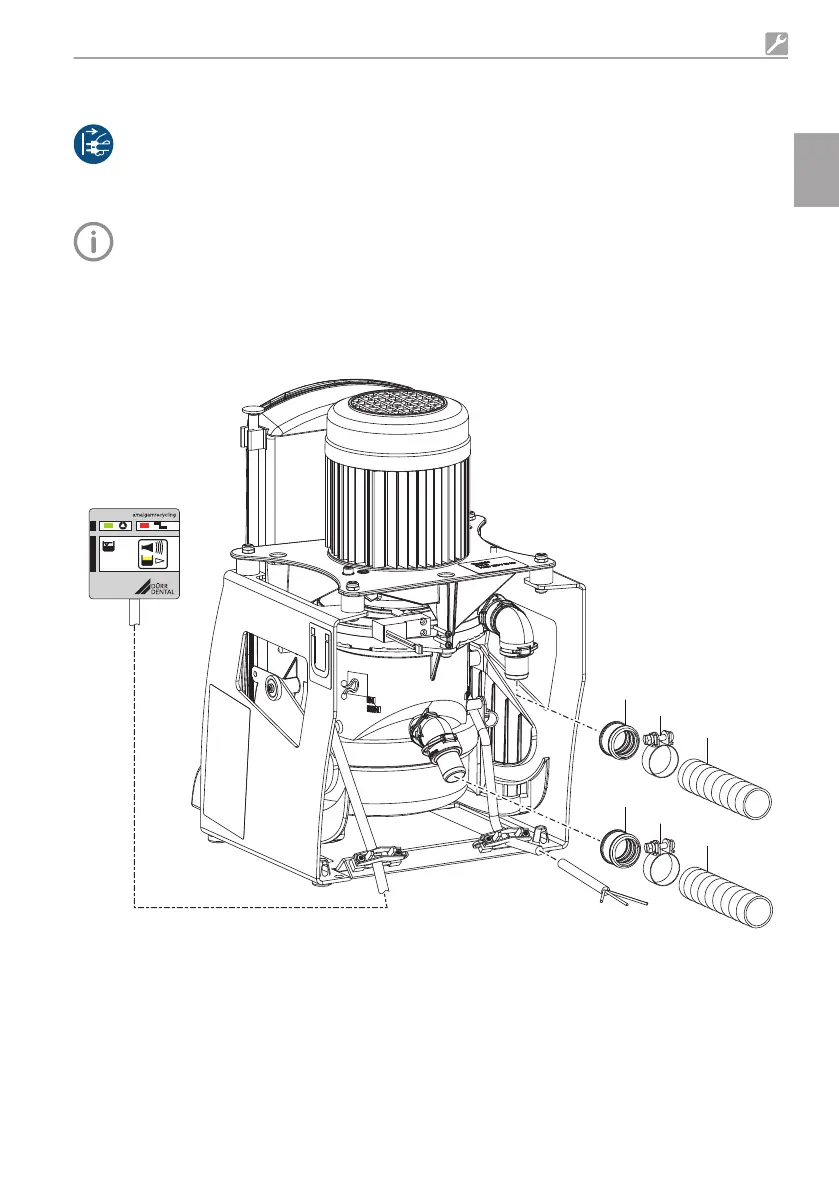

1 Hose sleeve
2 Hose clamp
3 Outlet hose ø 20 mm
4 Inlet hose ø 20 mm
Assembly
9000-606-44/30 2011V003 19
EN
