Figure 4-43 Installing the LCD unit (4)
4.28 Display hinges
4.28.1 Removing the display hinges
To remove the display hinges, follow the steps below and refer to Figure 4-
44.
1. Release the following screws and remove the left & right hinges.
■ S2x2.5BT x2 (Described as “1” in the figure)
■ SH2.5x2.5BT x4 (Described as “2” in the figure)
■ F2.5x5BT x4 (Described as “3” in the figure)

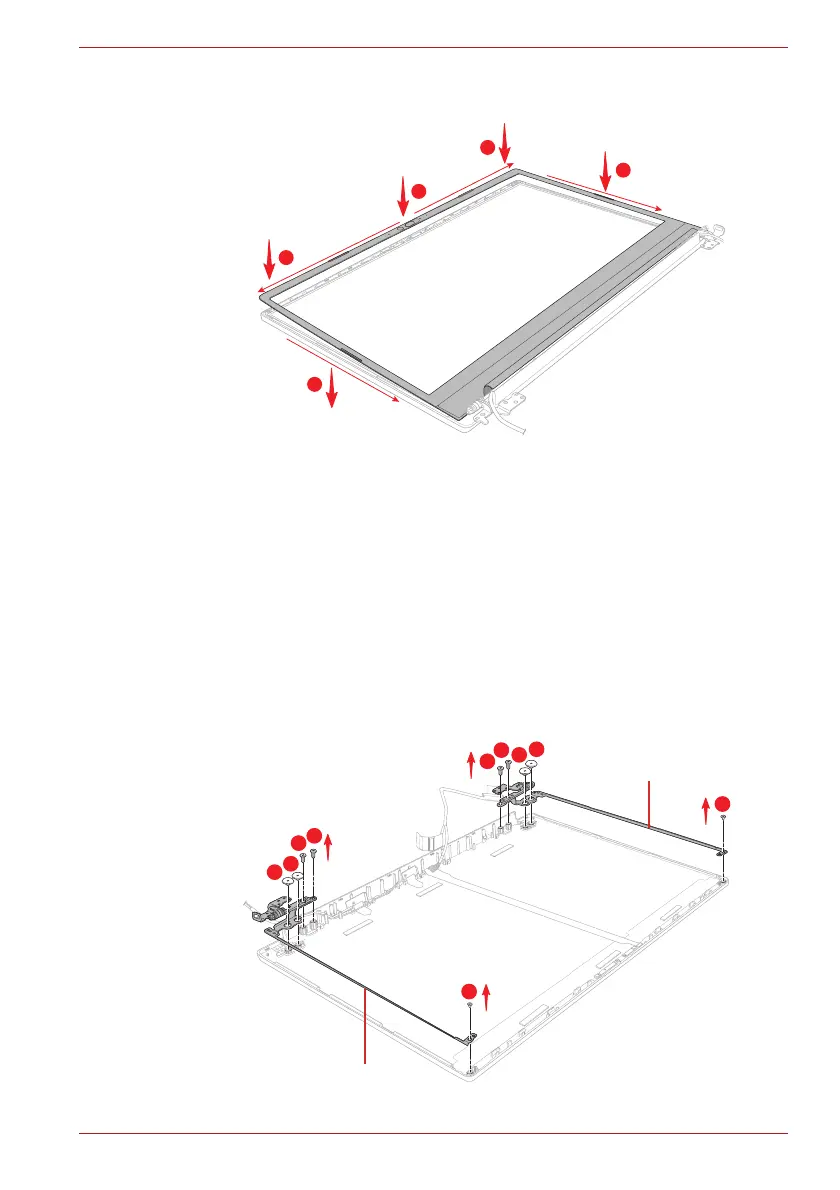

Figure 4-44 Removing the display hinges
1
1
2
3
3
2
3
2
1
1
2
2
3
3
3
display hinge
display hinge
