dynabook TECRA A50-J Series User Manual

Maintenance Manual (960-946) 4-17
Replacement Procedures

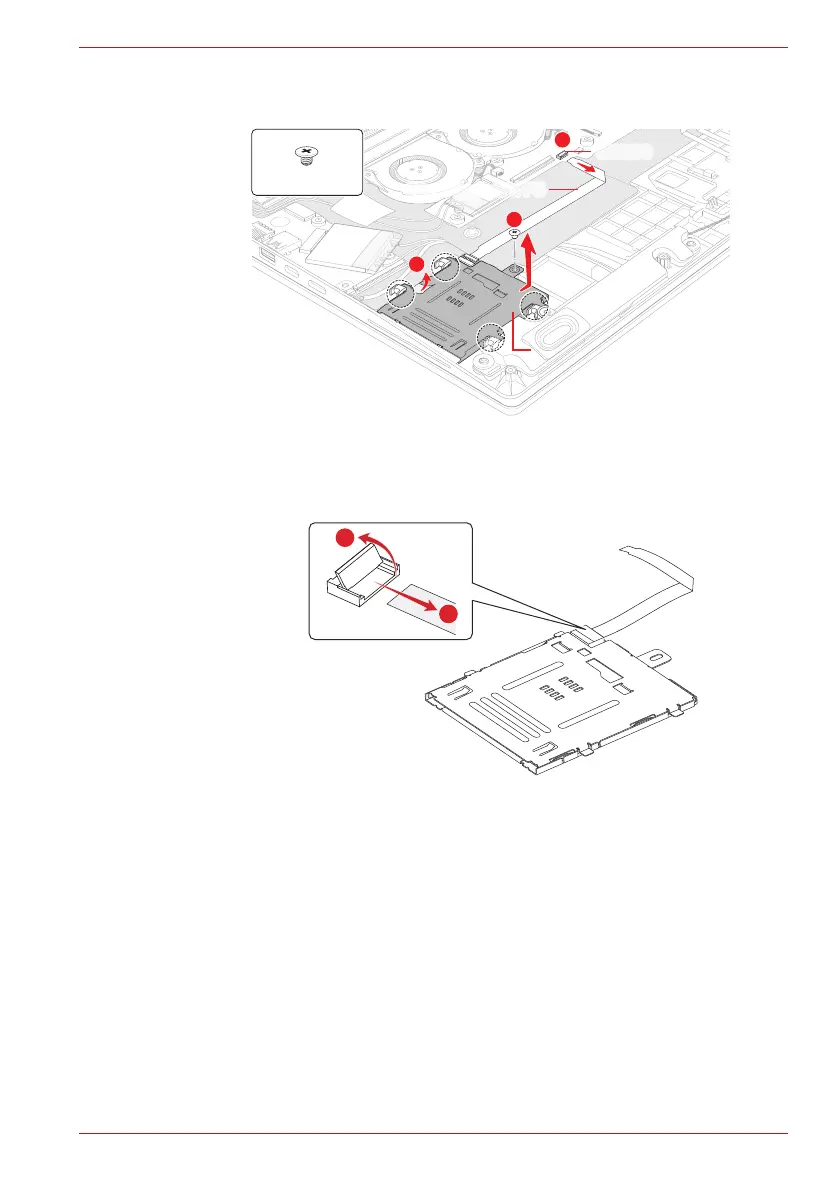

Figure 4-15 Removing the Smart Card slot (3)
5. Disconnect the Smart Card FFC from the connector on the Smart Card
slot.
Figure 4-16 Removing the Smart Card slot (4)
4.15.2 Installing the Smart Card slot
To install the Smart Card slot, follow the steps below and refer to Figure 4-
13 to Figure 4-16.
1. Connect the Smart Card FFC to the connector on the Smart Card slot.
2. Set the Smart Card slot in place and secure it the with the screw.
3. Connect the Smart Card FFC to the connector CN2170 on the system
board.
4. Stick the AL TAPE and INSU CUSHION SC in place.
5. Connect the FPC/FFC to the connector CN9600 on the SYSTEM board
and CN9640 on the USB board.
3
2
1
C
FF
C
C
tC
CN2170
Smart Card Slot FFC
S2x2BT
Smart Card slotSmart Card slotSmart Card Slot
2
1
