E-one Extreme Series User Manual

69

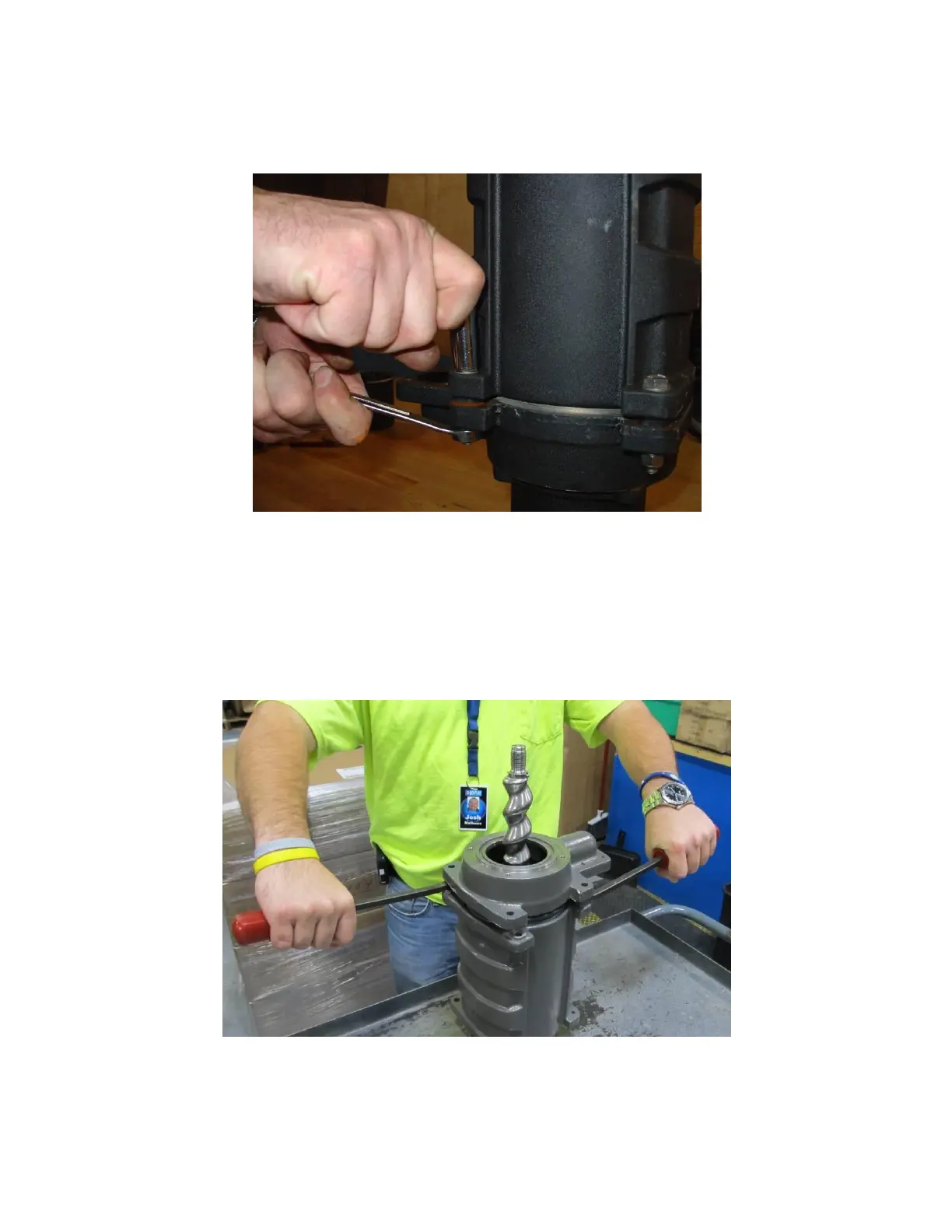

6. Using a ½” deep-well socket and a ½” wrench, remove the four bolts holding the Motor
Housing to Motor Head.
Figure 11 - 1
7. Turn the pump assembly upside down on a bench. Be careful not to pinch the motor
wires between the motor casting and the surface that you are working on.
8. Remove the Motor Head from the Motor Housing by using two pry bars.
Figure 11 – 2
