Upper panel (black)
Display
The display is a back-lit LCD that will display information
in four lines of twenty characters and in four different
languages: English, French, Portuguese, and Spanish. See
Figure 1-8.
Utilizing a 3-level, nested menu structure, items are
structured in levels one and two and parameters are in
level three. The main menu is the default display; refer to
Table 5-2 for the complete nested menu. When a menu is
displayed, the current menu item is indicated by a cursor
on the display screen. Parameter values appear on the LCD,
right justified, with a decimal point shown as necessary.
Note: Only four line items appear on the display at one
time. Moving the cursor down from the fourth line
will shift the line items up one item at a time.
The LCD display panel contrast is adjustable. Press and
hold the Function key, then press the scroll up arrow key to
increase or the scroll down arrow key to decrease contrast.
Keypad
The front panel interface for the CL-6 control uses a 16-key
touchpad laid out in a diamond pattern. Refer to Figure 1-9.
The keypad allows for three modes of interface with the
three levels of nested menu structure: numeric keys, short-
cut keys, and scroll keys.
Numeric keys
To use the keypad as a numeric keypad to enter function
codes (FC) or parameter values, press the Function or Edit/
Reset keys. When the numeric keying is complete, press
Enter.
Use function codes to quickly program and read Level
3 parameters. To display a parameter on the LCD via a
function code (FC), press Function, key in the function
code (FC) number, then press Enter. For security, certain
parameters, as noted in Table 4-1, can only be accessed via
the function code method. Also, certain parameters and
data, such as alarms, custom logic, histograms, and profiler
data, can only be accessed using ProView™ NXG interface
software.
See Table 5-2 for a list of the functions grouped by menu
level and Table 5-3 for a numerical listing of function codes.

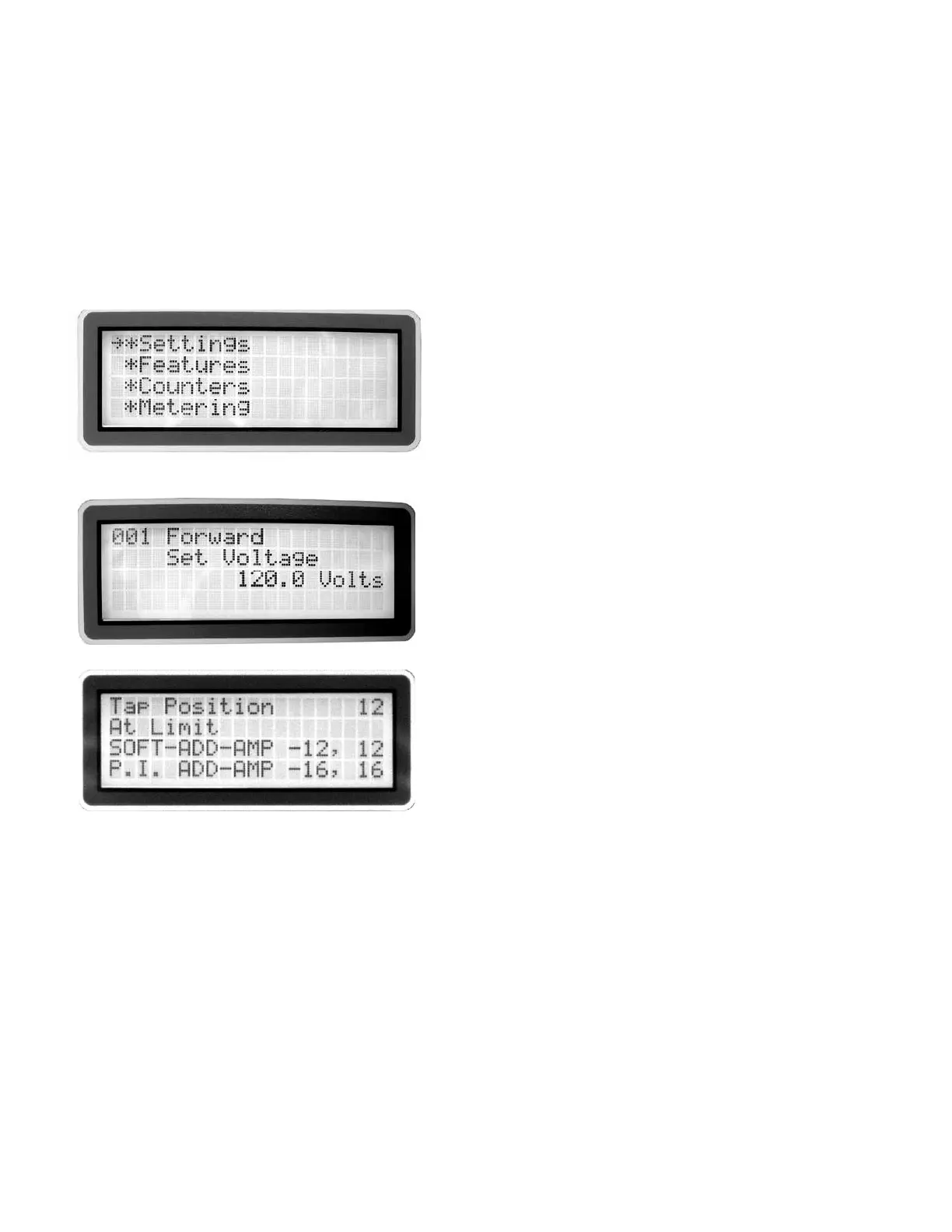

Figure 1-8. Main Menu, Forward Direction, and
Metering-PLUS Tap Position screens.
10
CL-6 SERIES CONTROL INSTALLATION, OPERATION, AND MAINTENANCE INSTRUCTIONS MN225016EN January 2016
