Eaton 9PXM User Manual

6 4–20kVA Users Guide P-164000669 4–20kVA Users Guide P-164000669—Rev 09

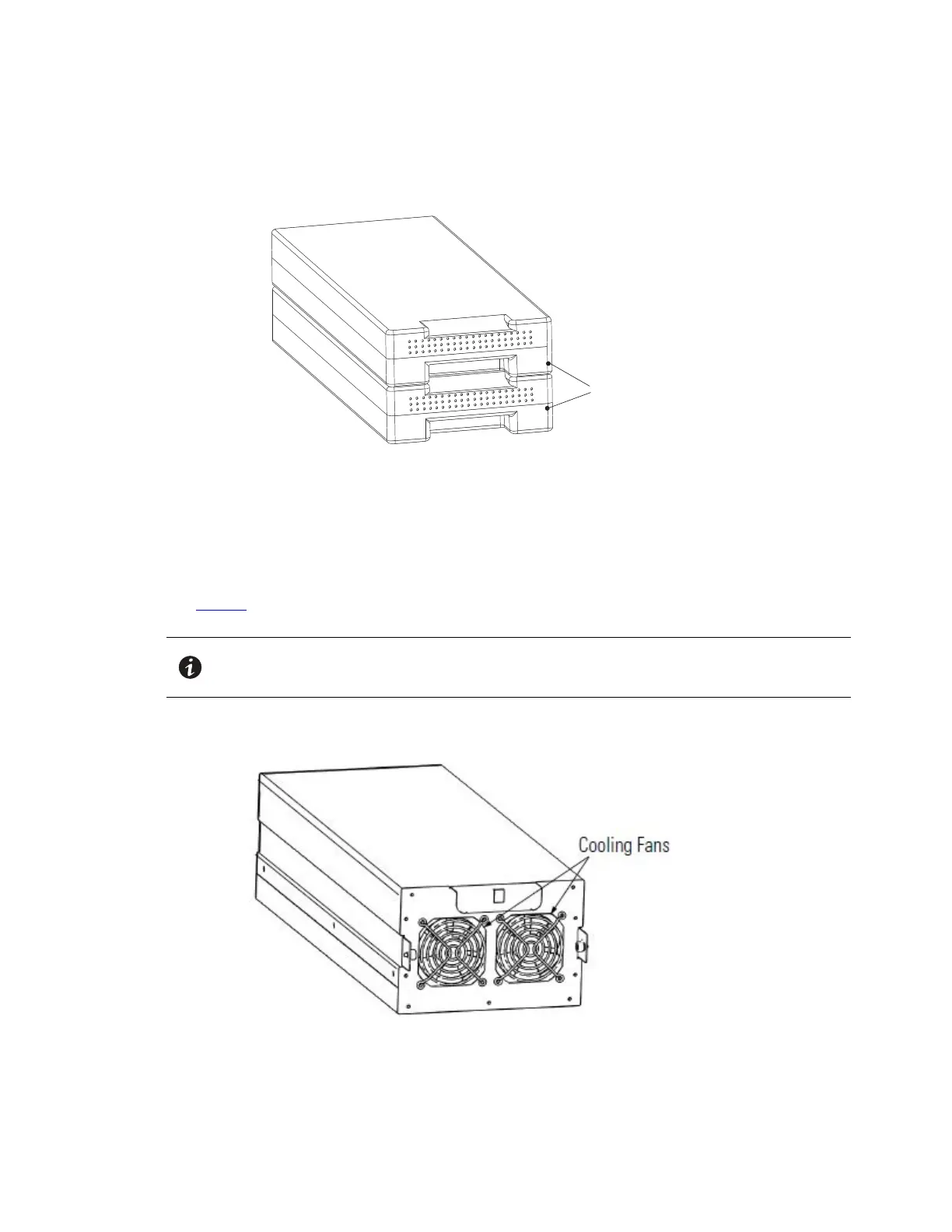

Figure 4. Battery Modules per Slot
Battery Modules (2)
Uninterruptible Power Modules (UPM)
The eight-slot 9PXM chassis can accommodate a maximum of four power modules and the twelve-slot can
contain up to six modules. Each 4kVA has a built in 5 amp battery charger and is cooled by two cooling fans.
(see Figure 5 ). One power module (UPM) is able to fully charge five 9PXM battery strings ( 10 9PXM battery
modules).
NOTE You must install one 9PXM battery string (2 battery modules) in the main UPS chassis
for every power module present or the UPS will sound an “Not Enough Battery” alarm
indication.
Figure 5. Uninterruptible Power Module
Super Charger Modules (Optional)
Physical Features

Eaton 9PXM Specifications

General

Topology	Double Conversion Online
Battery Type	Valve-Regulated Lead Acid (VRLA)
Power Factor	0.9
Frequency	50/60 Hz
Efficiency	Up to 96%
Input Voltage	208/220/230/240 VAC (single-phase); 208/400/415 VAC (three-phase)
Output Voltage	208/220/230/240 VAC (single-phase); 208/400/415 VAC (three-phase)
Communication Ports	USB, RS-232, Optional Network Card
Operating Temperature	0 to 40°C
Weight	Varies by model
Dimensions	Varies by model
