4–20kVA Users Guide P-164000669 4–20kVA Users Guide P-164000669—Rev 09 17
CChhaapptteerr 33 UUPPSS WWiitthh EExxtteerrnnaall BByyppaassss IInnssttaallllaattiioonn
33..11 IInnssttaallllaattiioonn ooff tthhee UUPPSS wwiitthh aann EExxtteerrnnaall BByyppaassss SSwwiittcchh
The Eaton 9PXM UPS input power is hardwired through a conduit to either a main power source circuit breaker or to an optional
bypass switch. It is recommended that you install an Eaton® Bypass Power Module (BPM) to enable power transfer during
maintenance or UPS downtime.
WARNING
Risk of electrical shock. Only qualified service personnel (such as a licensed electrician) should perform the
electrical installation in this section.
NOTE For installation and configuration of the Eaton bypass switch refer to the manual “Eaton
Bypass Power Module (BPM) User’s Guide P-164000628” supplied with the switch or
on the Eaton website https://www.eaton.com/9PXM .
If a bypass switch is used, both UPS input and UPS output must be hardwired through separate conduits to the
bypass switch, as shown in Figure 14.

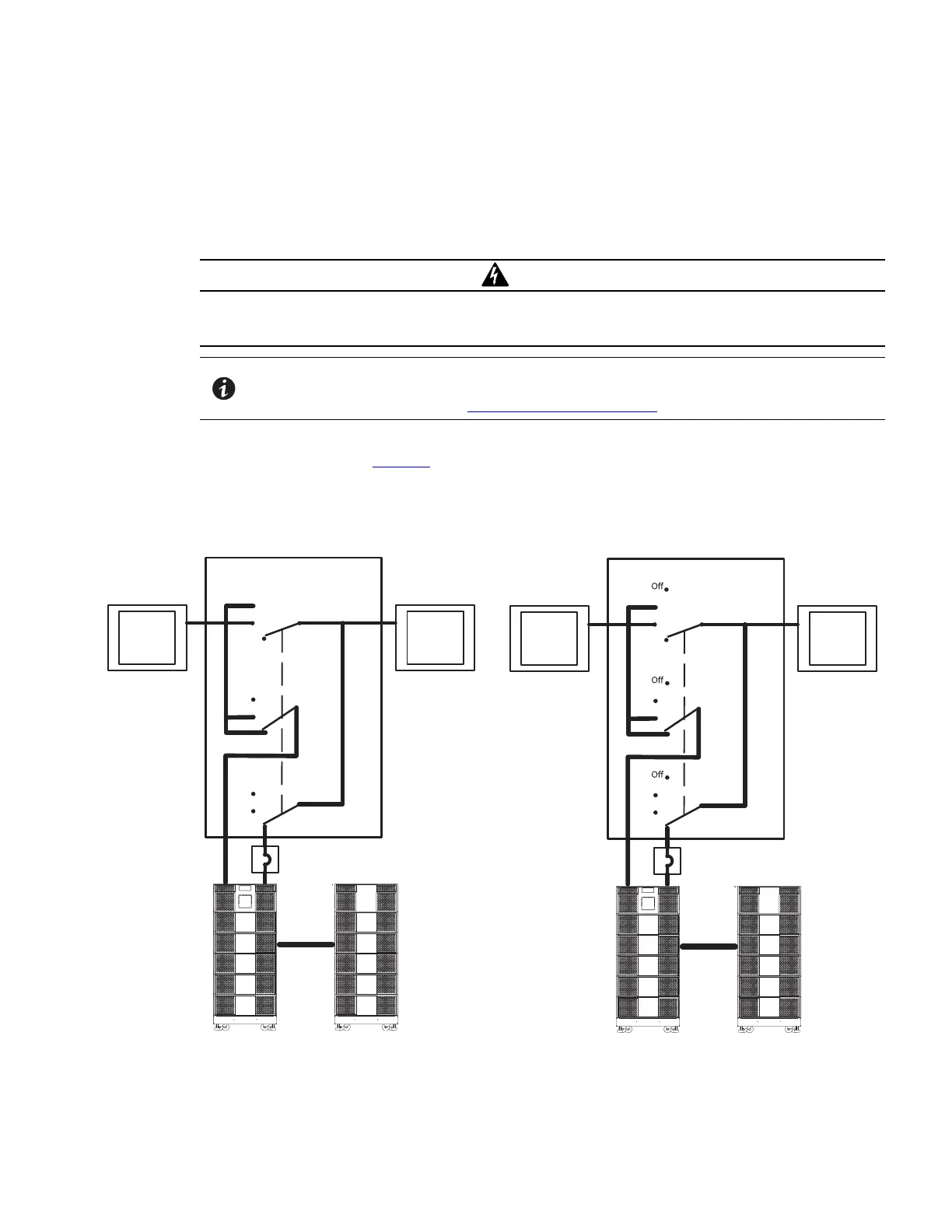

Figure 14. Typical Installation with a Bypass Switch
External Bypass Switch
External Bypass Switch
BPM Design BPE Design
MBB Option
Service
Line
Service
Line
UPS
UPS
Service
Line
UPS
User-Supplied
(if required)
Building
Service
Panel
Load
Distribution
Panel
(optional)
External Battery
Module
Service
Line
Service
Line
UPS
UPS
Service
Line
UPS
User-Supplied
(if required)
Building
Service
Panel
Load
Distribution
Panel
(optional)
External Battery
Module
To Next Page
