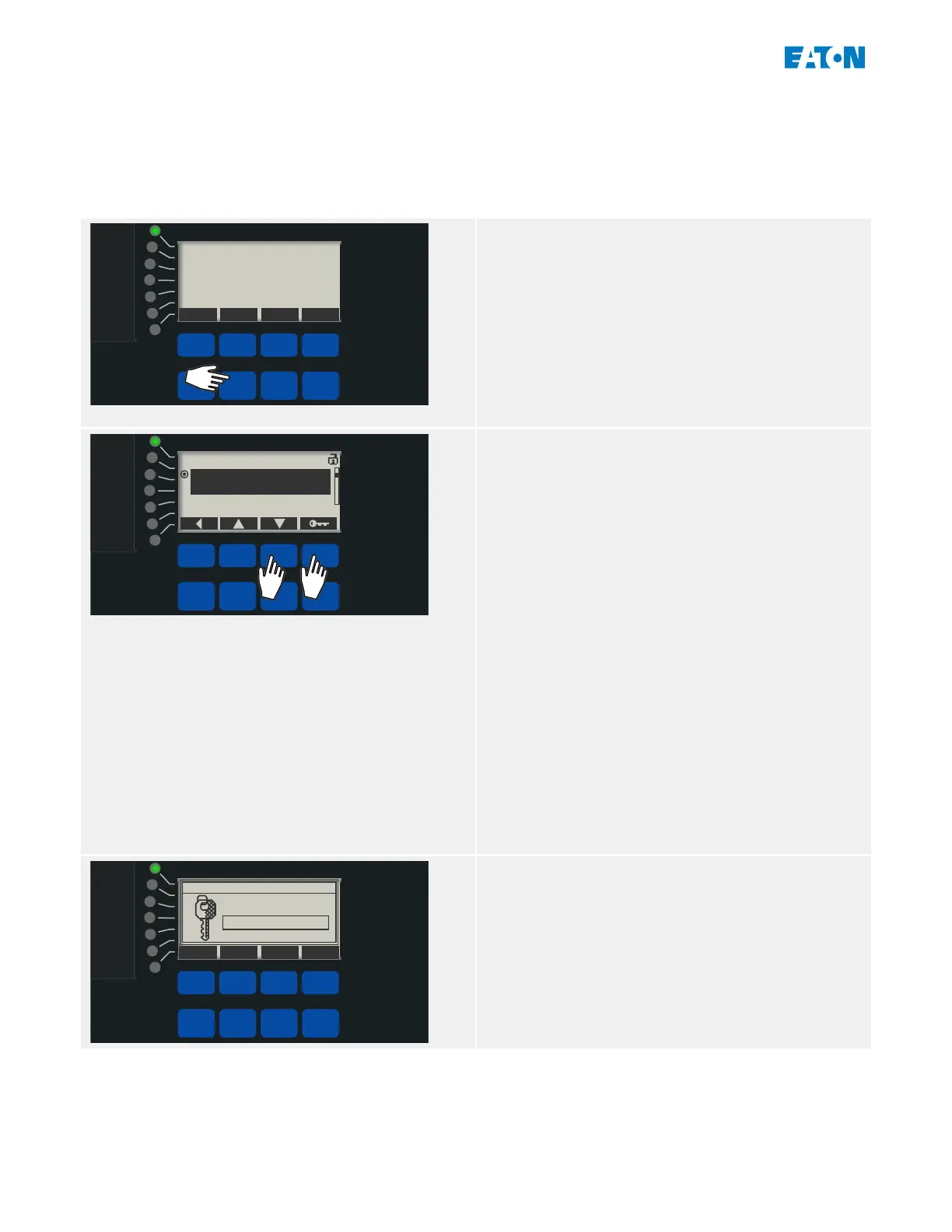

3.8 “Ack/Rst” key – Reset (Acknowledge) Latched Signals, Relay
Outputs, Trip Commands
Standard Behavior
Operational
Info
Ack/Rst
Ok
CTRL
E_FBO
MenuMeas
EDR-3000
The [Operation / Reset] menu allows to “reset”
latched signals, output relays and/or trip
commands. This menu branch can be accessed
the usual way, but there is also a short-cut:
The »Ack/Rst« key takes you there directly.
(However, it is also possible to simply
press the »Ack/Rst« key for a “long time“,
(ca. 1 second), which causes an immediate
reset, see below.)
Operational
Info
Ack/Rst
Ok
CTRL
E_FAI
Yes
Reset
ℹ All acknowledgeable LEDs will be acknowledged.
Sys.Ack LED
1.
2.
Use the Softkeys “▲” (Up) or “▼” (Down) to
select those categories of objects that you want
to reset:
• »Sys . Ack RO LED Comm Trips«: Reset the•
binary output relays, LEDs, SCADA and the
TripCommand
• »Sys . Ack LED«: Reset all (latched) LEDs•
• »Sys . Ack RO«: Reset all (latched) binary•
output relays
• »Qxx . Ack TripCmd«: Reset a previously•
given trip command (here: trip issued to
switchgear “Qxx”).
• »SSV . Ack System LED «: Reset the•
System-LED if it is reporting an error by
󰊠ashing red/green. (You can look up error
messages in the Troubleshooting Guide.)
Then press the “Key” Softkey to select the
acknowledgment of your choice.
Operational
Info
Ack/Rst
Ok
CTRL
E_FAJ
Enter Password
Prot-Lv1
*
* * *
1 2 3 4
Similar to the modi󰊟cation of a setting (see
╚═▷ “3.7 Parameter Changes – “Ok” key”) you
are asked for the password (this time, however,
level “Prot-Lv1” is su󰊡cient).
Whether there are di󰊞erent passwords for the
various access levels, or only one, or even
none, depends on the security policy of your
company. See the Technical Manual for details.
44 www.eaton.com E-Series Family Quick Start Guide
3 Quick Start – Operation via Panel
3.8 “Ack/Rst” key – Reset (Acknowledge) Latched Signals, Relay Outputs, Trip Commands
