Installation procedure
18 CBC-8000 capacitor bank control installation and operation instructions MN916001EN—October 2018 Eaton.com
Installation procedure
Initial programming prior to installation
The control must be programmed with all necessary
operating settings and parameters prior to connecting to an
energized capacitor bank.
Equipment misoperation.
Do not connect the control to an energized capacitor bank
until all control settings have been properly programmed and
verified.
Refer to the programming information for this control.
Failure to comply can result in control and capacitor bank
misoperation, equipment damage, and personal injury. C1106.0
Note: Initial programming of the control is the responsibility
of a qualified technician or engineer familiar with
control functions and programming parameters
required for the specific capacitor bank installation.
The control can be programmed with the Front Panel HMI or
by using the ProView NXG software. Please refer to the CBC-
8000 capacitor bank control ProView NXG application
software programming guide (MN916002EN) for additional
information on either programming option.
Mounting the control
Mount the control in a convenient, accessible location.
Mounting instructions are provided on the following pages.
The dimensions of the CBC-8000 control are shown in Figure
20.The weight of the CBC-8000 control is 9 pounds
(4.08 kilograms).

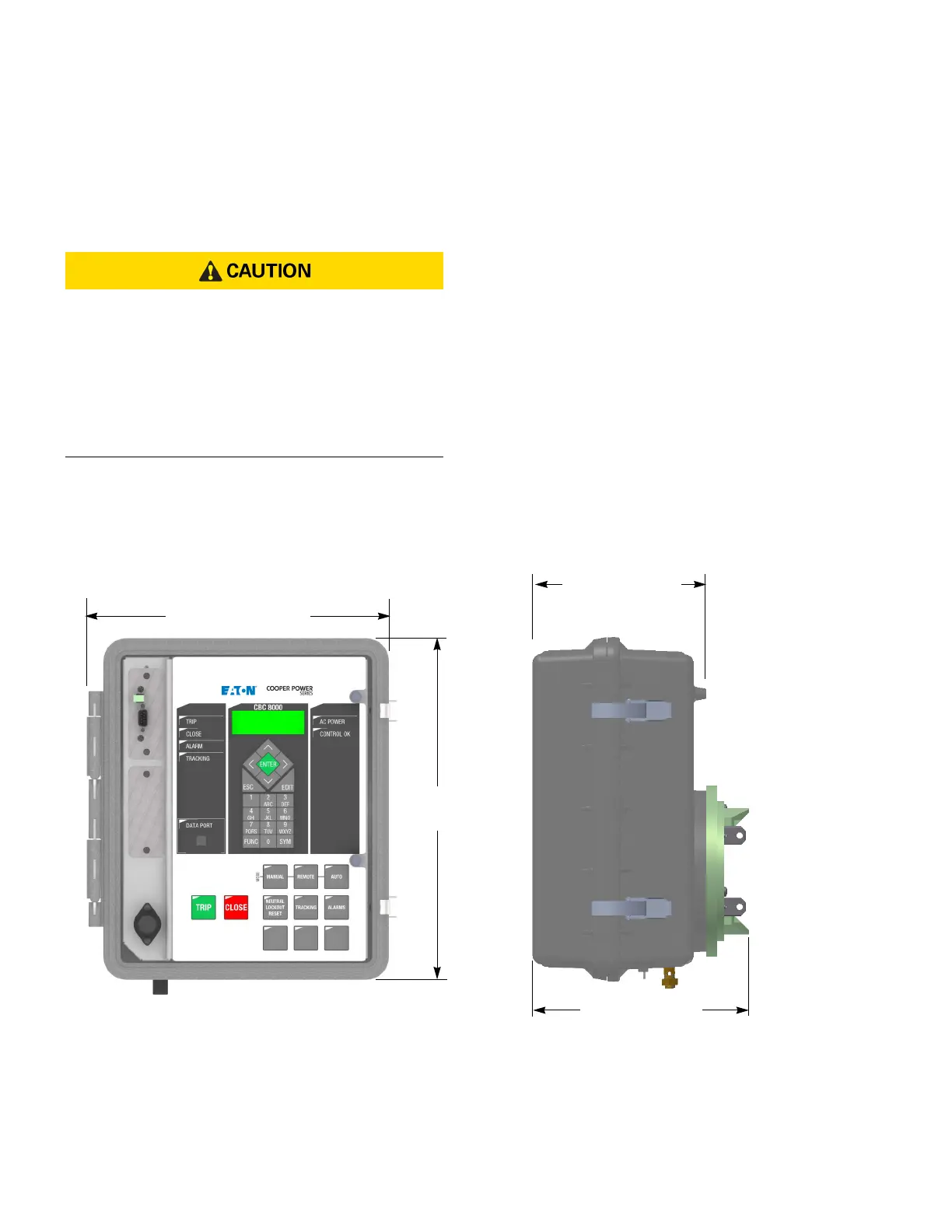

Figure 19. CBC-8000 control socket mount dimensions.
12.21” (31.01 cm)
13.93”
(35.38 cm)
7.5” (19.05 cm)
9.5” (22.86 cm)
Front view Side view
(7.0” (17.78 cm) For
controls manufactured
before October 2016)
(9.0” (24.13 cm) For
controls manufactured
before October 2016)
