Installation procedure
CBC-8000 capacitor bank control installation and operation instructions MN916001EN—October 2018 Eaton.com 19

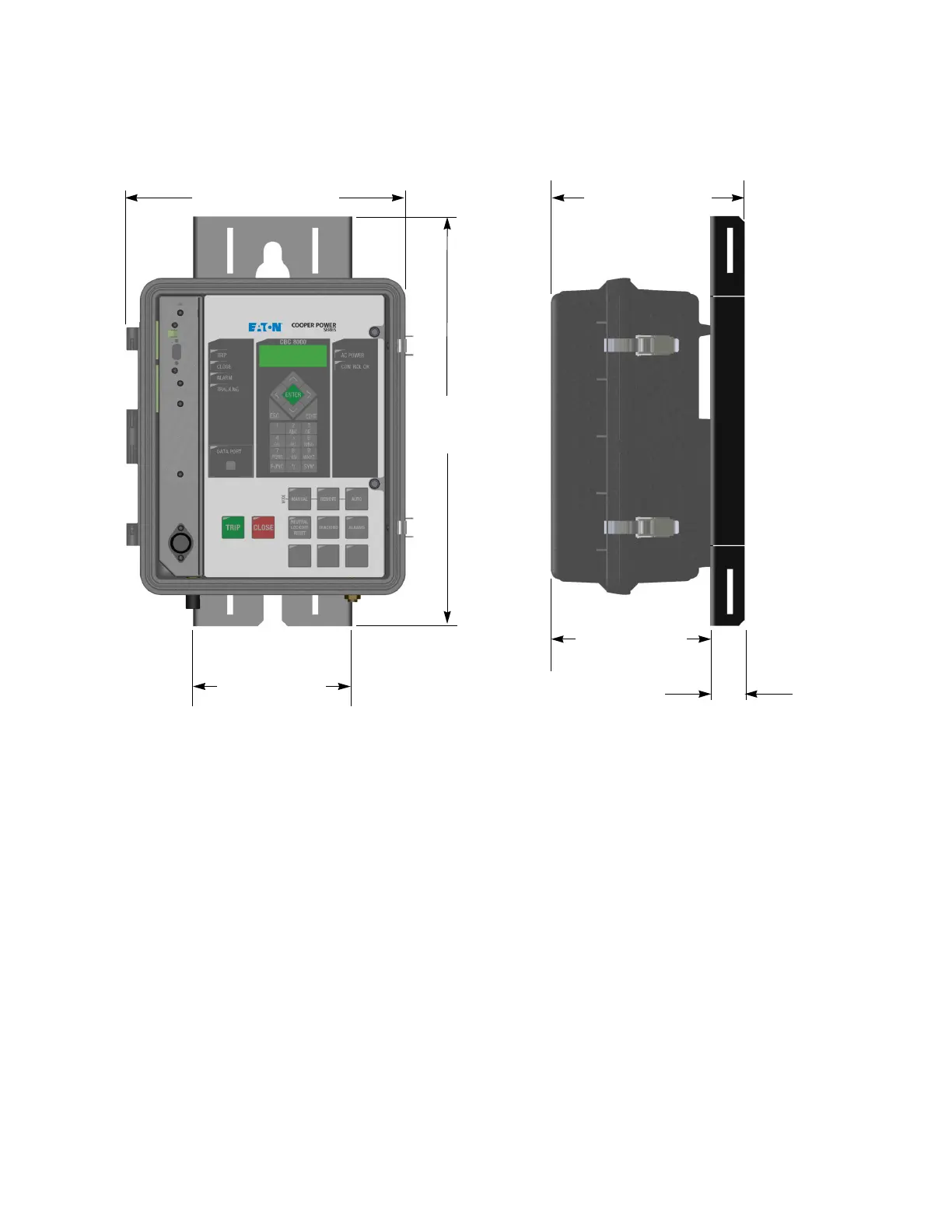

Figure 20. CBC-8000 control pole mount dimensions.
Power transformer recommendation
Eaton recommends that customers size the power
transformer for the CBC-8000 capacitor bank control and the
capacitor switches based on the needs of the capacitor
switches and standard utility practices. The capacitor
switches are the largest power draw on the transformer
even though it is only for a brief period of time.
The CBC-8000 capacitor bank control itself does not
consume much power, generally it is less than 4
W unless a
radio or modem is installed. If a radio is installed, the control
can provide up to 40 W to power the radio.
To drive the capacitor switches the CBC-8000 control is
designed to provide up to 20 A at 120 VAC, allowing the
switches to consume up to 2400 W.
12.21” (31.01 cm)
18.0”
(45.72 cm)
9.0” (24.13 cm)
1.5” (3.81 cm)
Front view Side view
7. 0 ” ( 1 7. 7 8 c m )
7.5” (19.05 cm)
(8.5” (21.59 cm) For
controls manufactured
before October 2016)
(7.0” (17.78 cm) For
controls manufactured
before October 2016)
