Installation procedure
24 CBC-8000 capacitor bank control installation and operation instructions MN916001EN—October 2018 Eaton.com
Wiring harness options
Eaton’s Cooper Power series offers the following cable
assembles in 40 foot lengths for use with the control:
• 5 Wire Harness – CBC-CTRLCBL5P-40 (3/8” diameter)
• 7 Wire Harness – CBC-CTRLCBL7P-40 (3/8” diameter)
• 8 Wire Harness – CBC-SENCBL8P-40 (3/8” diameter)
• 14 Wire Harness – CBC-CTRLSEN14P-40 (3/4” diameter)
A wiring harness and DIN connector are required to use the
CBC-8000 control’s sensor control capabilities.
5 Wire harness
The CBC-CTRLCBL5P-40 wiring harness is used with the
control’s 5-pin DIN connector. This wiring harness includes
mating connector MS3106F16S-8S.
The DIN pin assignments and wire colors are associated as
follows:
DIN Pin Wire Color
ABlack
BWhite
CRed
D Green
E—
7 Wire harness
The CBC-CTRLCBL7P-40 wiring harness is used with the
control’s 7-pin DIN connector. This wiring harness includes
mating connector MS3106F16S-1S.
The DIN pin assignments and wire colors are associated as
follows:
DIN pin Wire color
ABlack
BGreen
CRed
DBlue
E Yellow
F Brown
GWhite
8 Wire harness
The CBC-SENCBL8P-40 wiring harness is used with the
control’s 8-pin DIN connector. This wiring harness includes
mating connector MS3106F20-7S.
The DIN pin assignments and wire colors are associated as
follows:
DIN pin Wire color
A Red and White Stripe
B Yellow and White Stripe
C Orange and White Stripe
D Brown
E Black and White Stripe
F Brown and White Stripe
G Yellow
HBlue

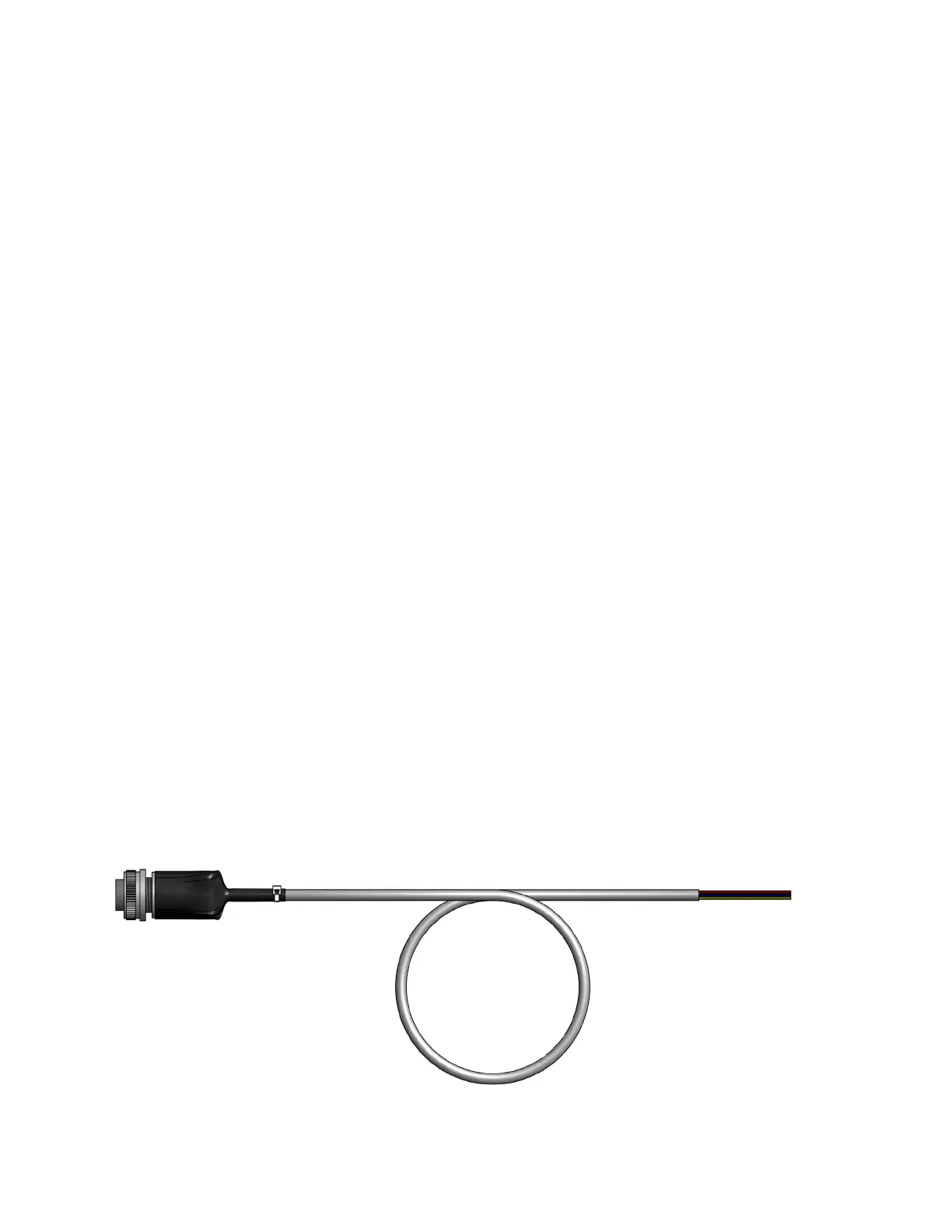

Figure 26. 40-foot wiring harness.
