Installation procedure
CBC-8000 capacitor bank control installation and operation instructions MN916001EN—October 2018 Eaton.com 31
Eaton’s Cooper Power series junction box
installation
The junction box facilitates wiring the CBC-8000 control to
the capacitor bank switches and sensors. Wiring diagrams
for using a Eaton’s Cooper Power series junction box with
the CBC-8000 control are shown in
Figure 36 on page 31,
Figure 37 on page 32 and Figure 38 on page 33.
These wiring diagrams show how to wire a CBC-8000 control
to switches and sensors by using one of three different
Eaton’s Cooper Power series junction boxes.
For information about wiring line and neutral current sensors
to the Eaton’s Cooper Power series junction box, see
Table 7
and Table 8.
Equipment damage.
The maximum input voltage that can be applied to sensor
inputs in the control is 10 V RMS.
Failure to comply may result in equipment damage. C1105.0
Table 8 lists the wiring requirements for the neutral current
sensor:

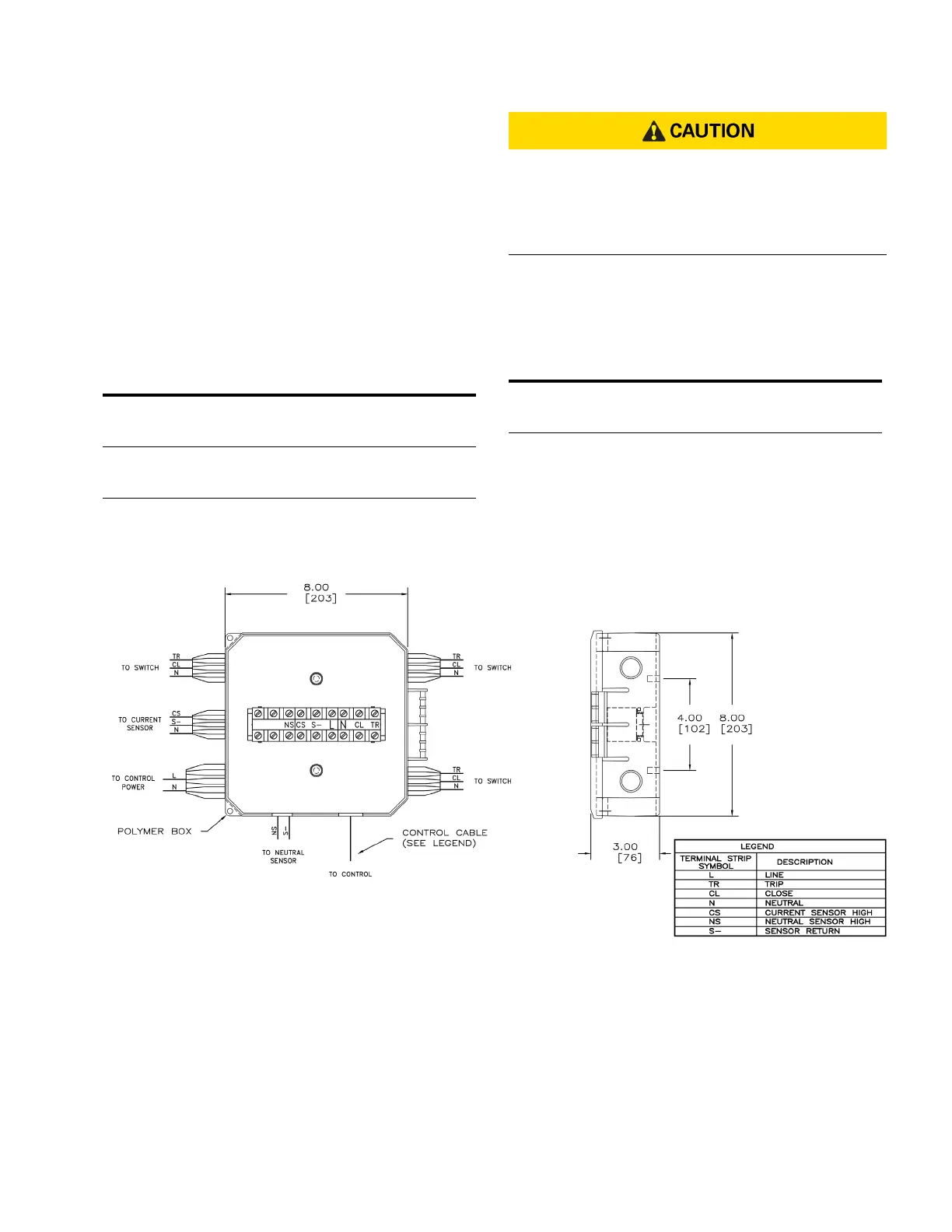

Figure 36. CBC-8000 control and Eaton’s single-phase current/neutral current sensor junction box wiring diagram.
Table 7. Line current sensor wiring.
Sensor Wiring
Fisher Pierce Series 1301 N = Green
S+ = Black
S- = White
Lindsey Multicore Sensor N = Bare
S+ = Black
S- = Red
Table 8. Neutral current sensor wiring.
Sensor Wiring
Sentran N = N/A
S+ = Black
S- = White
To Next Page
