Eaton Remote Power Panel User Manual

Installation
Eaton Remote Power Panel (RPP) User’s Guide 164202125—Rev 5 www.eaton.com/powerquality 11

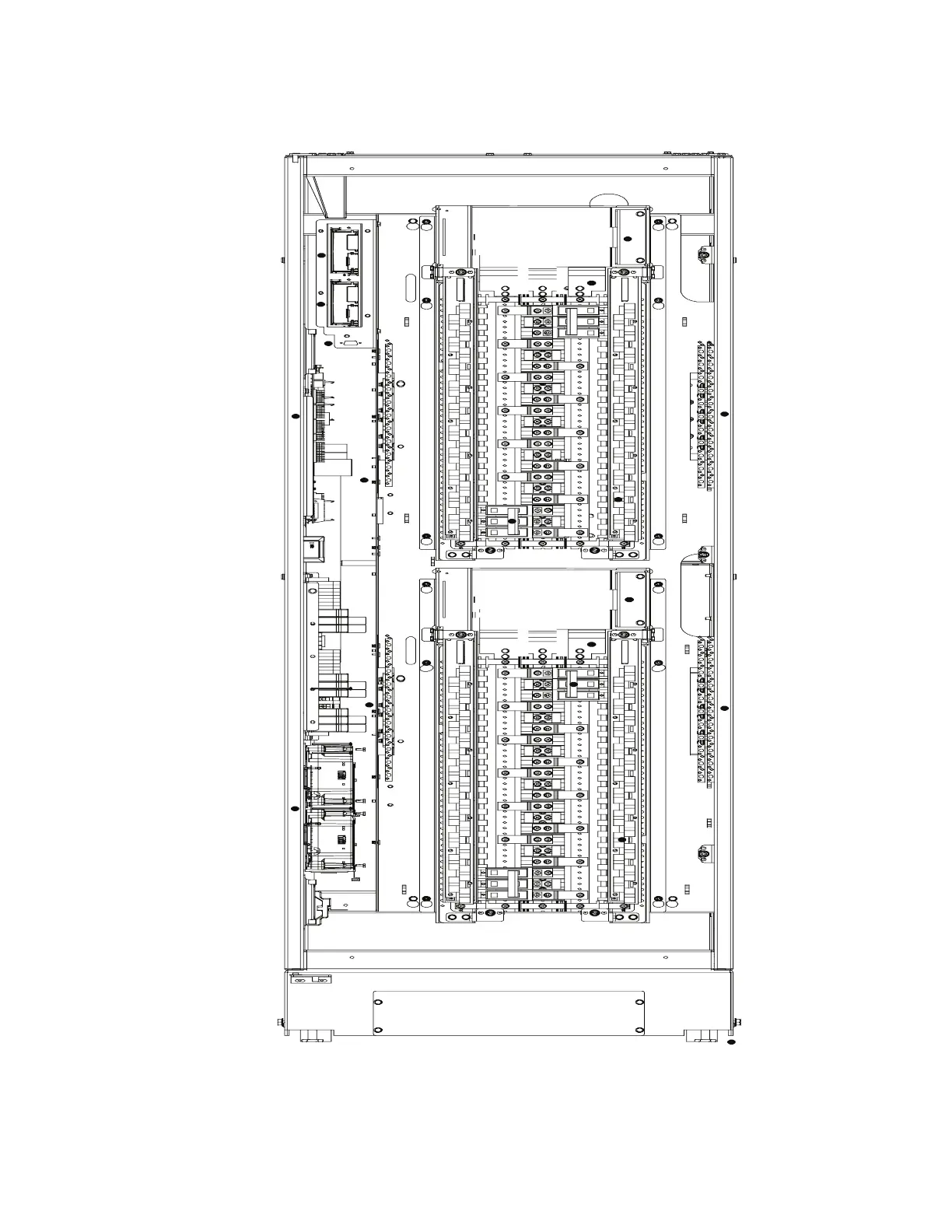

Figure 5. RPP Layout
UCB
X-Slot Communication Bay 1
DB-9 Communication Port
Output Ground
Branch Circuit Breakers
Current Transformers (CTs) (left
and right strips)
Current Transformers (CTs) (left
and right strips)
Casters and Leveling Feet
X-Slot Communication Bay 2
Output Ground
Output Neutral
42-Circuit Distribution Panel
Distribution Panel Breaker
Optional SPD
Branch Circuit Breakers
Distribution Panel Breaker
42-Circuit Distribution Panel
Output Neutral

Eaton Remote Power Panel Specifications

General

Brand	Eaton
Model	Remote Power Panel
Category	Power distribution unit
Language	English
