M3 Vital Signs Monitor Service Manual
- 30 -

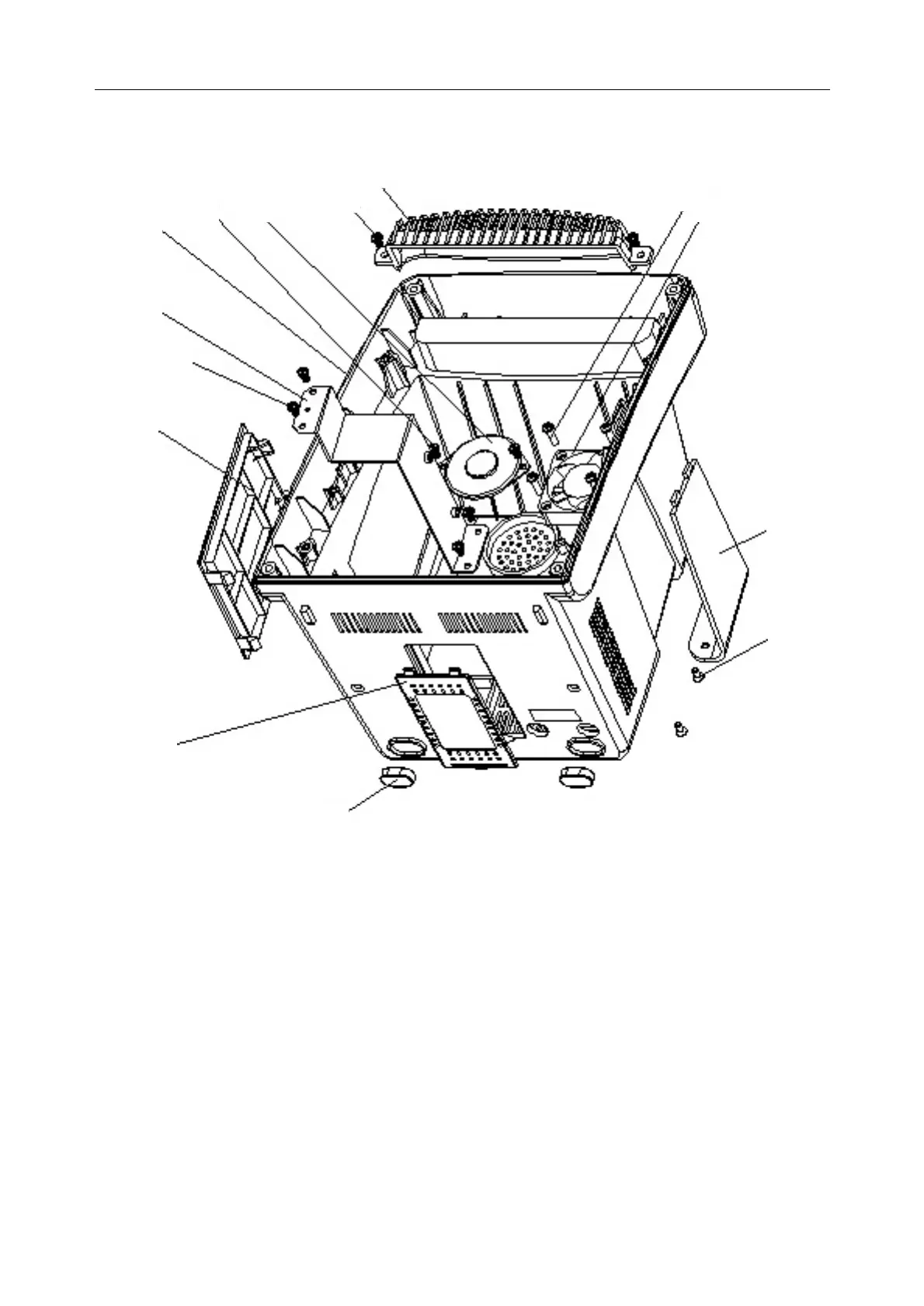

5.3 Rear Shuck Assembly
1: M3 rear shuck rubber feet; 2: M3 battery compartment cover; 3: M3 recorder slot
cover; 4, 9: Cross recessed pan head self-tapping screw ST3×8; 5: M3 recorder bracket;
6: M3 Rear shuck; 7: Cross recessed pan head self-tapping screw ST2.6×6; 8: Speaker;
10: M3 pull hand; 11: Cross recessed pan head screw M3×12 stainless steel; 12: Fan;
13: M3 accessory cover; 14: Cross recessed countersunk head screw M3×6.
Figure5-3 Rear shuck assembly
5.4 Bracket Assembly
1
2
3
4
5
6
7 8
9 11
12
13
14
10
-
